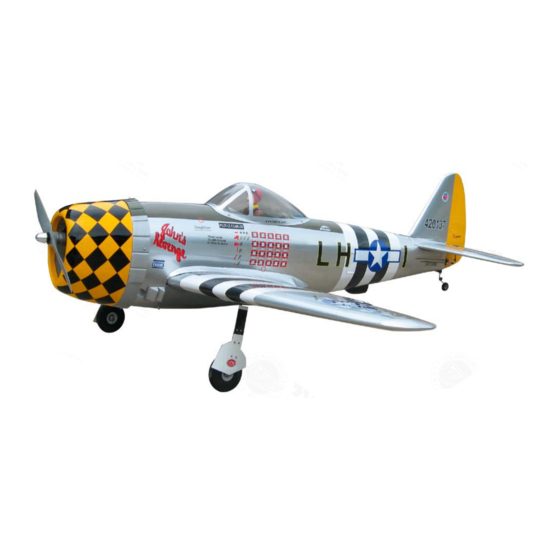

P-47D THUNDERBOLT
1.20 cu. in. displacement 4-stroke
Requires: 6-channel radio w/ 7 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this
kind of engine powered precision model. Operating this model without prior preparation may
cause injuries. Remember, safety is the most important thing. Always keep this instruction
manual at hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A213PO25911108
and 2 low profile retract servos
Specifications
*Specifications are subject to change without notice.*
70 in / 1780 mm
893 sq in / 56.7 sq dm
10.7 Ibs / 4850 g
67 in / 1580 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Related Manuals for THE WORLD MODELS P-47D THUNDERBOLT
Summary of Contents for THE WORLD MODELS P-47D THUNDERBOLT
- Page 1 INSTRUCTION MANUAL P-47D THUNDERBOLT 1.20 cu. in. displacement 4-stroke Requires: 6-channel radio w/ 7 standard servos and 2 low profile retract servos Specifications Wing Span 70 in / 1780 mm Wing Area 893 sq in / 56.7 sq dm Flying Weight 10.7 Ibs / 4850 g...
- Page 2 P-47D THUNDERBOLT I N D E X BEFORE YOU BEGIN P. 1 P. 2 PARTS LIST ASSEMBLY P.3-P.12 SAFETY PRECAUTIONS P.13 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do.
- Page 3 Parts List 12. FUEL TANK 450cc PL1111450 -- 1 set 1. MAIN WING -- 1 pair CABLE TIE (For Fuel Tank) 1.5x5x400mm -- 1 pc. DOUBLE-SIDED TAPE 40x120mm -- 1 pc. 2. RETRACTABLE LANDING GEAR -- 1 pair MAIN WHEEL PL3112090 Ø90mm -- 2 pcs 13.
- Page 4 Main Wing Pre-glued Aileron Servo Lead Flap Servo Lead Bottom View Retractable Landing Gear PM2x6mm Screw d2xD5mm M2 Nut Washer M2 Nut d2xD5mm Washer PM2x6mm d2xD5mm Washer d2xD5mm M2 Nut Washer Bottom View Please dry fit wing joiner into left and right wing to make sure they fit with the Main Wing proper dihedral angle, mark the wing joiner if necessary.
- Page 5 Flap & Aileron Servo PWA2x8mm Fuel Tube Straper 6x5mm Ø PB2x18mm Screw Ø1mm pilot holes for World Models tri-horn are pre-drilled. PB2x20mm Screw Please look for pin-hole marks Screw at under side of control surfaces. PWA2x8mm 1.5mm Pushrod PB2x20mm Ø1.8x115mm Bottom View PB2x18mm Pushrod...
- Page 6 Stabilizer & Elevator Pre-glued (Stabi l i zer) (Mai n Wi ng) B=B' A=A' Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible Completed Vertical Fin & Rudder Pre-glued C=C' Completed...
- Page 7 Tail Landing Gear PA3x12mm Screw PA3x12mm 2.6mm Collar 1.5mm 2.6mm Collar 3mm Set Screw 3mm Set Screw Bottom View Elevator Pushrod Ø1m m pilot holes for Wor ld Models tr i-hor n ar e pr e-dr illed. Please look for pin-hole m ar ks at under side of contr ol sur faces. PB2x25mm Screw PB2x25mm Clevis...
- Page 8 Engine Mount Dowel Ø7.2x9mm M6x18mm Blind Nut M6x30mm Socket Head Screw d6xD15mm Washer d6xD15mm Washer Socket Head Screw M6x18mm Blind Nut M6x30mm Apply thread locker to screws Engine Mount Blind nuts are off-centered to keep PL5911120 the spinner at the fuselage axis. A: Inverted mount with Pitts type muffler.
- Page 9 Servo Set 3x 3mm Set Screw 3x3mm Set Screw Throttle Pushwire Linkage Connector M2 Nut Washer 2mm Washer Washer 1.5mm Throttle Servo M2 Nut Please refer to the attached sheet for linkage connector installation. Engine Installed Engine Position M4x35mm Socket Head Screw 152mm 5.98in KM3x20mm Screw...
- Page 10 Radio Equipment Install and arrange the servo as shown in the diagram. Elevator Pushrod Ø1.8x100mm J1(Pushrod Ø1.8x100mm) Pushrod Connector M2 Nut J2(Pushrod Ø1.8x935mm) Elevator Servo KM2x8mm Rudder Servo Charge Receptacles Balsa KP0041300 Elevator Servo 8x8x67mm Straper Rudder Pushrod Fuel Tube Ø1.8x1025mm Ø6x5mm Plywood...
- Page 11 Air Scoop & Exits Super Charger Exit Air Scoop Bottom View Super Charger Exit Intercooler Air Exit Intercooler Air Exit Bottom View Canopy First insert the grommet to the canopy then apply screw. Screw PWA2.3x8mm d1.5xD6.5mm Silicon Grommet Pilot Apply double-sided tape Silicom Grommet PWA2.3x8mm...
- Page 12 Cowling Please refer to the attached sheet for usage of the transparent 3D template. PWA2.6x12mm Screw KA2.3x8mm Screw Cowling Bracket PWA2.6x12mm d2xD8mm Quick Release Nylon Rivet KA2.3x8mm Oil Cooler Shutter Spinner Nut Ø25mm Quick Release Nylon Rivet HW2340001 d2xD8mm Cowling PWA2.6x12mm Cowling Bracket Bottom View...
- Page 13 Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 18mm 18mm Rudder 25mm 25mm Flaps (near fuselage ) 35mm Ailerons ( away from fuselage ) 12mm 12mm C.G.
- Page 14 Pre - flig h t ad ju stm en t m u st b e d o n e b efo re flyin g , it is very d an g ero u s to fly a b ad ly p re - ad ju sted aircraft. P-47D THUNDERBOLT is specially designed to be powered by 1.20 4-stroke glow engine, using a more powerful engine does not mean better performance. In fact, over powered engine may cause severe damage and injuries.
- Page 15 When Flaps are lowered, nose of model will rise. The nose-up varies with the speed at which the model is flying when you lower the flaps and the extent to which they are lowered. Check effect of flaps at higher altitude to avoid surprises during landing. You may apply down trim of the elevator to compensate for the nose-up effect when lowering the flaps.
- Page 16 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 17 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
- Page 18 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 19 Optional Parts ACCESSORIES) 180mm Extension Fuel Filler Code No. Size Package Code No. Size Package KW0011800 PL8110030 180mm 1 set 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord Code No. Size Package KW0021800 180mm 1 pc Clevis Wrench Code No.
- Page 20 A213PO25911108...
