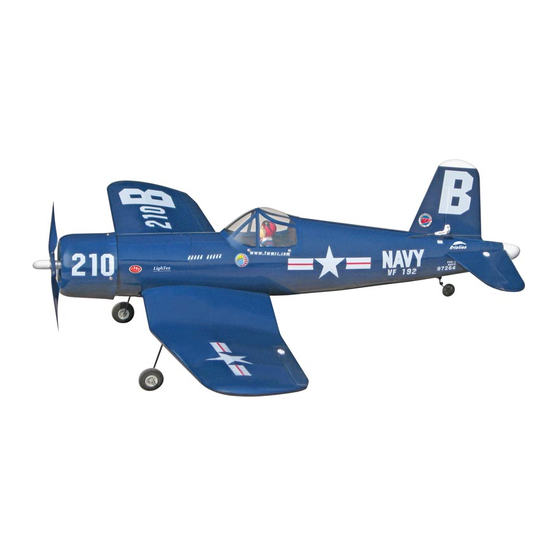

THE WORLD MODELS F4U CORSAIR EP Instruction Manual

Almost ready to fly plane
Hide thumbs Also See for F4U CORSAIR EP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
4
F
Requires : 5-channel radio w/ 5 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
E254RXMPO21781103
U CORSAIR EP
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100,
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
* Specifications are subject to change without notice.*
Specifications
39.5 in / 1000 mm
282 sq in / 18.2 sq dm
32 oz / 905 g
31.5 in / 800 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F4U CORSAIR EP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THE WORLD MODELS F4U CORSAIR EP

Summary of Contents for THE WORLD MODELS F4U CORSAIR EP

  • Page 1 Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. The World Models FACTORY PRE-FABRICATED Manufacturing Co., Ltd. ALMOST-READY-TO-FLY(ARF)SERIES MADE IN CHINA www.theworldmodels.com...

  • Page 2: Before You Begin

    U CORSAIR EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3 - 9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.

  • Page 3: Parts List

    Parts List 1. MAIN WING (Pre-installed 8. SCREW PM3x6mm -- 4 pcs w/ retractable landing gears of wheels)-- 1 pair SCREW M2.5x8mm -- 4 pcs WASHER d3xD7mm -- 8 pcs 2. SERVO MOUNTING PANEL -- 1 pair FOLDING PROPELLER SET (11x5) -- 1 set SCREW PB2x14mm -- 4 pcs COWLING -- 1 pc.
  • Page 4 Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Ø1mm pilot holes for World Models horn are pre-drilled. Aileron Servos Please look for pin-hole marks at under side of control surfaces. PB2x14mm Screw PA1.7x8mm Fuel Tube...
  • Page 5 Retract Servo & Retractable Landing Gear Aileron Servo Lead KA2.3x12mm Screw Covering Film 30x35mm 2.6mm Collar M3x3mm Set Screw Completed Bottom View Retract Servo Lead Wheel Ø40mm To R-Side KA2.3x12mm To L-Side M3x3mm Set Screw Wheels Down Position 11mm Travel 11mm Travel Retractable Landing Gear Pre-installed...

  • Page 6: Rudder Pushrod

    Vertical Fin, Rudder & Tail Landing Gear PA2x8mm Screw PA2x8mm Wheel Ø23mm Plastic Collar Apply instant type CA glue to both sides of each hinge. Bottom View C=C' Completed Ø1mm pilot holes for World Models horn are pre-drilled. Rudder Pushrod Please look for pin-hole marks at side of control surfaces.
  • Page 7 Outrunner Motor / Cowling / Spinner Make sure rotating motor M2.5x8mm Optional Parts Socket Head Screw casing is not in contact with wirings or anything. PWA2x8mm Screw Outrunner Motor 28/ 30 PM2x12mm Screw KM0283010 KP0011310 PM3x6mm Screw Propeller Adaptor d3xD7mm Washer (d3xD5) Solder Solder...

  • Page 8: Radio Equipment

    Radio Equipment Rudder Pushrod Straper Install and arrange Ø1.4x400mm Fuel Tube Front the servos as shown Elevator Pushrod Rudder Servo d2xD4x4mm Ø1.4x420mm in the diagram. TWM PL8210010 CLEVIS WRENCH Elevator Pushrod Ø1.4x50mm Elevator Servo Sponge Receiver Battery Bottom View KA1.7x5mm Front J1(Pushrod Battery...
  • Page 9 Main Wing PM2.5x25mm Screw d2.5xD8mm Washer 2.5mm Bottom View PM2.5x25mm d2.5xD8mm Washer Canopy Pilot PWA2x8mm Screw 1.2mm PWA2x8mm Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' D=D' E254RXMPO21781103...

  • Page 10: Control Throws

    # First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. F4U CORSAIR EP is specially designed to be powered by KM0283010 Outrunner Motor.

  • Page 11: Optional Parts

    Optional Parts ACCESSORIES) 3 - Pin EZ Connector 2 - Pin EZ Connector Code No. Size Package Code No. Size Package KP0011310 40A Max. Current 1 set KP0011210 40A Max. Current 1 set -ideal for electric models -ideal for electric models Propeller Adaptor Wrench Propeller Adaptor Code No.
  • Page 12 The World Models Manufacturing Co., Ltd. www.theworldmodels.com E254RXMPO21781103...
