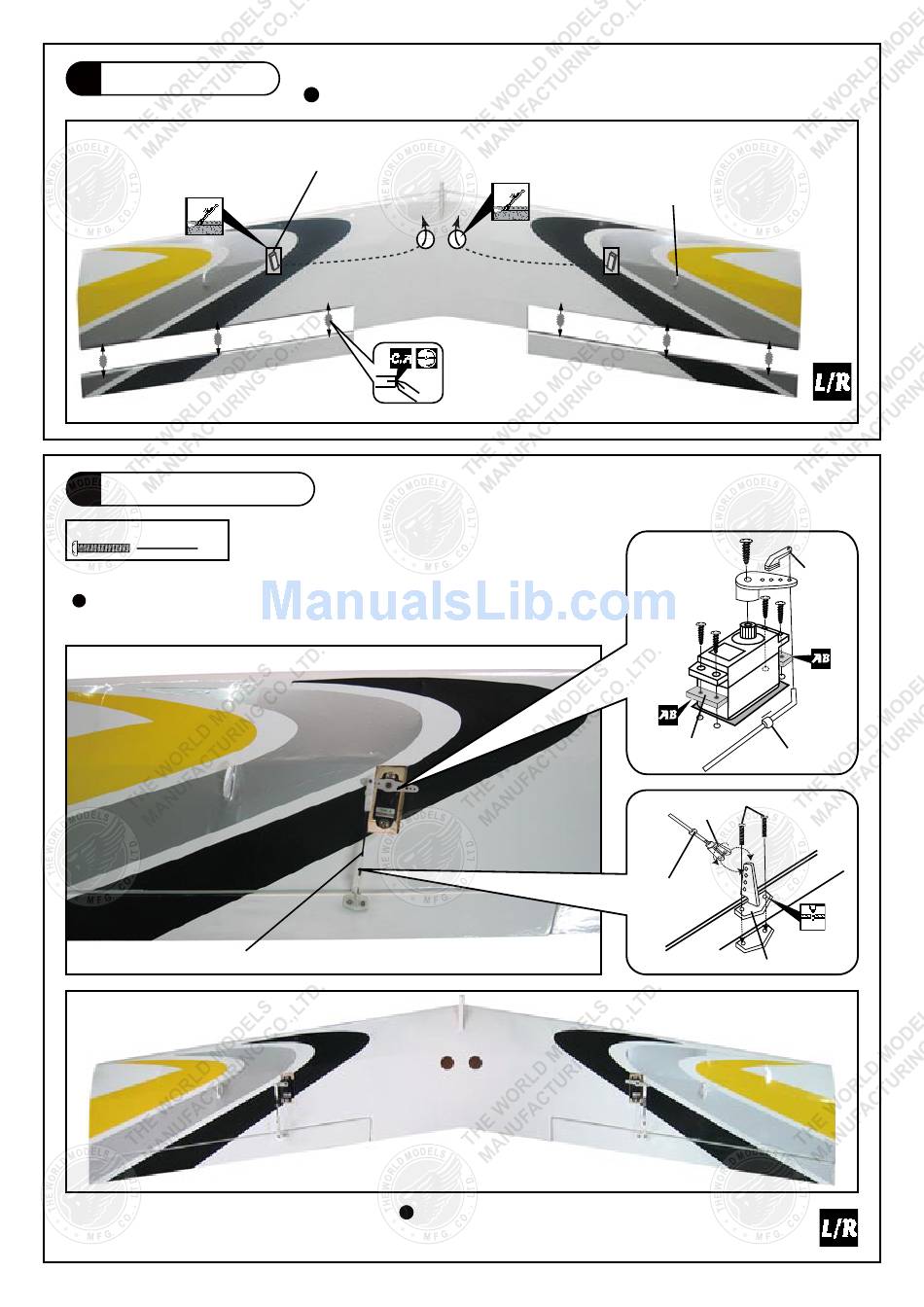

Aileron Servo - THE WORLD MODELS Ultimate EP Instruction Manual

1
Main Wing
(Lower)
Aileron Servo Lead
2

Aileron Servo

PM2x12mm Screw
4
Ø1mm pilot holes for World Models tri-horn are pre-drilled.
Please look for pin-hole marks at side of control surfaces.
Pushrod Ø 1.4x75mm
Apply instant type CA glue to both sides of each hinge.
(Lower)
Completed
P.3
Cabane Mount
PLYWOOD
3x6x15mm
Fuel Tube
d2xD4x4mm
PM2x12mm
Clevis
Fuel Tube
d2xD4x4mm
Horn
Straper
2mm
