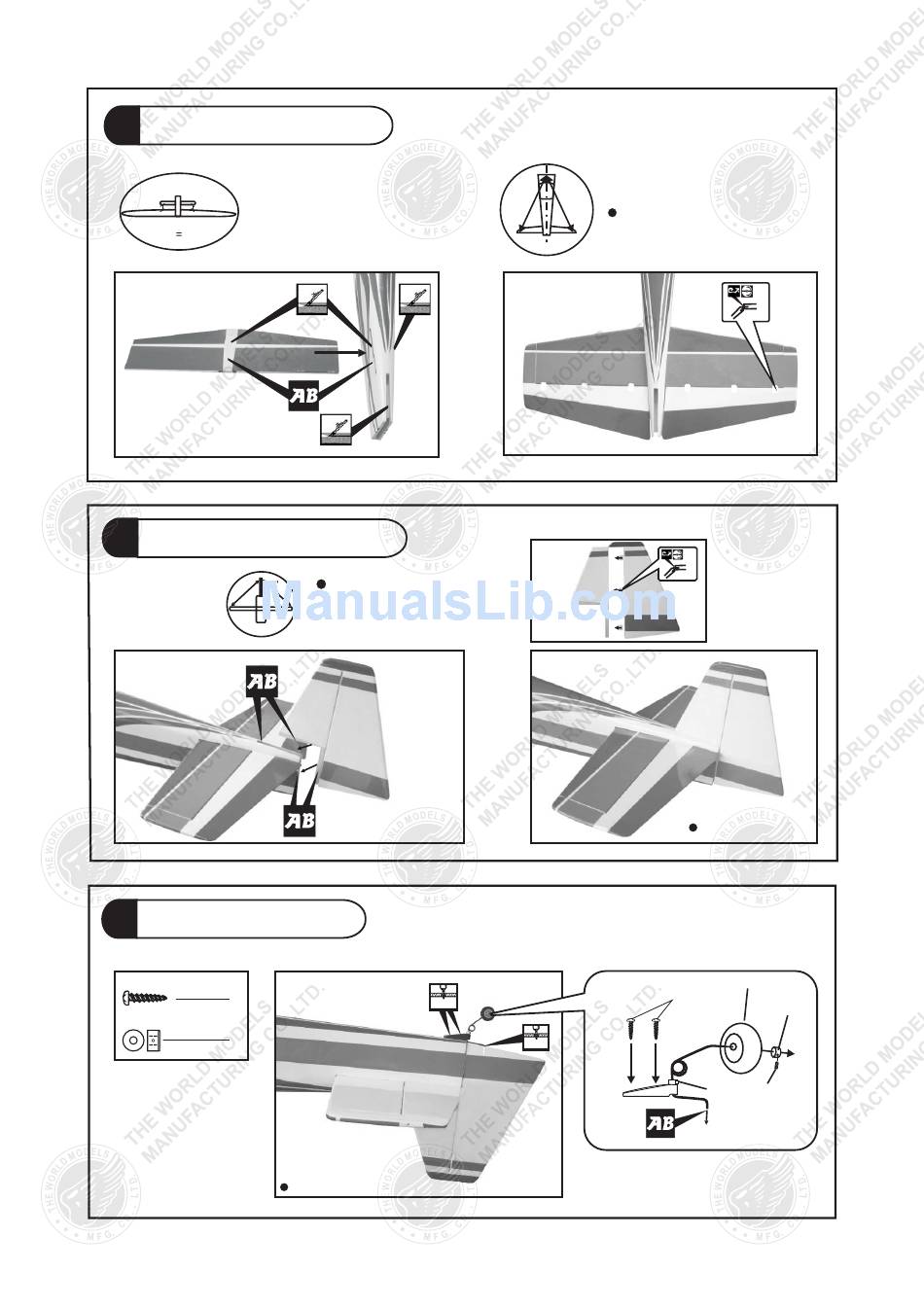

Tail Landing Gear - THE WORLD MODELS CAP 232-46S Instruction Manual

4 Stabilizer / Elevator
(Stabilizer)
Temporary install the main wing, adjust
B B'
leveling of the stabilizer to make it as
(Main Wing) parallel to the main wing as possible.
B B'
*Also refer to step 18 Wing Setting
5 Vertical Fin & Rudder
C
C
C=C'
6

Tail Landing Gear

Screw
PA3 x 12mm
2
Collar
2.1mm
1
Apply instant type
CA glue to both
sides of each hinge.
1.5mm
Bottom View
P.4
A A'
Apply instant type CA glue to
both sides of each hinge.
A=A'
PA3 x 12mm
2.5mm
Completed
WHEEL 23mm Ø
2.1mm Collar
3 x 3mm Set Screw
