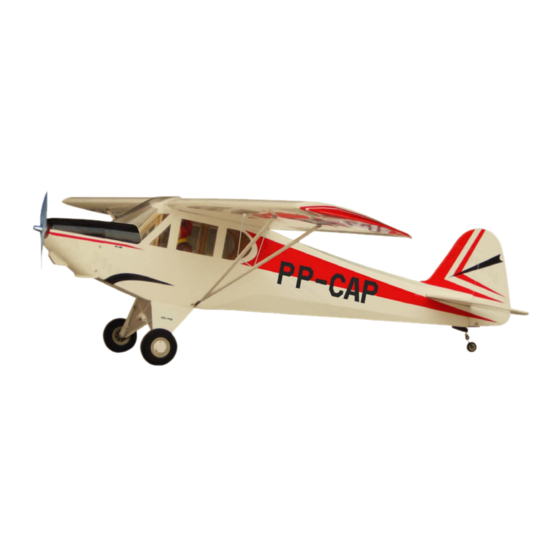

PAULISTINHA P-56
Requires: 0.40-0.46 cu. in. displacement 2-stroke
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A321PO26781107
0.52-0.56 cu. in. displacement 4-stroke
4 - channel radio w/ 5 standard servos
* Specifications are subject to change without notice.*
Specifications
71.0 in / 1800 mm
698 sq in / 45.0 sq dm
5.5 lbs / 2500 g
47.0 in / 1200 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS PAULISTINHA P-56
Summary of Contents for THE WORLD MODELS PAULISTINHA P-56
- Page 1 INSTRUCTION MANUAL PAULISTINHA P-56 Requires: 0.40-0.46 cu. in. displacement 2-stroke 0.52-0.56 cu. in. displacement 4-stroke 4 - channel radio w/ 5 standard servos Specifications Wing Span 71.0 in / 1800 mm 698 sq in / 45.0 sq dm Wing Area 5.5 lbs / 2500 g...
-
Page 2: Before You Begin
PAULISTINHA P-56 INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3 - 11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. - Page 3 Parts List 1. MAIN WING -- 1 pair MAIN LANDING GEAR -- 1 set MOUNTING PLATE 12x20mm -- 4 pcs 2. SCREW PWA2x8mm -- 8 pcs PLYWOOD 2x52x80mm (For Aileron Servo) -- 1 pair 12. SCREW PA1.7x8mm -- 6 pcs BALSA 8x18x21mm (For Aileron Servo) -- 4 pcs MAIN WHEEL PL3112080 -- 2 sets COLLAR Ø3.3mm w/ set screw -- 4 sets...
-
Page 4: Aileron Servo
Plywood 2x52x80mm Bottom View Ø1mm pilot holes for The World Models tri-horn are pre-drilled. Aileron Servo Please look for pin-hole marks at under side of control surfaces. PB2x18mm Clevis PB2x18mm Screw... -
Page 5: Wing Struts
Main Wing Ø9.6x267mm Plywood 2x30x120mm Join the wing halves by using the aluminium tube supplied Strengthen both holes for the screws with a piece of plywood. Wing Struts 95mm 95mm 189mm 189mm M3x18mm Socket Head Screw 286.5mm PM2x12mm Screw PM2x12mm d2xD5mm Washer M3x18mm PWA2X8mm Screw... -
Page 6: Tail Landing Gear
Tail Landing Gear PA3x12mm Screw 3mm Set Screw 2.1mm Collar PM2x12mm Screw M2 Nut 3mm Set Screw PM2x12mm PA3x12mm Engine Mount M4x25mm Socket Head Screw d4.5xD9mm Washer Engine Mount PL5111050 M4x25mm Socket Head Screw d4.5xD9mm Washer Engine Lead the 1.2mm throttle rod through the plastic tube and attach the throttle rod to the throttle lever on the engine. -
Page 7: Main Landing Gear
Fuel Tank Cable Tie (For Fuel Tank) 1.5x5x400mm Double-sided Tape 40x100mm Cable Tie (For Fuel Tank) 1.5x5x400mm Completed Double-sided Tape 40x100mm Main Landing Gear M3x16mm PA3x8mm M3x16mm Socket Head Screw 3.1mm PA3x8mm Screw d3xD7mm Washer Aluminum Plate d3xD7mm Washer M3 NUT A321PO26781107... - Page 8 Main Landing Gear Copper Clipper M2 Nut 3mm Set Screw 3.3mm w/set Collar d2xD5mm PA1.7X8mm Screw Washer 3.3mm w/set Collar PM2x8mm 2. 1 mm PM2x8mm Screw d2xD5mm Washer M2 Nut d2xD5mm Washer PA1.7X8mm PM2x8mm Canopy Securely glue the windows to the fuselage. PWA2.3x8mm Screw d1.5x6.5mm Silicon Grommet d1.5x6.5mm...
-
Page 9: Radio Equipment
Ru d d er Pu s h r o d Rudder Servo Ø1.8x 735m m Ø1mm pilot holes for The World Models tri-horn Rudder & Elevator Pushrod are pre-drilled. Please look for pin-hole marks at under side of control surfaces. - Page 10 PC001063B Cockpit PWA2x8mm Screw PWA2x8mm Balsa 3x45x112mm 1.5mm Balsa 6x8x45mm Main Wing / Wing Struts HM4x30mm M3 Nylon Insert Lock Nut Socket Head Screw d4xD15mm Washer HM3x10mm HM4x30mm Socket Head Screw d4xD15mm Washer M3 Nylon Insert Lock Nut HM3x10mm A321PO26781107...
- Page 11 Wing Setting A’ B’ C’ Securely attach the main wing A=A’ B=B’ C=C’ A321PO26781107 P.10...
-
Page 12: Control Throws
# Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. PAULISTINHA P-56 is specially designed to be powered by 2C 0.40-0.46 or 4C 0.52-0.56 engine, using a more powerful engine does not mean better performance. In fact, over powered engine may cause severe damage and injuries. - Page 13 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 15 180mm Extension Fuel Filter Package Package Code No. Size Code No. Size Package Code No. Size Package Code No. Size Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small Package Code No. (EP)clevis. Size KP0041300 Code No SV4031 Package Code No.
- Page 16 The World Models Manufacturing Co., Ltd. www.theworldmodels.com A321PO26781107...
