Chapter 3 Getting Started

Basic installation describes all the equipments required to program and operate the GV-Mini

DVR V2.

1. Using the RJ-45 cable, connect one end to either of Ethernet ports and the other end to

Network.

2. Using the supplied D-type audio cables, connect to audio sources.

3. Connect the mouse to the PS/2 input.

4. Connect the keyboard to the PS/2 input.

5. Using the VGA cable supplied by the monitor manufacturer, connect the VGA monitor.

6. For video lost beep, connect Speakers to the Audio Line Out port.

7. Using the supplied D-type video cables, connect to video sources.

8. Using the supplied power cord, connect one end to the AC input and the other end to the

power outlet.

Note: The monitor you use must be capable of having a screen resolution of 1280 x 1024 and

display color of 32 bits.

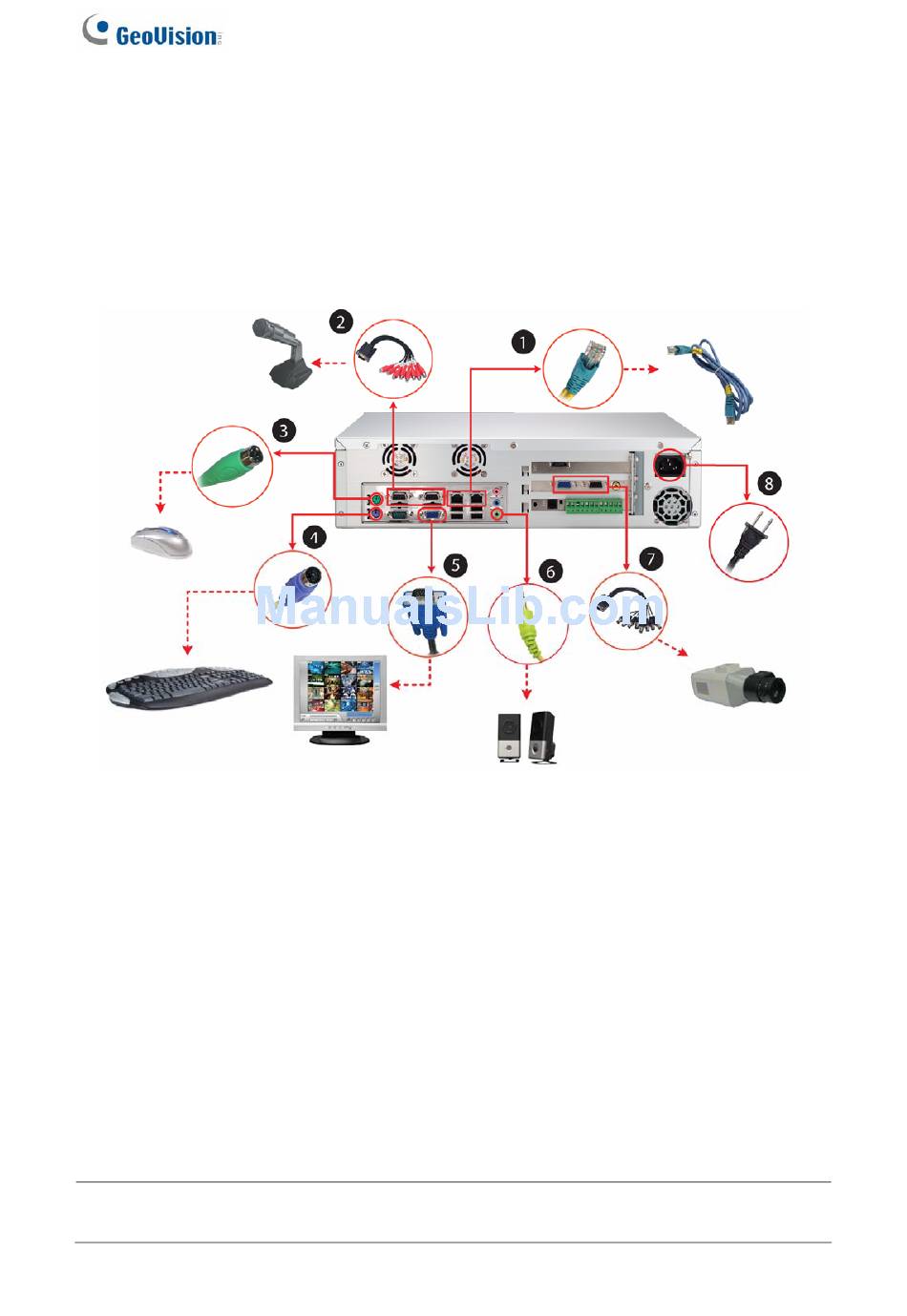

Figure 4
