Chapter 2 Overview

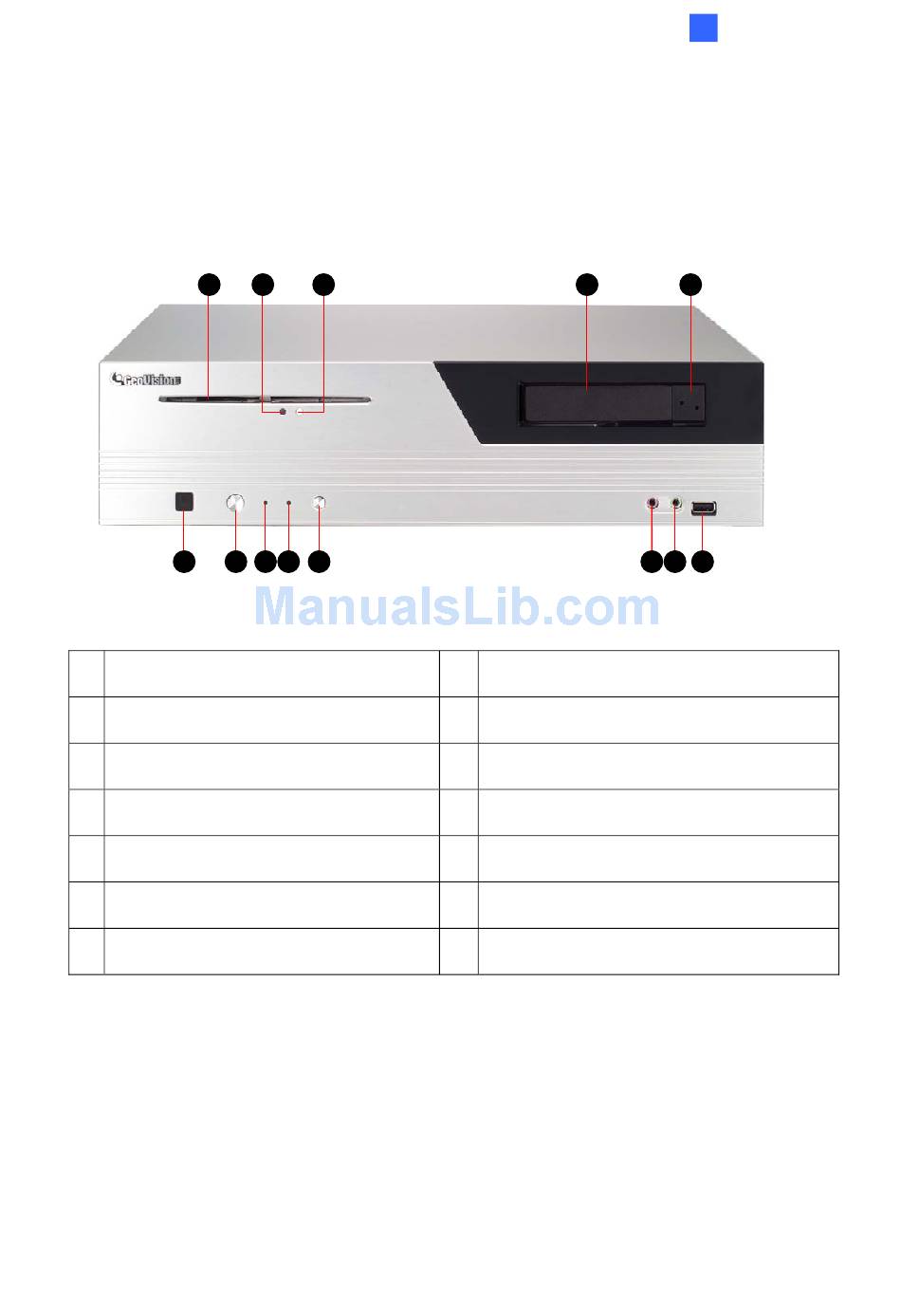

2.1 Front View

1
13 12
1 DVD-ROM Drive
2 DVD-ROM Drive Read LED
3 DVD-ROM Drive Eject Button
4 Hot Swap Drive Bay
5 Hot Swap Drive Eject Button
6 USB Port
7 Speaker
2 3
11 10 9
Figure 1
4
8 Microphone
9 Reset Button
10 HDD Read / Write LED
11 Power LED
12 Power Button
13 IR Remote Control Receiver
