2.2 Rear View

GV-2008M V2 / GV-2004M V2 / GV-1480M V2 / GV-1240M V2 / GV-1120M V2
Important: On the rear panels of GV-2004M V2 and GV-2008M V2, the D-Type Audio Ports
(No.3, Figure 2) are not functional.
1 PS/2 Mouse Input
2 PS/2 Keyboard Input
3 D-Type Audio Port x 2
4 COM 1
5 VGA Monitor Output
6 Ethernet Port x 2
7 USB Port x 4
8 Audio Microphone In Port
12

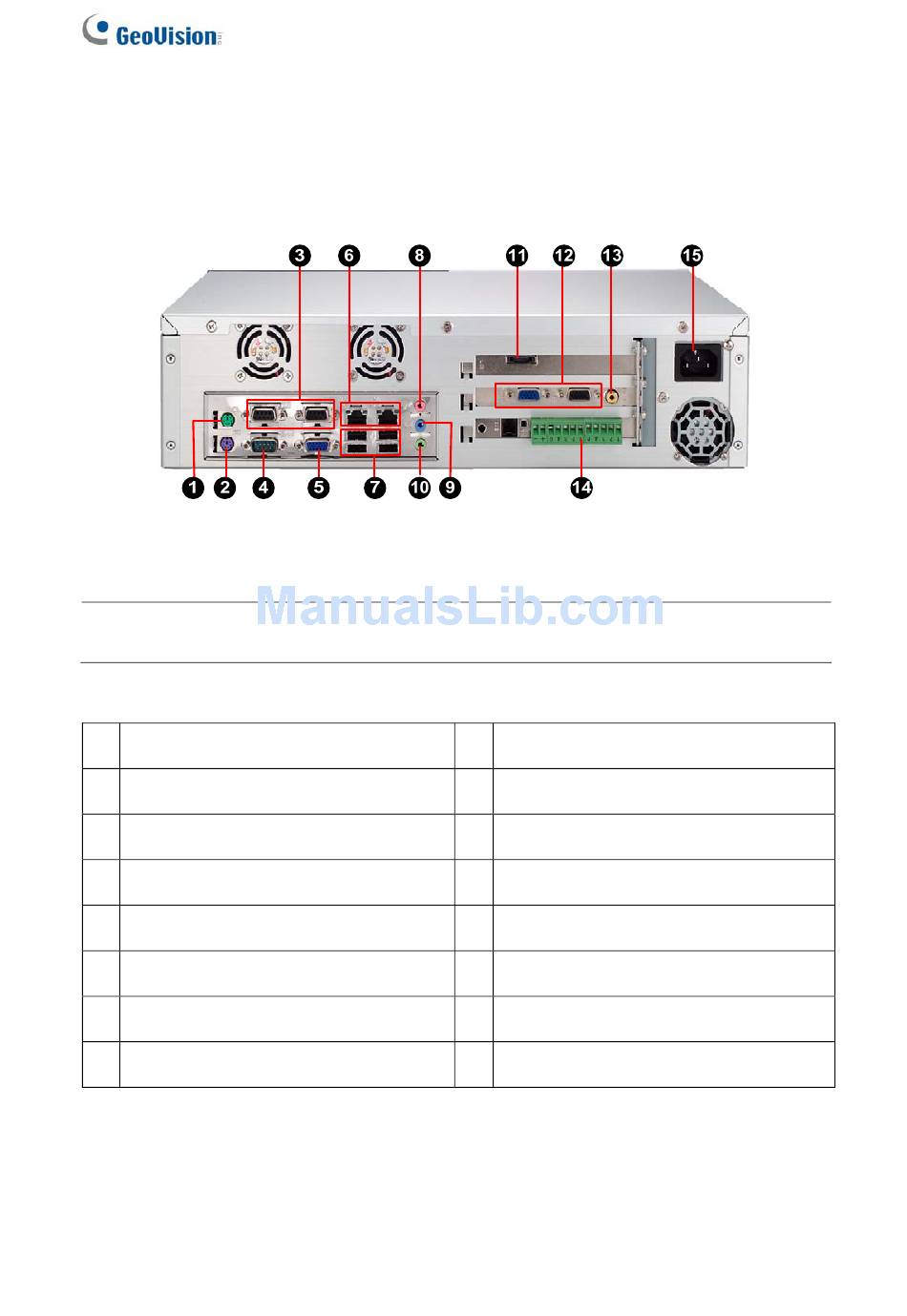

Figure 2
9 Audio Line In Port
10 Audio Line Out Port
11 eSATA Connector
12 D-Type Video Port x 2
13 RCA TV Output
14 GV-Net I/O Card (option for change)
15 AC Power Input (full range)
