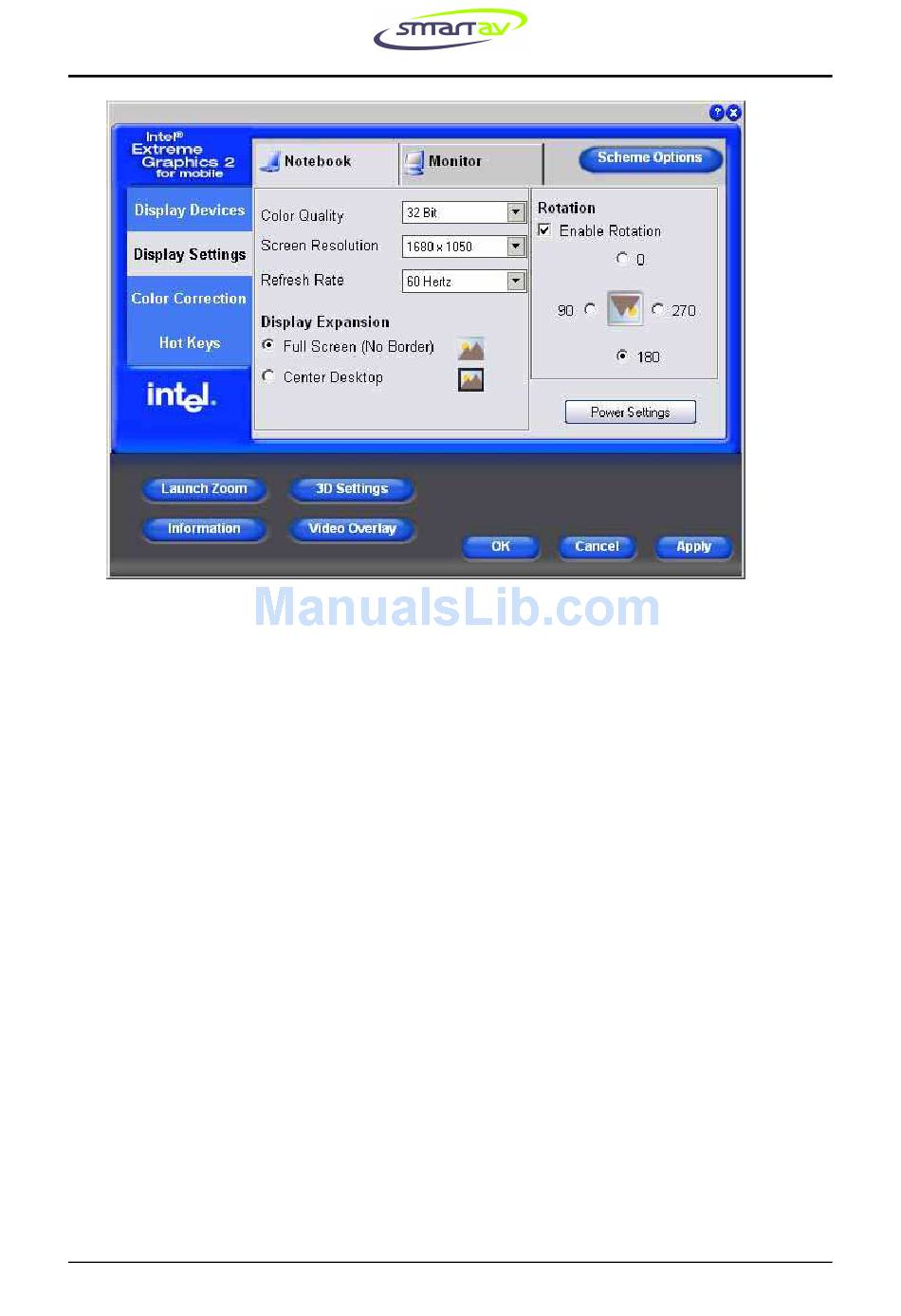

• If you need to change any settings click on the "Apply" button when you
are done and then click "OK" to confirm the new settings. Again, if you
make a mistake and the display goes blank or to an unsupported
resolution where you can't see anything, don't click "OK" to confirm and
it will revert to the original settings after 15 seconds so please wait.
• If you have an extension bay connected to the DVI output, click the other
tab and make sure the settings for this display are the same.
NOTE: If the display on your console is blank (as a result of incorrect
adjustments or for some other reason) you should try pressing CNTRL + ALT
+ F3 on your keyboard and wait a few seconds. The monitor should come
back on and then you can proceed through these steps again with the correct
settings. This key press switches the Primary Monitor back to Notepad. If
this fails you will need to open the console and connect a VGA monitor to
proceed.
At this point you display should be functioning correctly again. If you were
unable to select the correct resolution (1680 X 1050) in the steps above you need
to check the following Windows settings.
• On the keyboard, press the "Windows" key and then select "Control
Panel" from the start menu.
• From the control panel, select "Display".
• Select the "Settings" tab and click the "Advanced" button.
