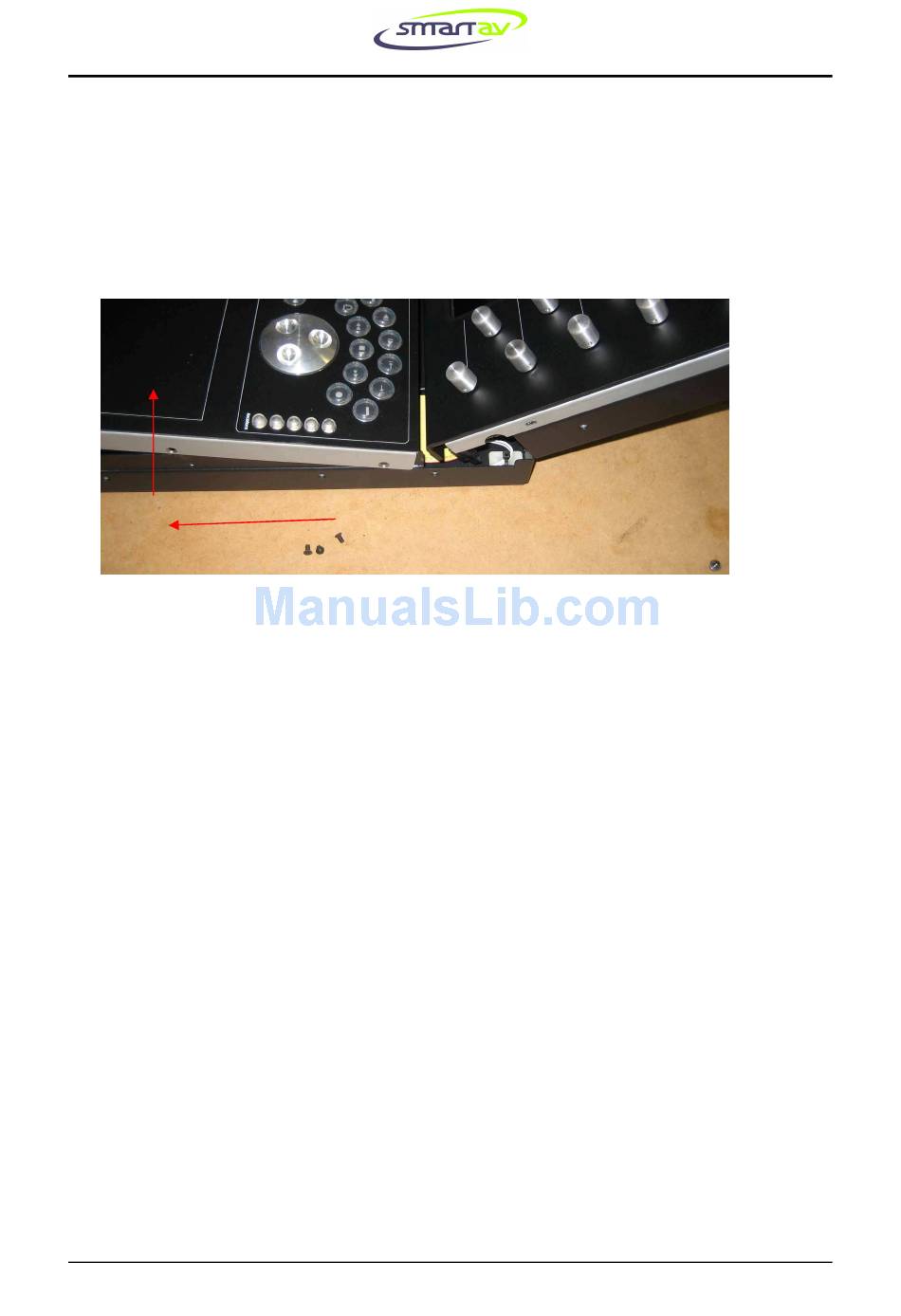

• Carefully open the lower module from the front edge. The best approach
is to hinge the module open like a car bonnet by holding onto the bolster.
NOTE: Take extra care with this step so that the acrylic lenses are not
damaged at the point where the 2 modules meet. The best way is to slide the
module forward first and then lift the front edge once it is clear of the lower
module.
Lift
You now have access to the components of the lower module. You may be able
to services some components by having an assistant hold the lower module open
while you work within the console. If you wish to remove the module
completely, proceed as follows, taking careful note of the various connections as
this will help with re-assembly.
• Remove the ENET cable from the lower module.
• Disconnect the Lower Module Power cable (inline 4 pin connector).
th
14 Oct 2009
Slide Forward
