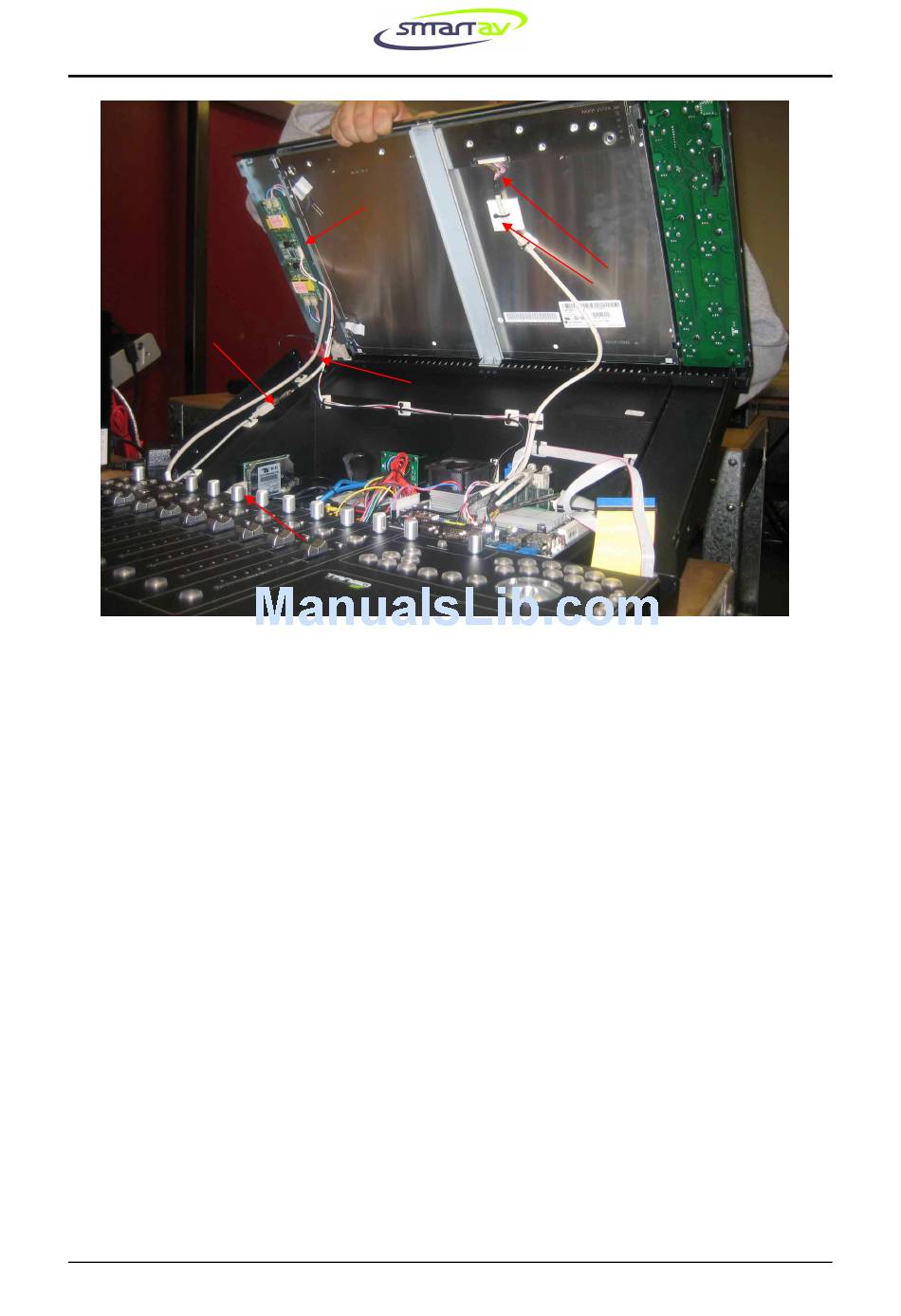

Upper USB
Cable
You now have access to all the major components inside the console. You may
be able to services some components by having an assistant hold the upper
module open while you work within the console. If you wish to remove the
module completely, proceed as follows, taking careful note of the various
connections as this will help with re-assembly.
• Remove the LVDS cable from the monitor. You will need to cut the cable
tie that is securing this cable.
• Remove the Inverter cable from the inverter PCB.
• Remove the Touch Screen cable from the touch controller module.
• Disconnect the upper USB cable.
• Remove Power Switch cable by disconnecting the spade terminals from
the main power switch.
• Lift the upper module clear of the console.
To re-assemble the upper module into the console, proceed as follows.
•
Re-connect all 5 cables. Note there is no polarity for the Power Switch
cable and that the metallic surface of the LVDS connector should be facing
the LCD monitor (the polarity of this connection is difficult to see).
•
Carefully lift the upper module back into position.
th
14 Oct 2009
Inverter
Cable
Power Switch
Cable
Touch Screen
Cable
Tango Smart Console™ Service Manual
LVDS Cable +
Cable Tie
