Replace the 3 x M3 screws in each side of the upper module but leave
these screws loose.
•
Adjust the height of the lower edge of the upper module so that the join
between the 2 modules looks neat. Generally this will require you to lift
the bottom edge of the module as high as the screw holes will allow.
•
Tighten the side screws, starting with the bottom screws on each side.
•
Replace the 5 x M3 screws under the top edge.
•
Re-connect the ribbon cable on the RHS of the console.
•
Replace the aluminium end panels.
8. OPENING THE CONSOLE – LOWER MODULE
WARNING:
The chassis of the Tango console has some flexibility when the top
modules are removed. You must service the console on a flat work
surface and take precautions to ensure the chassis is not excessively
twisted or stressed while disassembled. Failure to take these
precautions could result in damage to some of the internal
components.
The console lower module can be opened for servicing by following the steps
below. Care must be taken to ensure no damage is done to the black painted
surfaces or the acrylic lens material on the top surfaces. Both of these can be
easily scratched if not handled carefully.
• Ensure the console is powered off and all external connections are
removed from the console.
• Remove the aluminium end panels from both sides of the console. This is
done by removing the 6 x M6 CSK screws that secure each end panel.
th
14 Oct 2009

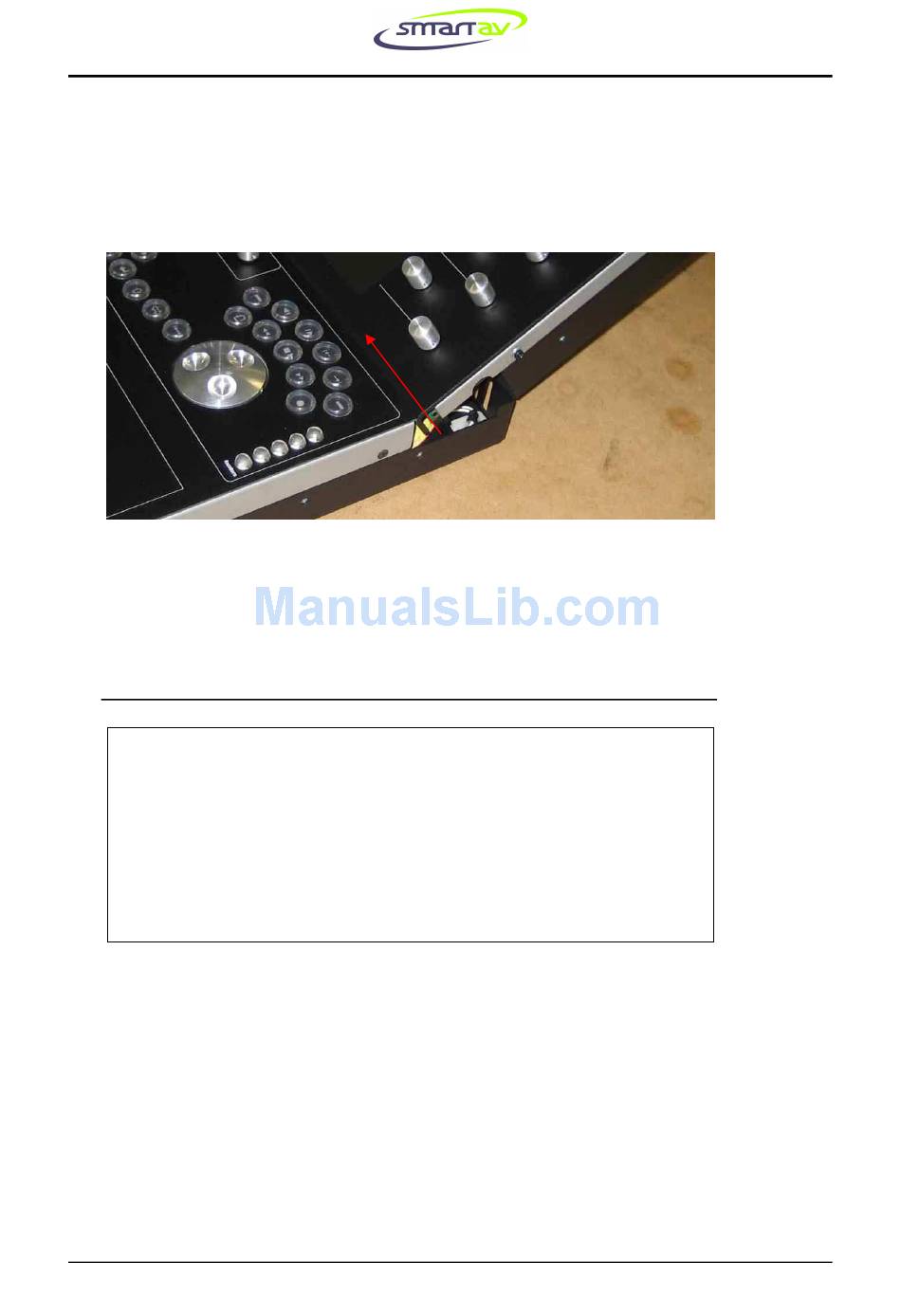

Lift In This Direction
