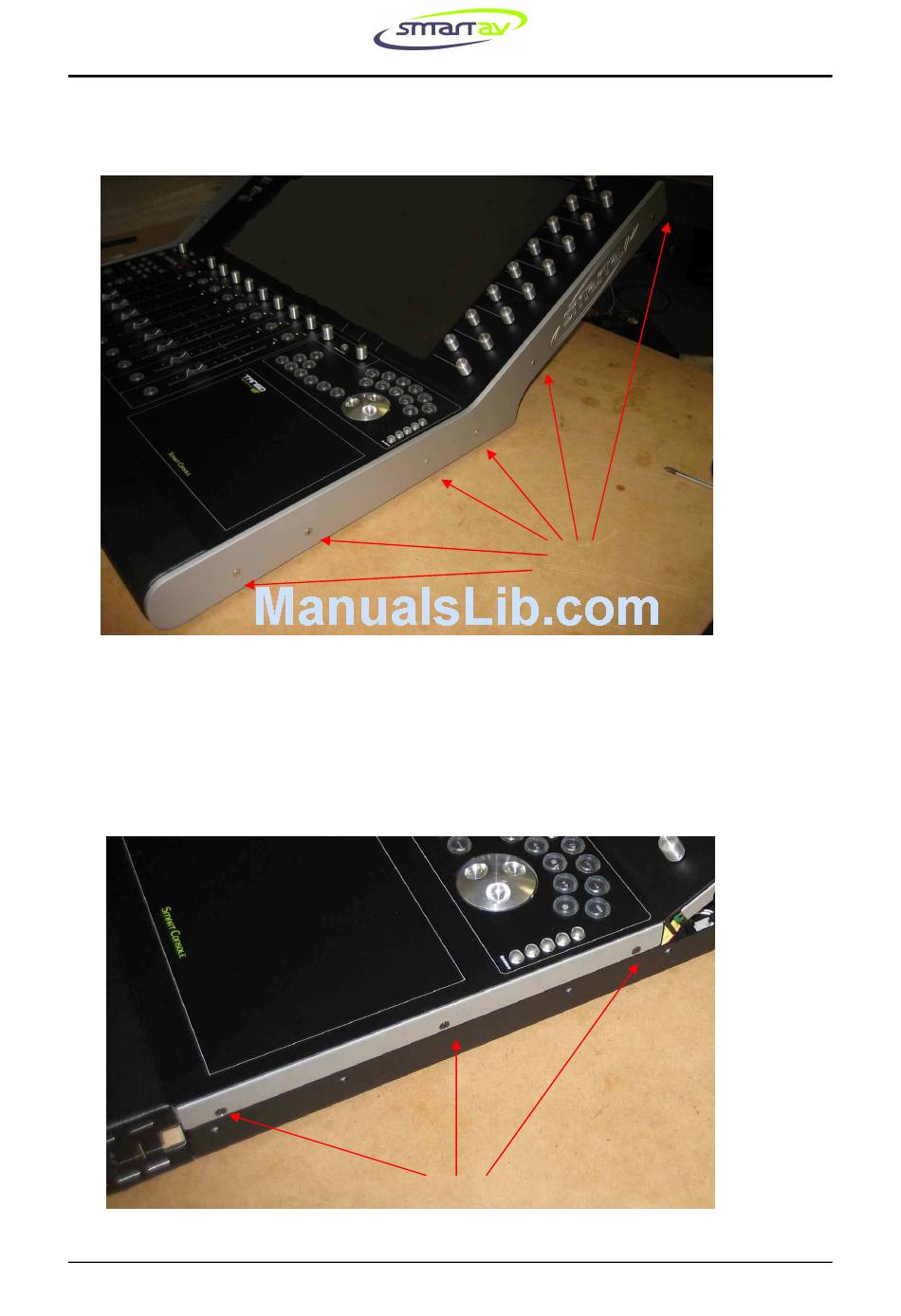

These screws require a 2.5mm Allen Key for removing them. The location
of these screws is shown below.
To open the lower module of the console, follow the steps below. Opening the
lower module provides access to the lower module components as well as the
network hub.
• Remove the 3 x M3 screws from each side of the lower module (see
below).
th
14 Oct 2009
Remove Screws (x5)
Tango Smart Console™ Service Manual
Remove Screws
(x6)
