To open the upper module of the console, follow the steps below. Opening the
upper module provides access to the upper module components as well as the
embedded PC, PSU, touch controller and HDD.
• Push back the locking ears on both sides of the connector to disconnect the
ribbon cable from the upper module on the RHS of the console.

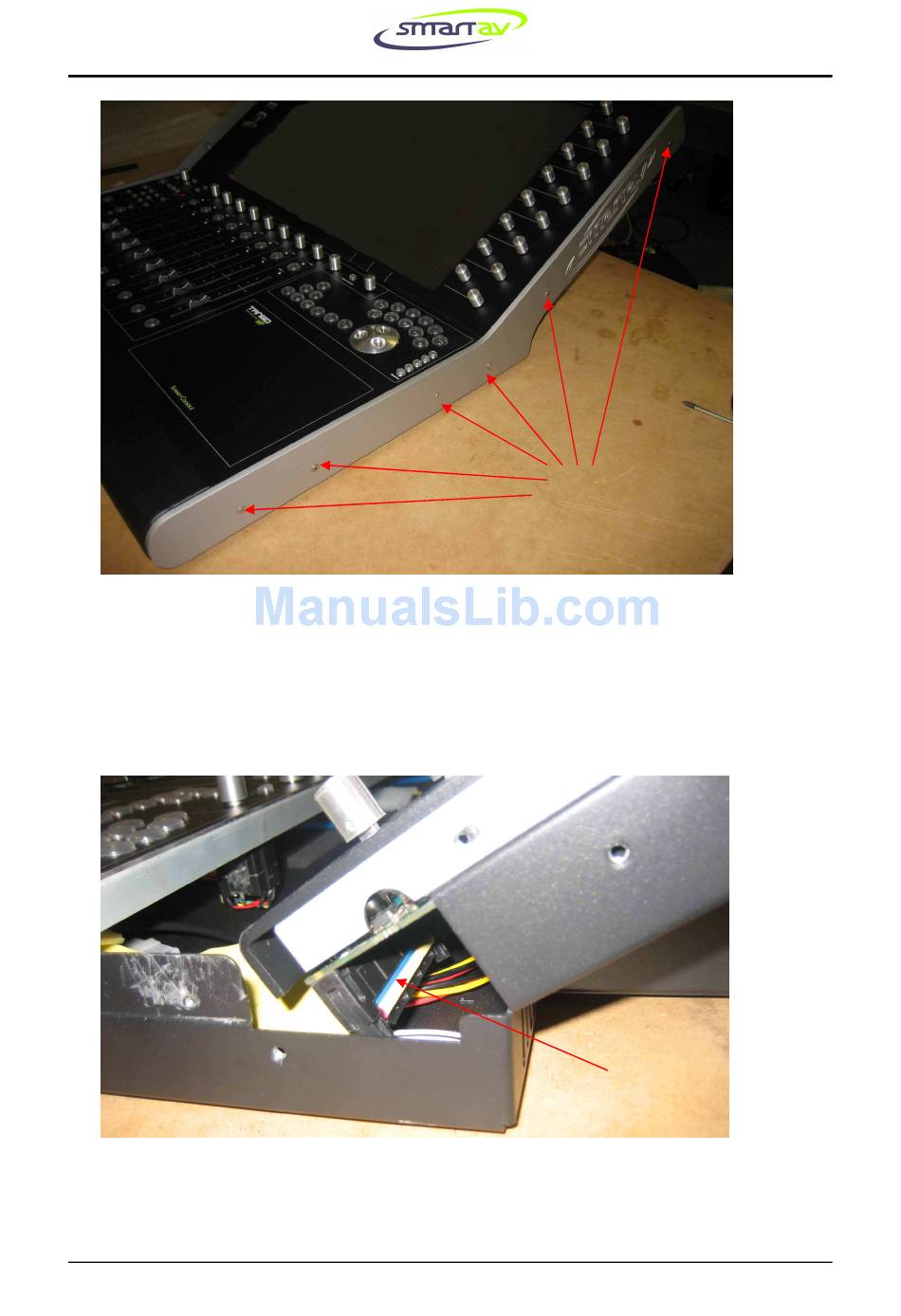

• Remove the 5 x M3 screws from under the top rear of the console. The
location of these screws is shown below.
th
14 Oct 2009
Tango Smart Console™ Service Manual
Remove Screws
(x6)
Remove Ribbon
Cable
