To re-assemble the lower module into the console, proceed as follows.
•
Re-connect the 2 cables.
•
Carefully lift the lower module back into position.
•
Replace the 3 x M3 screws in each side of the lower module.
•
Re-connect the ribbon cable on the RHS of the console.
•
Replace the aluminium end panels.
IMPORTANT:
On some early Tangos you may find the screw holes in the side of
the lower module do not easily align with their corresponding holes
in the chassis. It is important that you don't try and manhandle
the chassis to align these holes as you may risk twisting the chassis
excessively. To align the holes, place a scribe or small screwdriver
into 1 of the holes and "lever" it until the other holes on that side
line up and then fit the other 2 screws. Now repeat this procedure
on the other side of the console.
9.

UPPER MODULE DISSASSEMBLY (REPLACE LCD)

NOTE: The glass touchscreen is extremely fragile when it is not protected by
the metalwork of the console. Take extra care with the disassembly of this
module to ensure no damage is done to the glass panel or the fragile
transducers and wiring on the corners of the panel.
Once the upper module has been removed from the console it can be
disassembled as follows.
•

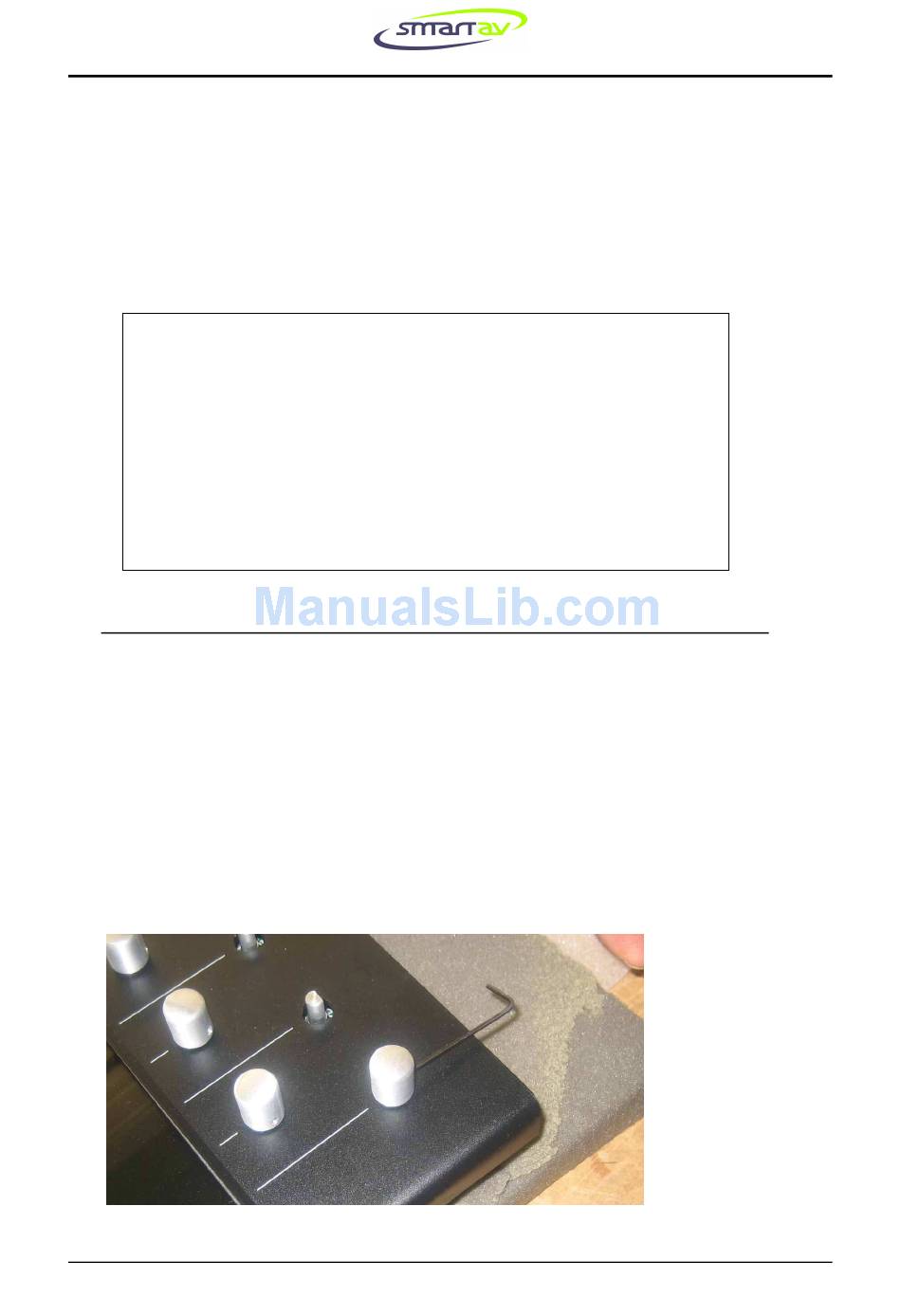

Using a 1.5mm Allen Key, remove all the knobs from the RHS of the
screen by loosening the grub screws.
