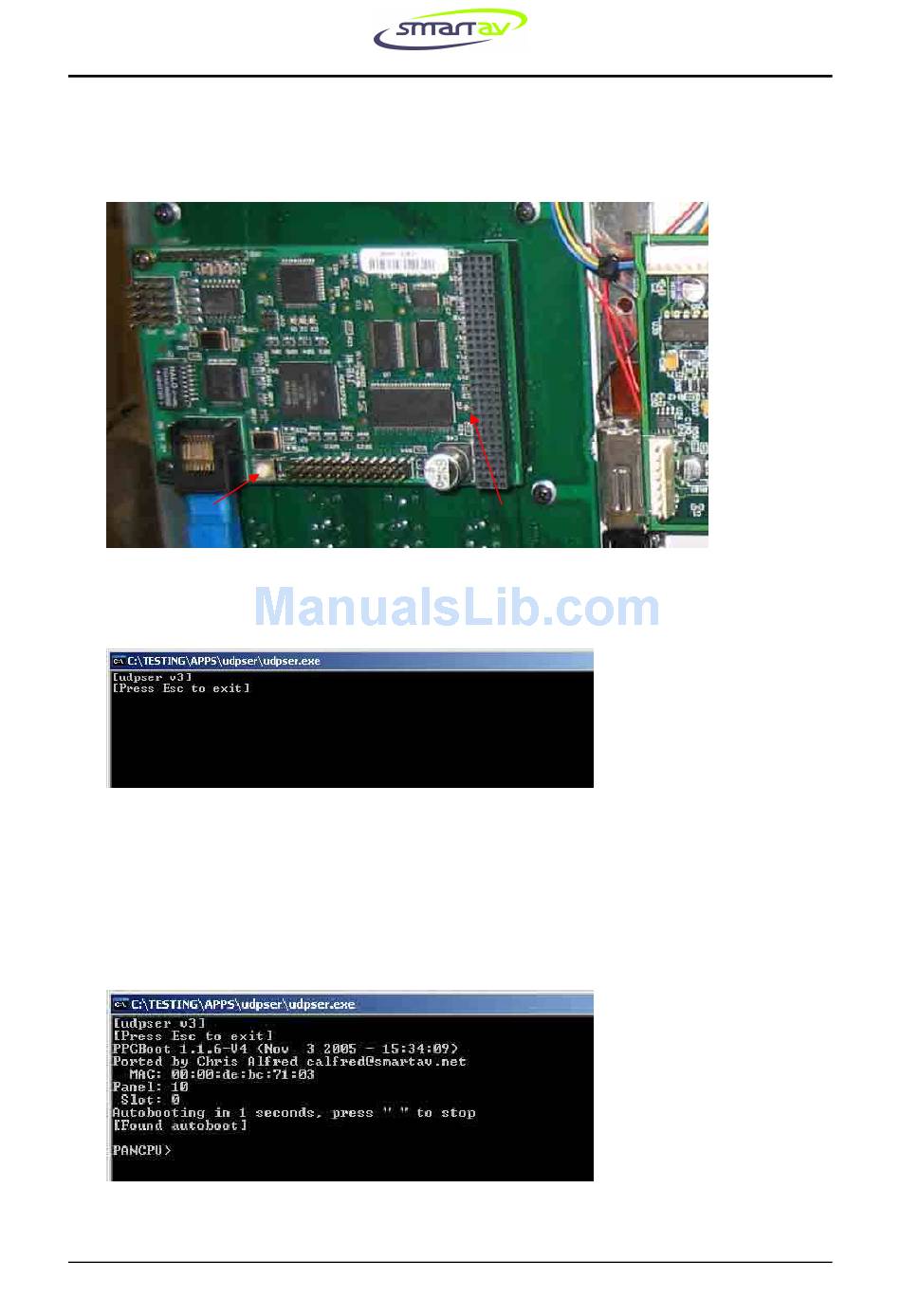

• Open the console and check for the power LED on the PANCPU. If the
LED is not on, check the power supply and cabling to the HKLOW PCB
(main lower PCB).
Reset Button
• Run the UDPSER application on the console from
C:\TESTING\APPS\udpser\udpser.exe
• Press the reset button on the PANCPU (see image above).
• You should now see the "bootloader" displayed in the UDPSER window.
The text should look as displayed below and end with a "PANCPU>"
prompt. If this does not happen, you need to replace the PANCPU PCB.
If you do see the text as shown below you should go to the next chapter
and try to reprogram (rescue) your firmware.
th
14 Oct 2009
Tango Smart Console™ Service Manual
Power LED
