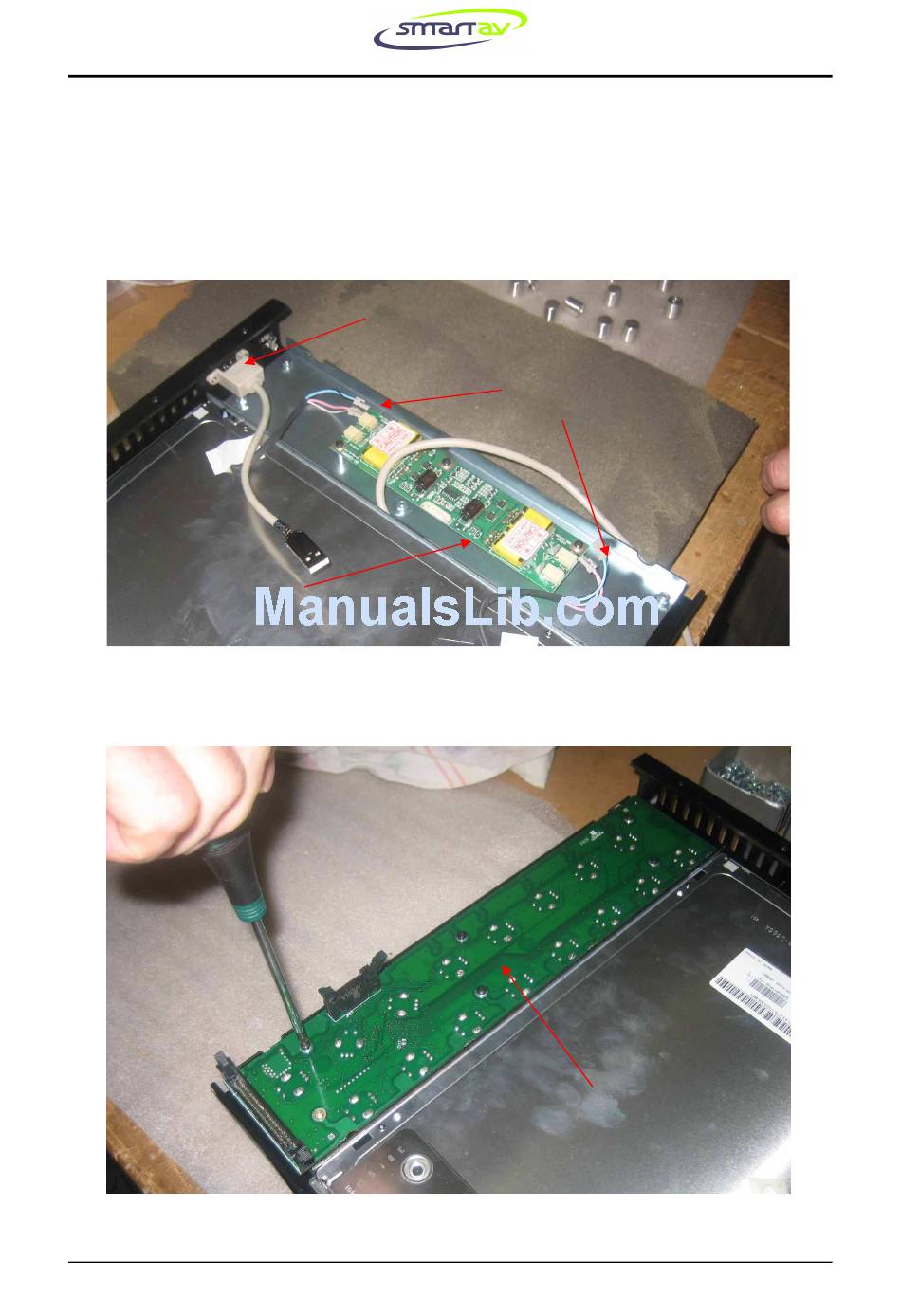

Lay the module face down on a flat work surface with a layer of
protection to prevent any scratching.
•
Disconnect the cables from the Inverter PCB.
•
Remove the 3 x M3 screws securing the Inverter PCB and remove this
PCB.
•
Remove the 2 screws securing the USB socket and remove this socket.
Inverter PCB
•
Remove the 6 x M3 screws securing the LCDENC PCB and remove this
PCB.
th
14
Oct 2009
USB Socket
Tango Smart Console™ Service Manual
Inverter
Cables
LCDENC PCB
