Smart AY Tango Service Manual page 19

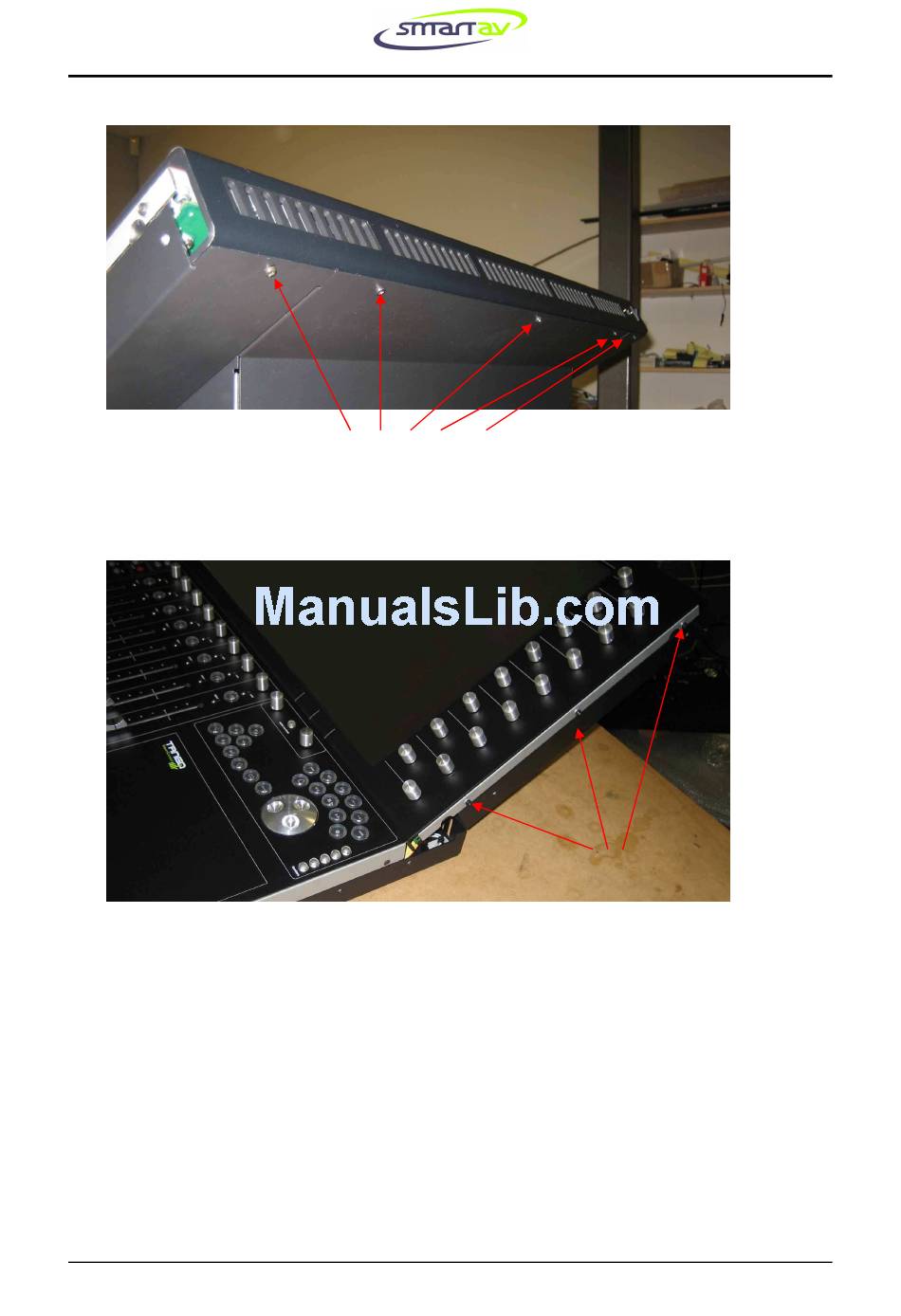

• Remove the 3 x M3 screws from each side of the upper module (see
below).
• Carefully open the upper module from the bottom edge. The best
approach is to hinge the module open like a car bonnet.
NOTE: Take extra care with this step so that the acrylic lenses are not
damaged at the point where the 2 modules meet. The best way is to slide the
module upwards first and then lift the bottom edge once it is clear of the lower
module.
th
14 Oct 2009
Remove Screws (x5)
Tango Smart Console™ Service Manual
Remove Screws
(x3)
19
