Remove the LCD support bracket from the centre of the LCD by
removing the 2 x M3 nuts at the top and 2 x M3 screws at the bottom of
the bracket. Remove the bracket by pulling it clear from the bottom first.
•

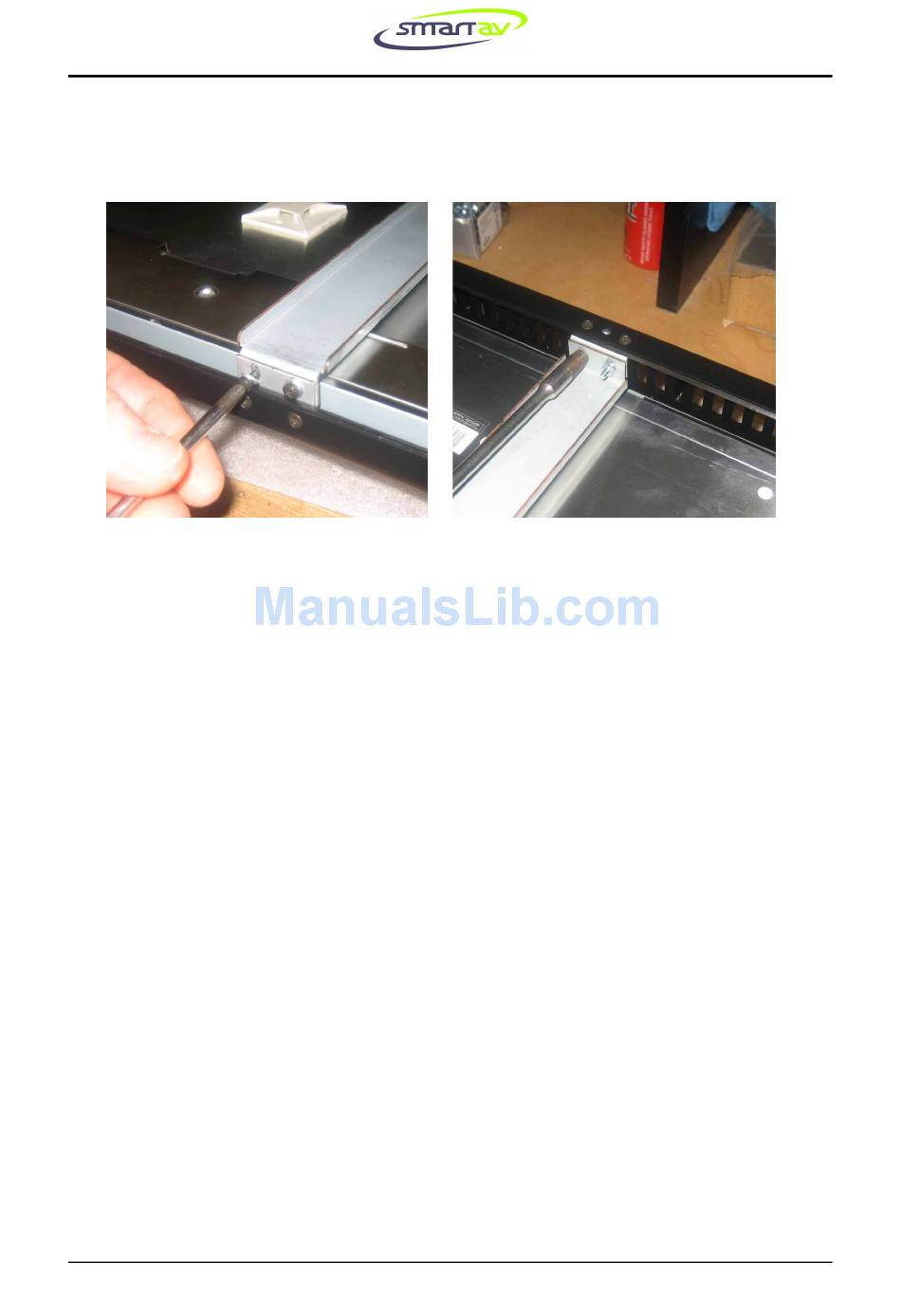

Remove the 4 screws (2 each side) that secure the LCD into the mounting
brackets.
•
Remove the 6 x M4 nuts from the LCD mounting brackets on each side of
the LCD. These brackets can now be carefully lifted away from the upper
module. Note that these brackets may be a bit sticky due to double sided
adhesive tape used on the LCD and need a small amount of force to
remove them.
