Holes Aligned

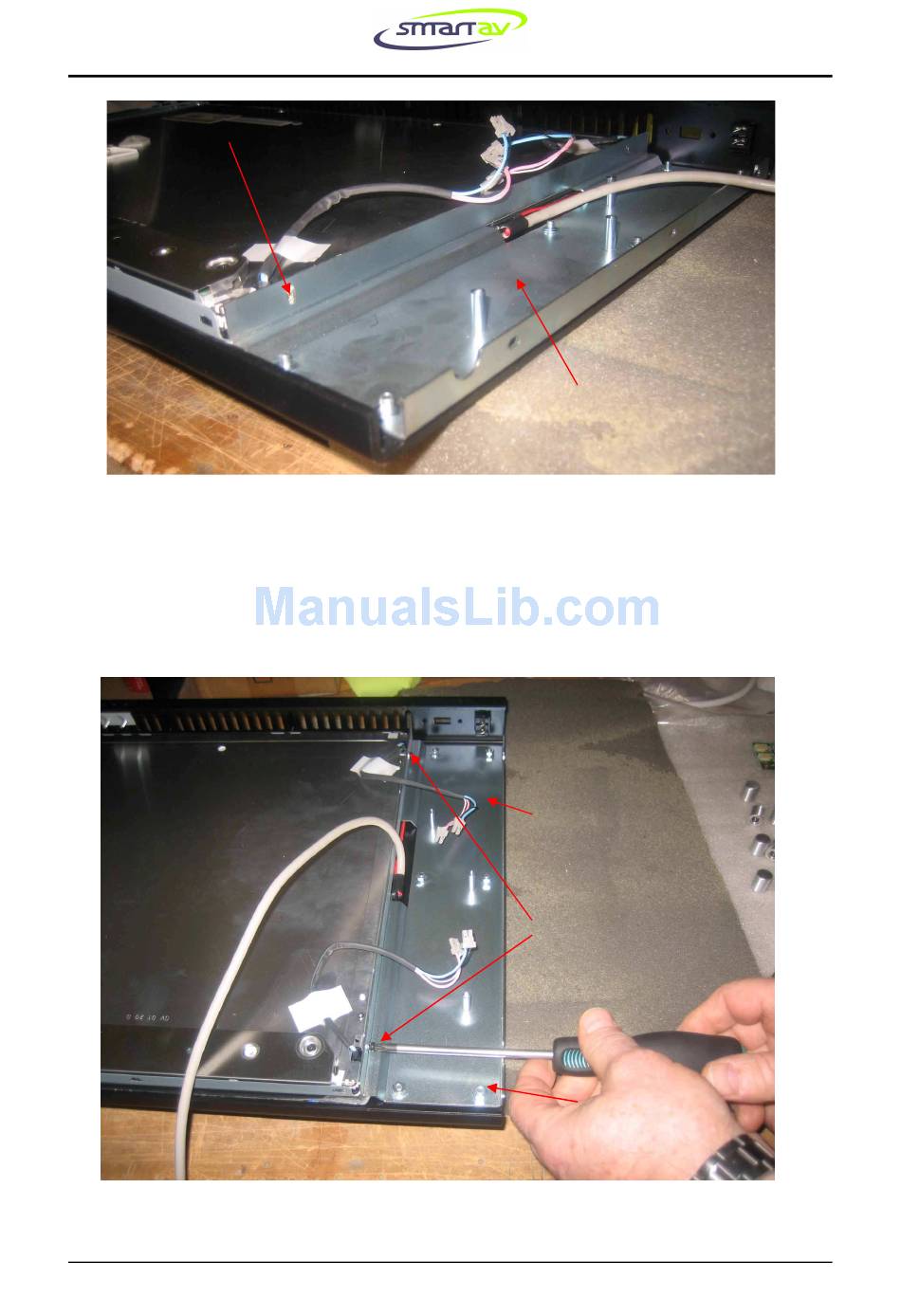

• Fit 4 x M3 screws that support the LCD through the slots in the LCD
support brackets. Leave these screws loose enough that the LCD can slide
up and down in the slots.
• Fit the 6 x M4 nuts to secure the LCD support brackets on each side.
Tighten these nuts firmly.
th
14
Oct 2009
Tango Smart Console™ Service Manual
LCD Mounting
Brackets Sitting
In Place
LCD Mounting
Brackets
LCD Mounting
Screws Fitted
Loosely First
(Both Sides)
M4 Nuts (x4)
Fitted Tightly
Second
30
