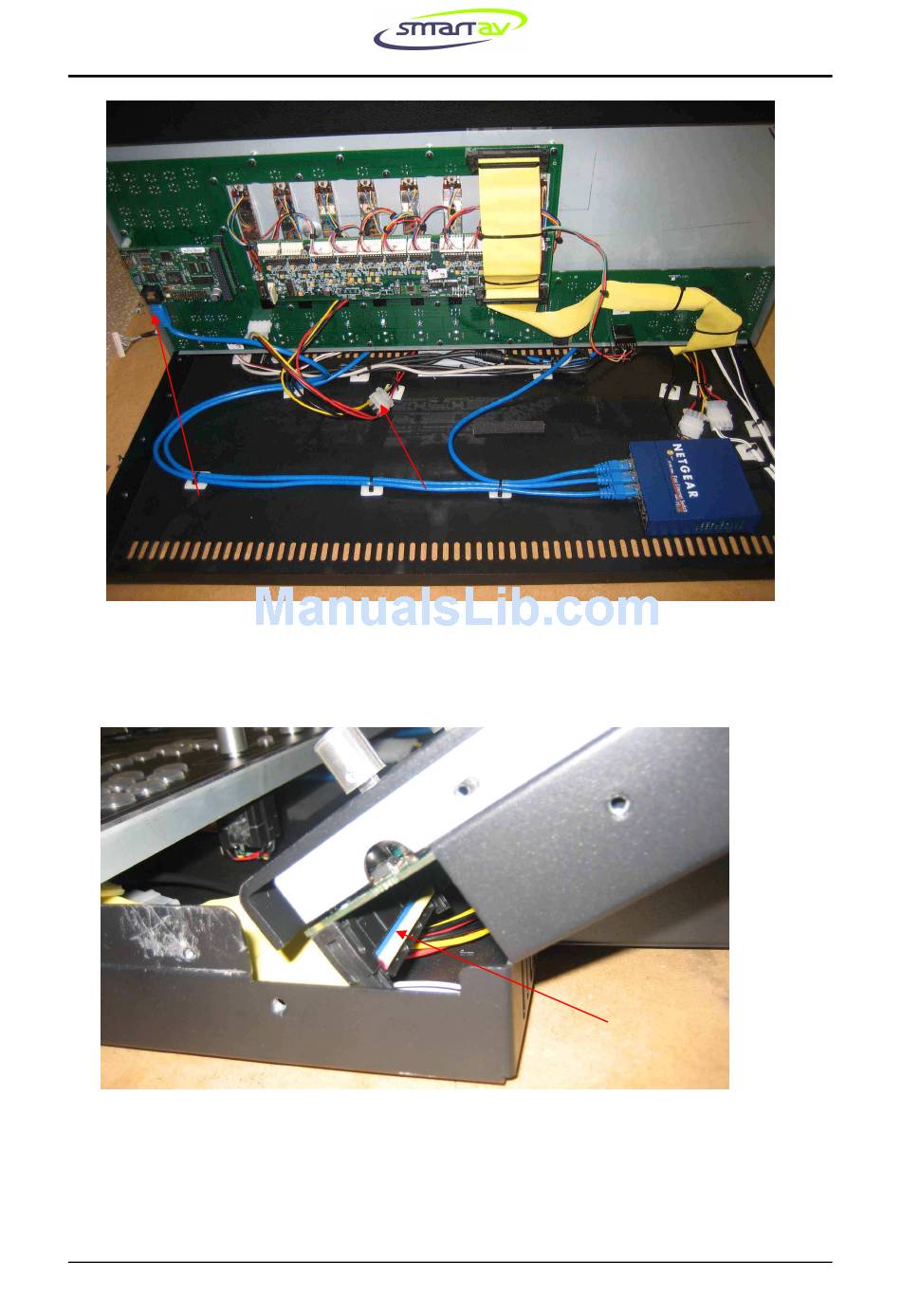

ENET Cable
• Push back the locking ears on both sides of the connector to disconnect the
ribbon cable from the upper module on the RHS of the console. Ensure
the ribbon cable is free and ready to be pulled out with the lower module.
• Lift the upper module clear of the console, taking the ribbon cable with the
module.
th
14
Oct 2009
Lower Module
Power Cable
Tango Smart Console™ Service Manual
Remove Ribbon
Cable
24
