• Run the UDPSER application on Tango from
C:\TESTING\APPS\udpser\udpser.exe
• Press the reset button on the PANCPU (see image above).

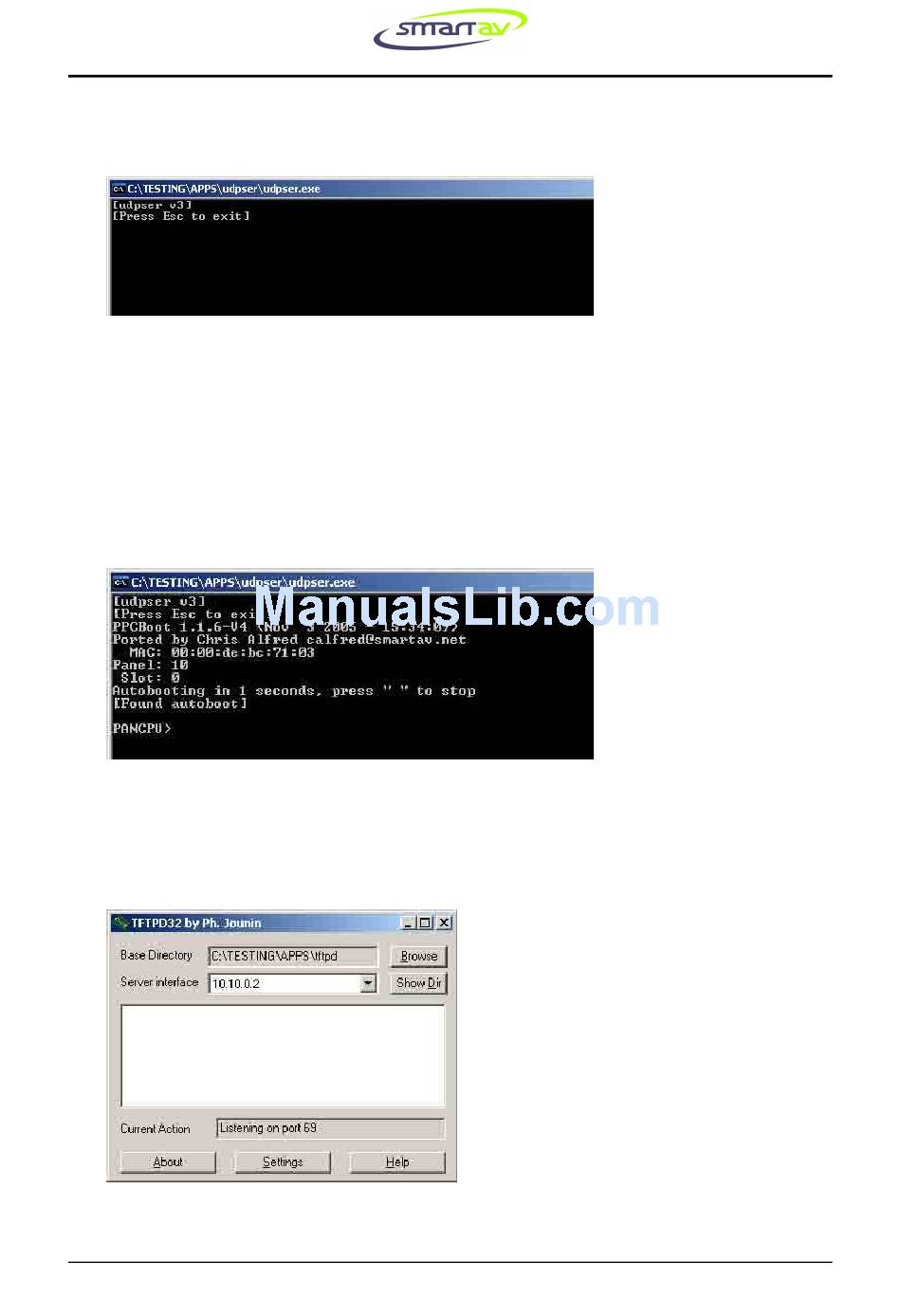

• You should now see the "bootloader" displayed in the UDPSER window.
The text should look as displayed below and end with a "PANCPU>"
prompt. If this does not happen, you need to replace the PANCPU PCB or
else check your console network connections from the PANCPU to hub
and hub to internal PC (make sure network LEDs are on for all devices). If
you do see the text as shown below you are ready to try to reprogram
(rescue) your firmware.
• Run the TFTPD32 application on Tango from
C:\TESTING\APPS\tftpd\tftpd32.exe
Check that the settings are as shown below for "Base Directory" and
"Server Interface".
