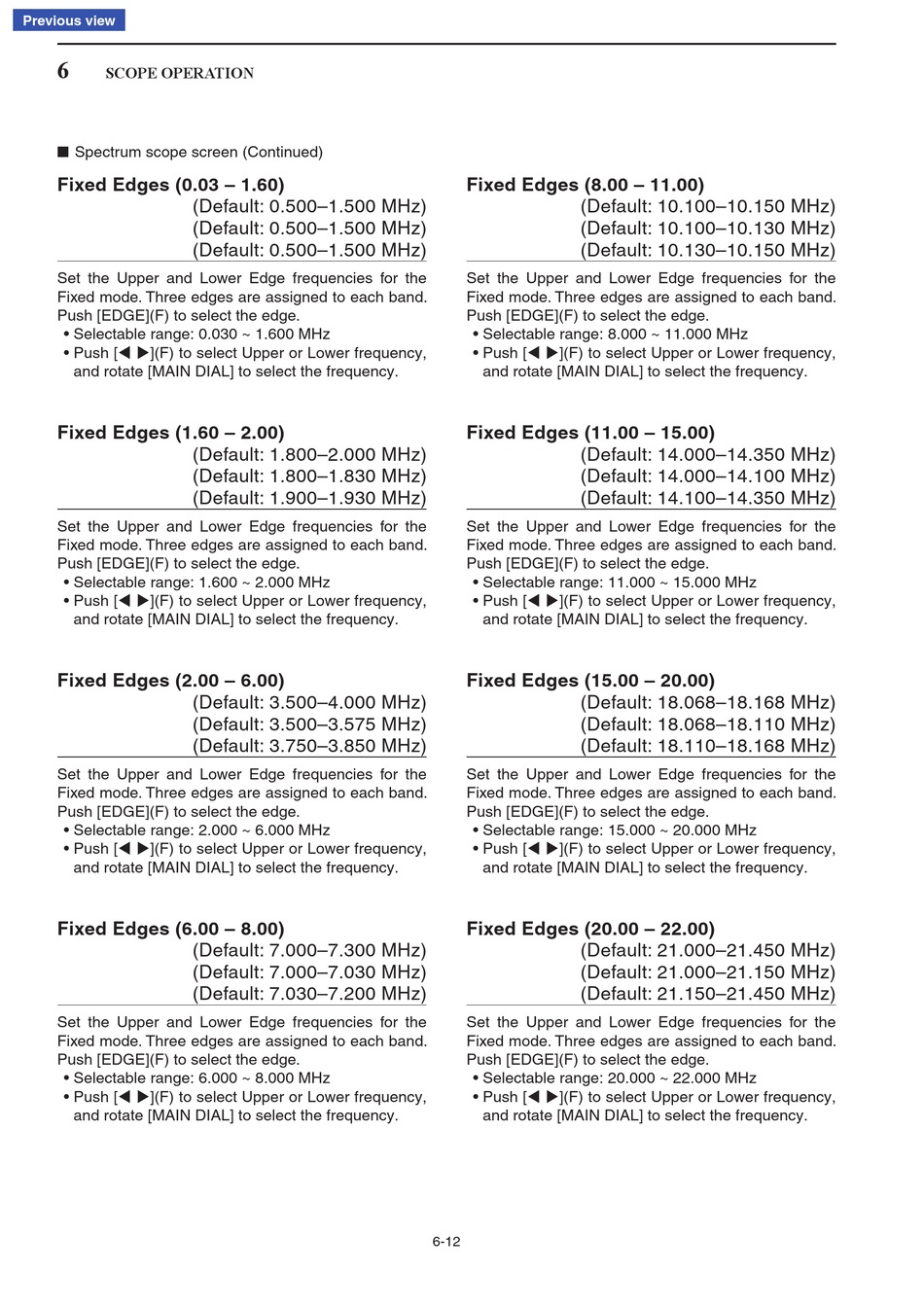

Icom iC-7850 Instruction Manual page 129

Previous view Previous view
6
SCOPE OPERATION
Spectrum scope screen (Continued)
■
Fixed Edges (0.03 – 1.60)
(Default: 0.500–1.500 MHz)
(Default: 0.500–1.500 MHz)
(Default: 0.500–1.500 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 0.030 ~ 1.600 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (1.60 – 2.00)
(Default: 1.800–2.000 MHz)
(Default: 1.800–1.830 MHz)
(Default: 1.900–1.930 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 1.600 ~ 2.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (2.00 – 6.00)
(Default: 3.500–4.000 MHz)
(Default: 3.500–3.575 MHz)
(Default: 3.750–3.850 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 2.000 ~ 6.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (6.00 – 8.00)
(Default: 7.000–7.300 MHz)
(Default: 7.000–7.030 MHz)
(Default: 7.030–7.200 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 6.000 ~ 8.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (8.00 – 11.00)
(Default: 10.100–10.150 MHz)
(Default: 10.100–10.130 MHz)
(Default: 10.130–10.150 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 8.000 ~ 11.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (11.00 – 15.00)
(Default: 14.000–14.350 MHz)
(Default: 14.000–14.100 MHz)
(Default: 14.100–14.350 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 11.000 ~ 15.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (15.00 – 20.00)
(Default: 18.068–18.168 MHz)
(Default: 18.068–18.110 MHz)
(Default: 18.110–18.168 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 15.000 ~ 20.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
Fixed Edges (20.00 – 22.00)
(Default: 21.000–21.450 MHz)
(Default: 21.000–21.150 MHz)
(Default: 21.150–21.450 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
Push [EDGE](F) to select the edge.
• Selectable range: 20.000 ~ 22.000 MHz
• Push [t u](F) to select Upper or Lower frequency,
and rotate [MAIN DIAL] to select the frequency.
6-12
