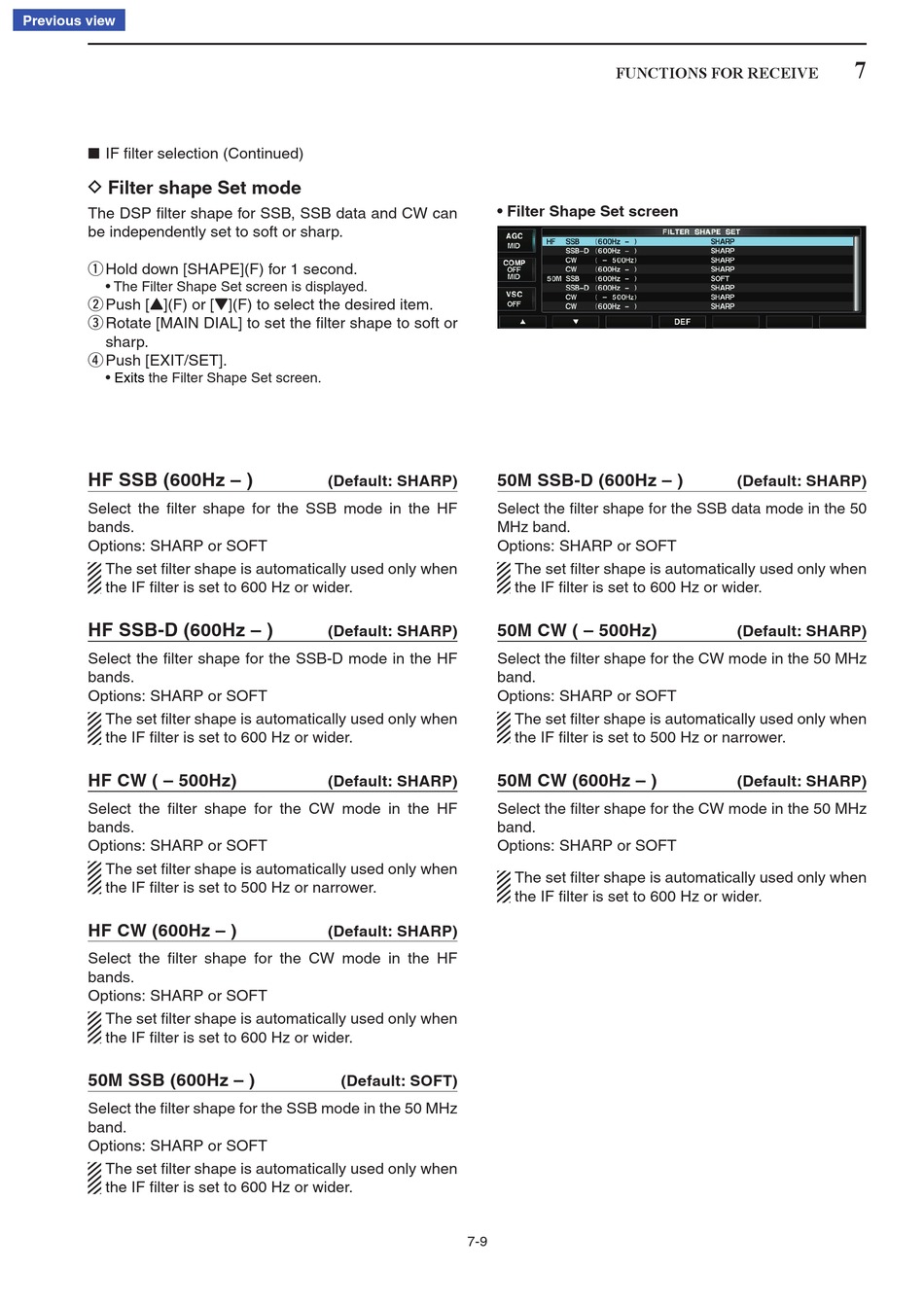

IF filter selection
■
D Filter shape Set mode
The DSP filter shape for SSB, SSB data and CW can
be independently set to soft or sharp.
Hold down [SHAPE](F) for 1 second.
q
• The Filter Shape Set screen is displayed.
Y](F) or [Z](F) to select the desired item.
Push [
w
Rotate [MAIN DIAL] to set the filter shape to soft or
e
sharp.
Push [EXIT/SET].
r
• Exits the Filter Shape Set screen.
HF SSB (600Hz – )
Select the filter shape for the SSB mode in the HF
bands.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 600 Hz or wider.
HF SSB-D (600Hz – )
Select the filter shape for the SSB-D mode in the HF
bands.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 600 Hz or wider.
HF CW ( – 500Hz)
Select the filter shape for the CW mode in the HF
bands.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 500 Hz or narrower.
HF CW (600Hz – )
Select the filter shape for the CW mode in the HF
bands.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 600 Hz or wider.
50M SSB (600Hz – )
Select the filter shape for the SSB mode in the 50 MHz
band.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 600 Hz or wider.
(Continued)
(Default: SHARP)
(Default: SHARP)
(Default: SHARP)
(Default: SHARP)
(Default: SOFT)
FUNCTIONS FOR RECEIVE
• Filter Shape Set screen
50M SSB-D (600Hz – )
Select the filter shape for the SSB data mode in the 50
MHz band.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 600 Hz or wider.
50M CW ( – 500Hz)
Select the filter shape for the CW mode in the 50 MHz
band.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 500 Hz or narrower.
50M CW (600Hz – )
Select the filter shape for the CW mode in the 50 MHz
band.
Options: SHARP or SOFT
The set filter shape is automatically used only when
the IF filter is set to 600 Hz or wider.
7-9
7
(Default: SHARP)
(Default: SHARP)
(Default: SHARP)
