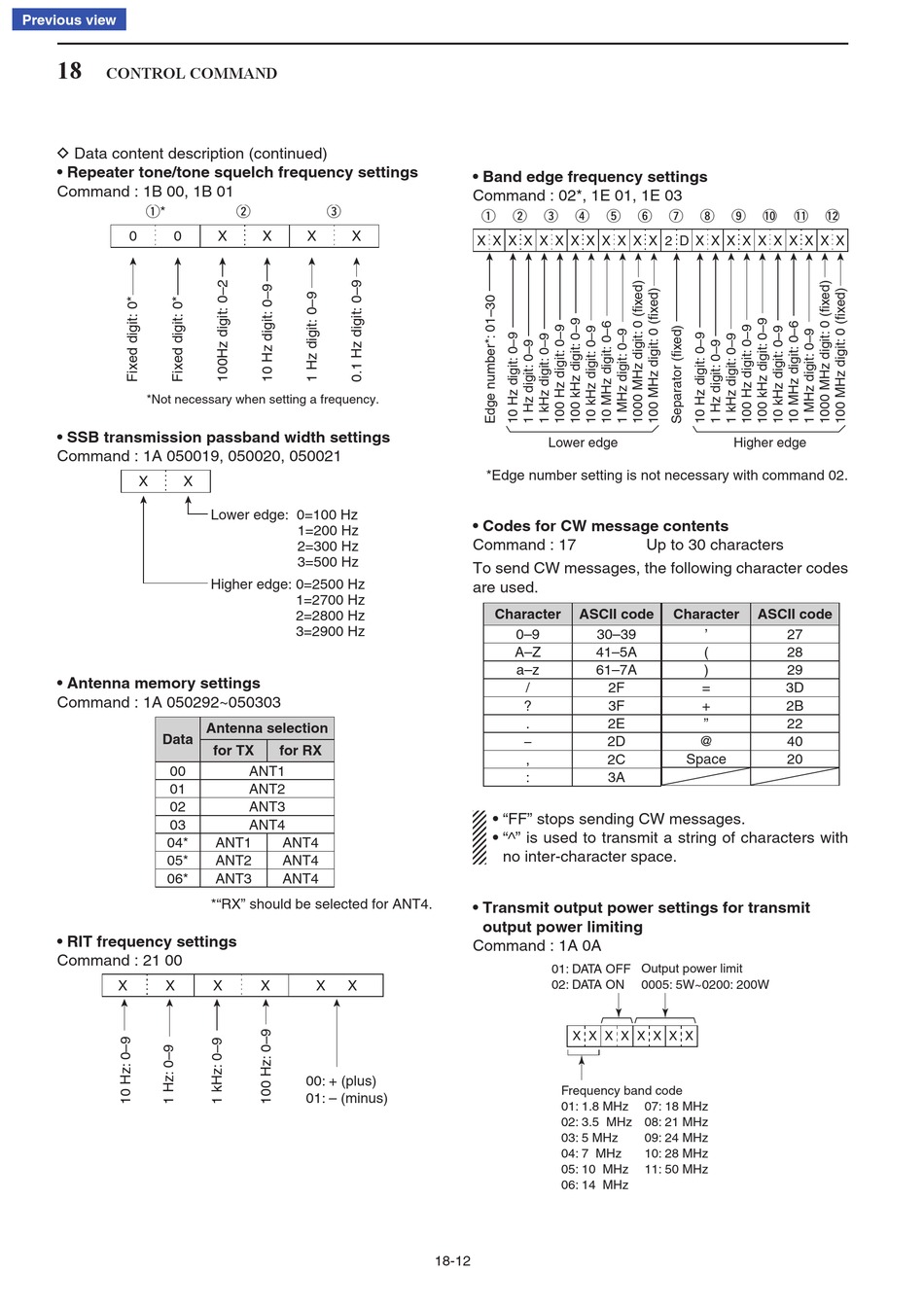

18
CONTROL COMMAND
D Data content description (continued)
• Repeater tone/tone squelch frequency settings
Command : 1B 00, 1B 01
q*
0 0
*Not necessary when setting a frequency.
• SSB transmission passband width settings
Command : 1A 050019, 050020, 050021
X X
• Antenna memory settings
Command : 1A 050292~050303
Data
00
01
02
03
04*
05*
06*
• RIT frequency settings
Command : 21 00
X X
w e
X X X X
Lower edge: 0=100 Hz
1=200 Hz
2=300 Hz
3=500 Hz
Higher edge: 0=2500 Hz
1=2700 Hz
2=2800 Hz
3=2900 Hz
Antenna selection
for TX for RX
ANT1
ANT2
ANT3
ANT4
ANT1 ANT4
ANT2 ANT4
ANT3 ANT4
*"RX" should be selected for ANT4.
X X X X
00: + (plus)
01: – (minus)
• Band edge frequency settings
Command : 02*, 1E 01, 1E 03
q w e r t
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
*Edge number setting is not necessary with command 02.
• Codes for CW message contents
Command : 17
To send CW messages, the following character codes
are used.
Character ASCII code
0–9 30–39
A–Z 41–5A
a–z 61–7A
/ 2F
? 3F
. 2E
− 2D
, 2C
: 3A
• "FF" stops sending CW messages.
• "^" is used to transmit a string of characters with
no inter-character space.
• Transmit output power settings for transmit
output power limiting
Command : 1A 0A
01: DATA OFF
02: DATA ON
X X X X X X X X
Frequency band code
01: 1.8 MHz
02: 3.5 MHz 08: 21 MHz
03: 5 MHz
04: 7 MHz
05: 10 MHz
06: 14 MHz
18-12
y u i o !0 !1
Higher edge
Up to 30 characters
Character ASCII code
' 27
( 28
) 29
= 3D
+ 2B
" 22
@ 40
Space 20
Output power limit
0005: 5W~0200: 200W
07: 18 MHz
09: 24 MHz
10: 28 MHz
11: 50 MHz
!2
