16
MAINTENANCE

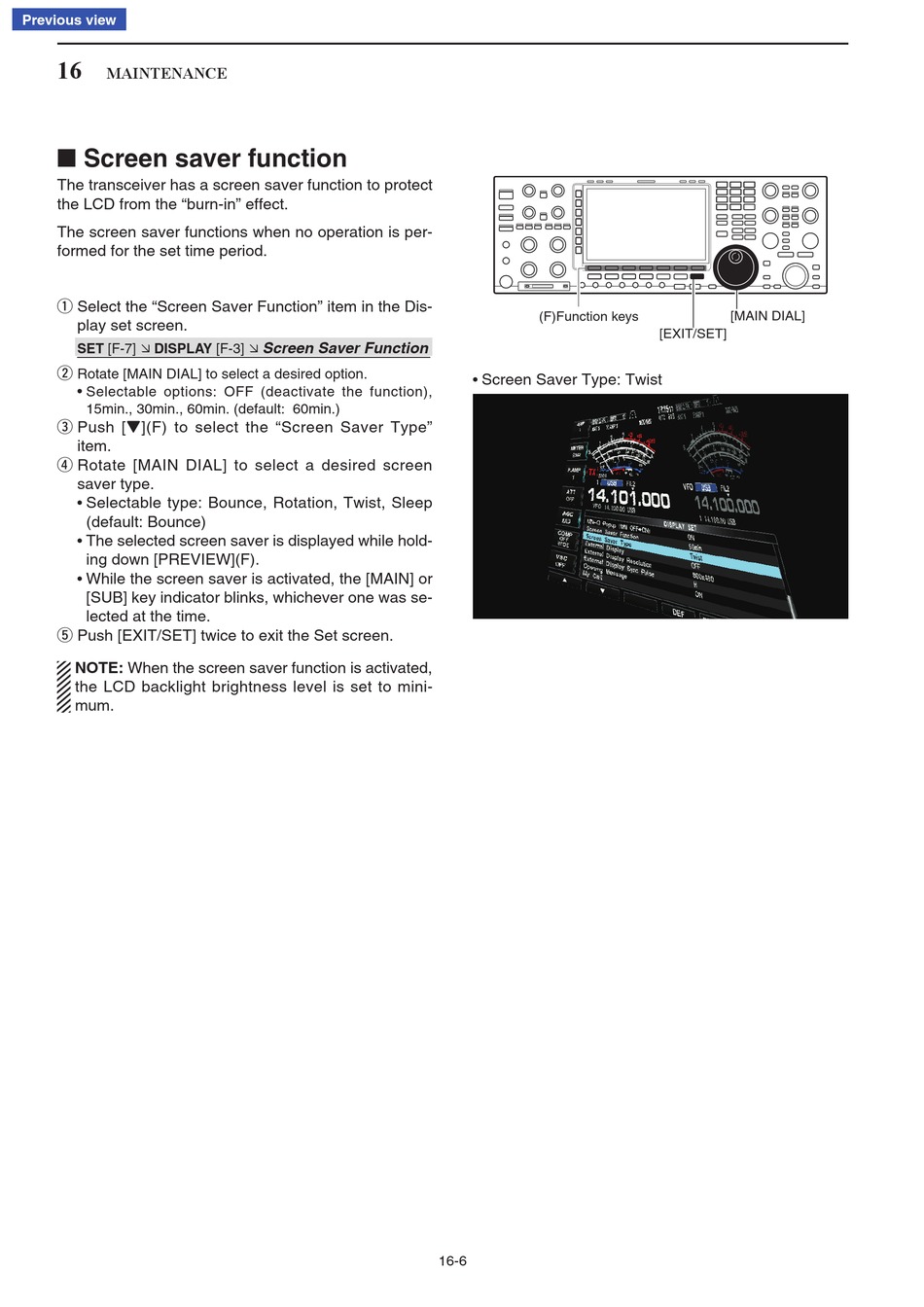

■ Screen saver function
The transceiver has a screen saver function to protect
the LCD from the "burn-in" effect.
The screen saver functions when no operation is per-
formed for the set time period.
q Select the "Screen Saver Function" item in the Dis-
play set screen.
SET [F-7]  DISPLAY [F-3] 
w Rotate [MAIN DIAL] to select a desired option.
• Selectable options: OFF (deactivate the function),
15min., 30min., 60min. (default: 60min.)
e Push [Z](F) to select the "Screen Saver Type"
item.
r Rotate [MAIN DIAL] to select a desired screen
saver type.
Selectable type: Bounce, Rotation, Twist, Sleep
•
(default: Bounce)
The selected screen saver is displayed while hold-
•
ing down [PREVIEW](F).
While the screen saver is activated, the [MAIN] or
•
[SUB] key indicator blinks, whichever one was se-
lected at the time.
t Push [EXIT/SET] twice to exit the Set screen.
NOTE: When the screen saver function is activated,
the LCD backlight brightness level is set to mini-
mum.
Screen Saver Function
16-6
(F)Function keys
Screen Saver Type: Twist
•
[MAIN DIAL]
[EXIT/SET]
