Figure 5-47 Removing The Top Cover Of The Cd-Rom Drive - Silicon Graphics O2+ Hardware Reference Manual

007-4486-001
5. Remove the top cover of the CD-ROM drive (Figure 5-47) as follows:
• Look beneath the plastic cover for a release tab.
• Press the tab toward the chassis and push the cover upward.

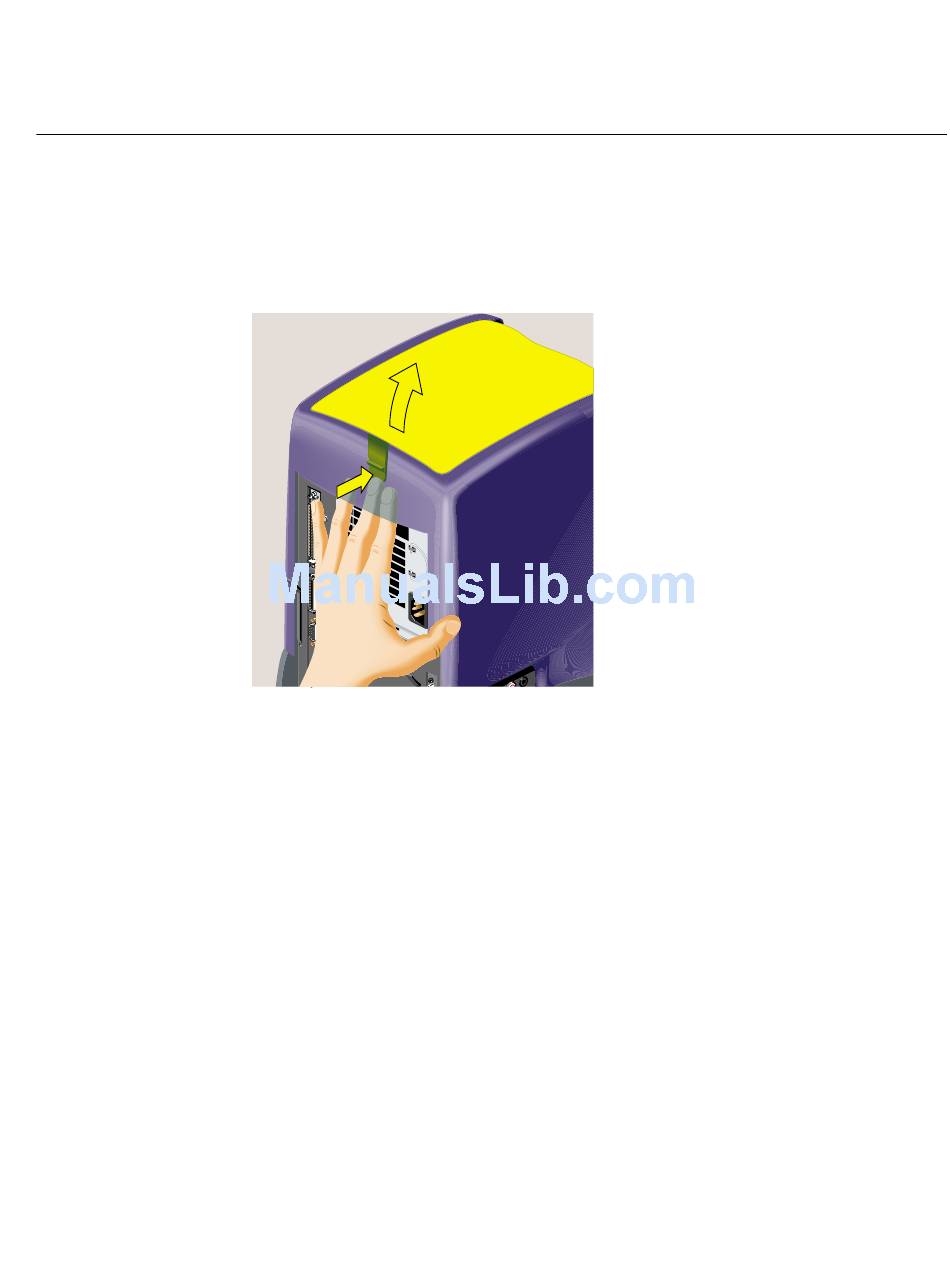

Figure 5-47 Removing the Top Cover of the CD-ROM Drive
Replacing the CD-ROM Drive
161
