007-4486-001
Note: If the PCI tray is not completely seated, the system module will not slide back
into the chassis.

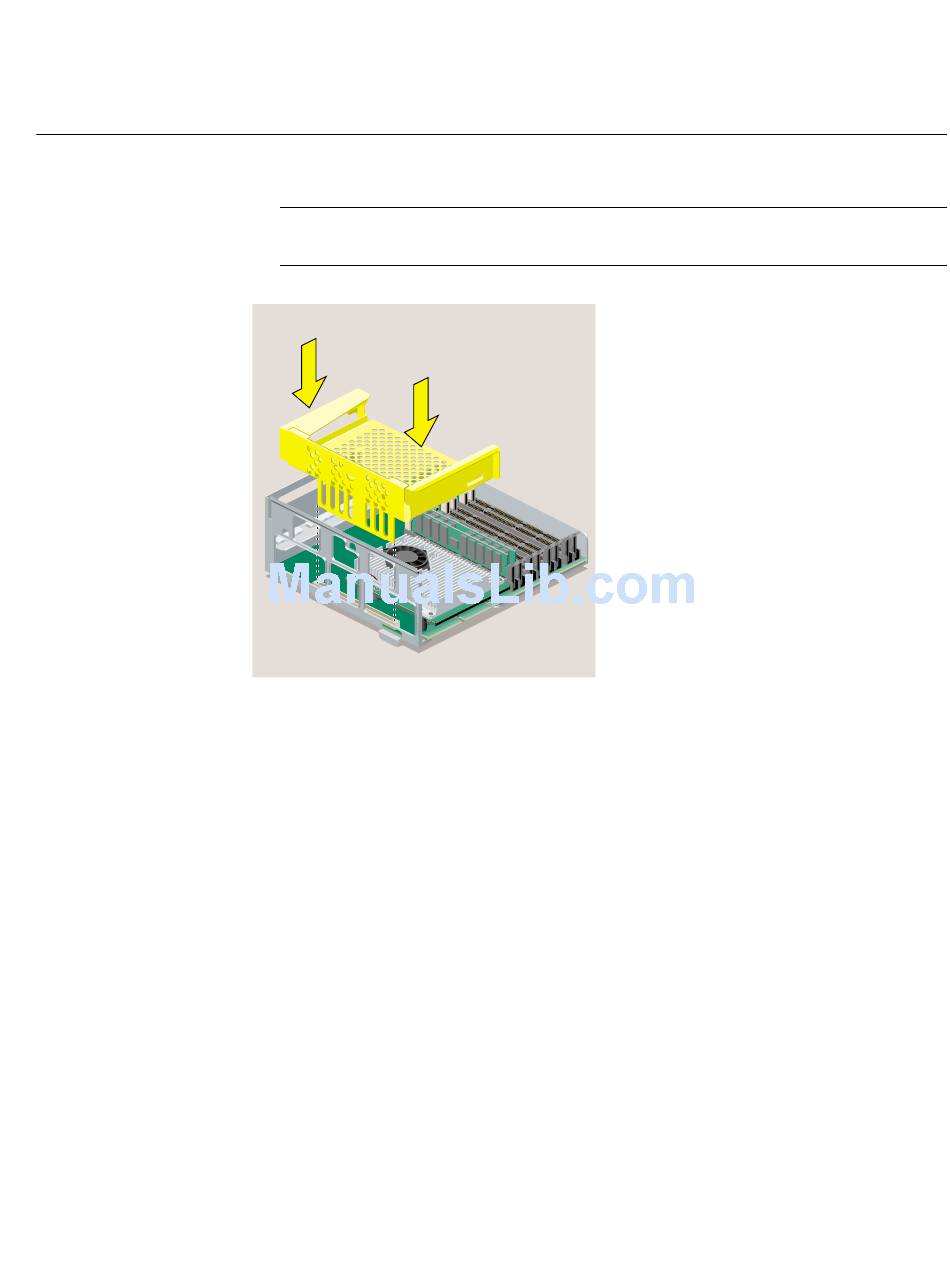

Figure 5-16 Replacing the PCI Tray in the R12000class System Module
12. Replace the faceplate by sliding it onto the system module, while at the same time
lifting slightly at the "V" to snap it in place (Figure 5-17).
When properly seated, the underside of the faceplate is flush to the module and the
screw holes are aligned.
Replacing the R12000class CPU Module
133
