Replacing The Cd-Rom Drive; Figure 5-44 Opening The Cd-Rom Drive - Silicon Graphics O2+ Hardware Reference Manual

Chapter 5: Ordering, Removing, Upgrading, Installing Replacement Parts

Replacing the CD-ROM Drive

158
If you are instructed by your service provider to replace the CD-ROM drive, follow these
steps. (Note that you must first remove the exterior covers before you can reach the
drive.)
1. If the CD eject button does not work, insert a straightened paper clip in the tiny hole
beneath the eject button to release the CD-ROM tray (Figure 5-44). (The CD eject
button may not work if the CD-ROM has failed.)

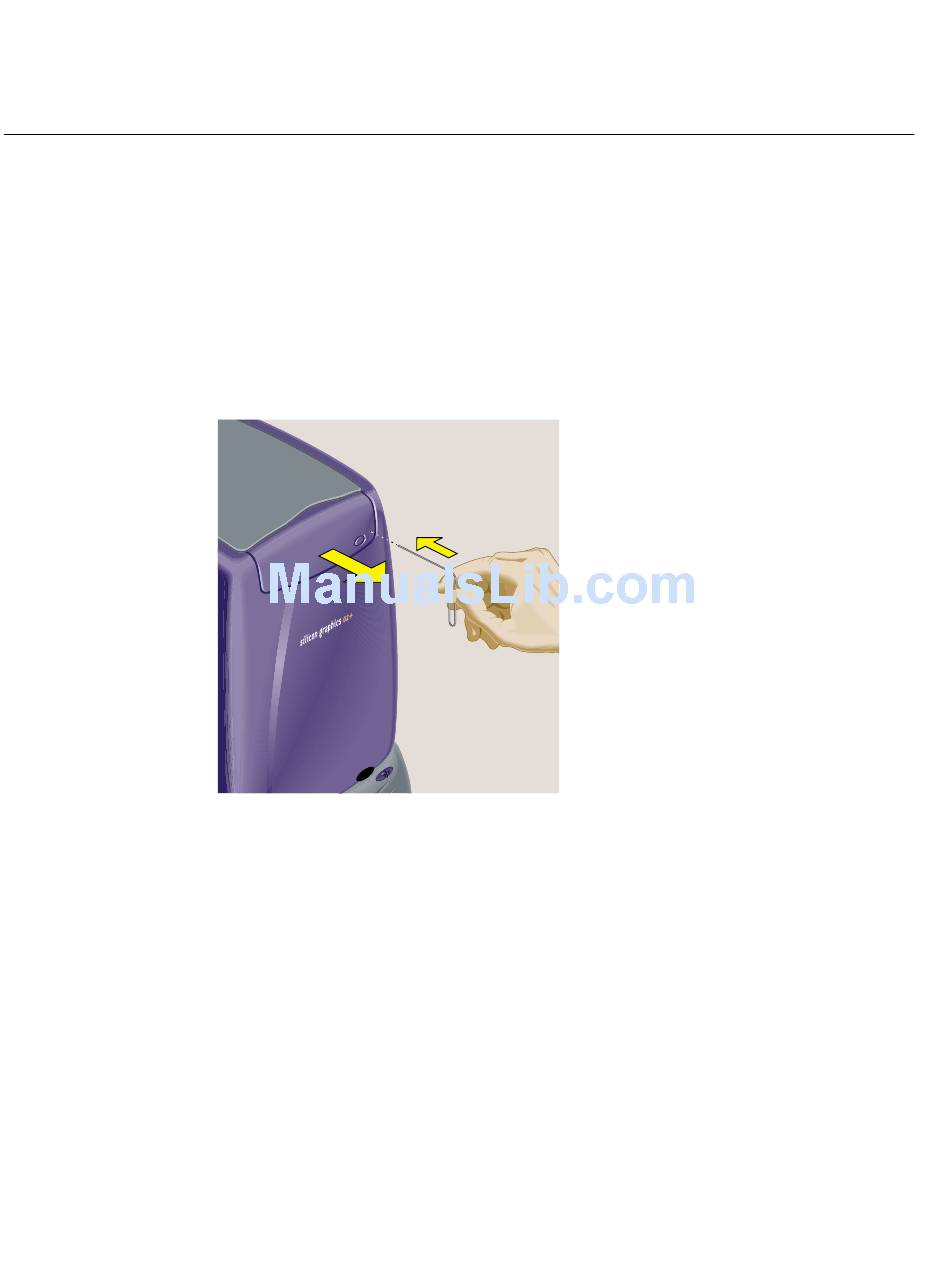

Opening the CD-ROM Drive
Figure 5-44
007-4486-001
