Fast Track Installation Guide
2.3.4

Mounting the MP-10x on a Wall

The MP-10x is mounted on a wall by the addition of two short (equal-length) supplied brackets.
The MP-102 with brackets for wall mount is shown in
To mount the MP-10x on a wall, take these 7 steps:
Remove the screw on the side of the device that is nearest the bottom and the front panel.
1.
Insert the peg on the bracket into the third air vent down on the column of air vents nearest
2.
the front panel.
Swivel the bracket so that the side of the bracket is aligned with the base of the device and
3.
the hole in the bracket line up with the empty screw hole.
Attach the bracket using one of the screws provided in the device package.
4.
Repeat steps 1 to 4 to attach the second bracket to the other side of the device.
5.
Position the device on the wall with the base of the device next to the wall.
6.
Use four screws to attach the device to the wall. These screws are not provided with the
7.
device.
Version 4.4

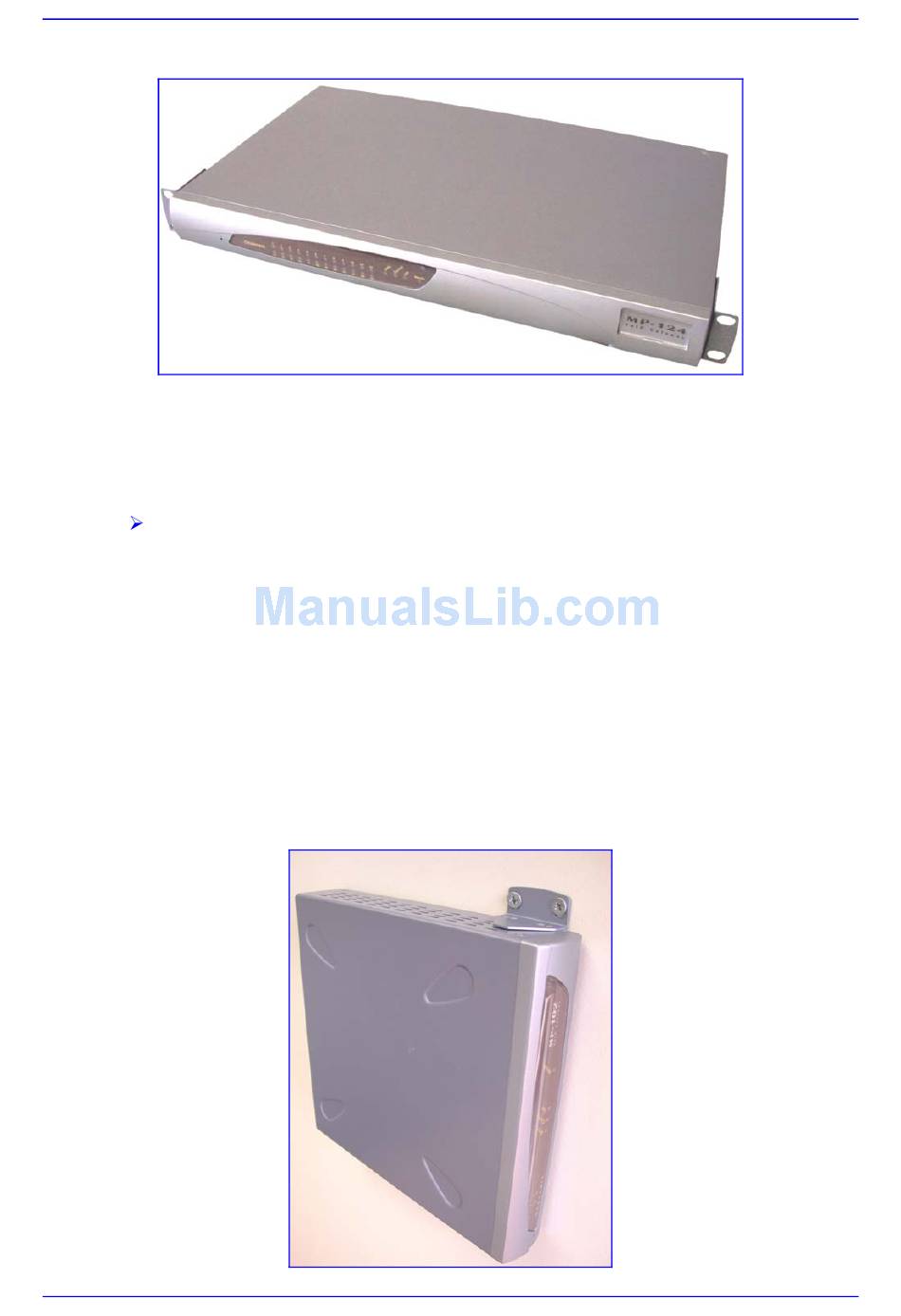

Figure 2-3: MP-124 with Brackets for Rack Installation

Figure 2-4: MP-102 Wall Mount

Figure 2-4.
11
2. Installing the MP-1xx
March 2005
