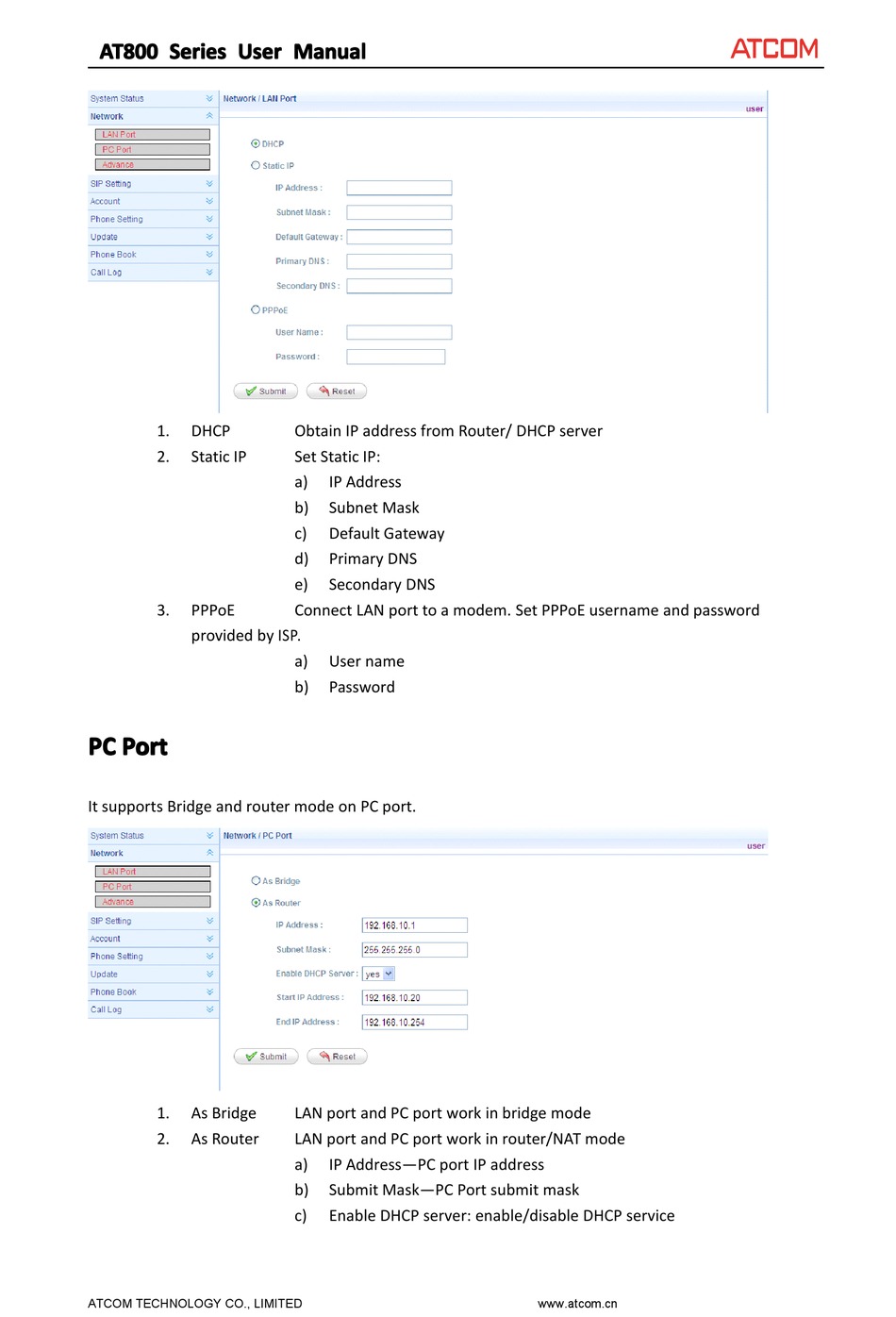

Lan Port - ATCOM AT800DP User Manual

AT800 Series User
AT800 Series AT800 AT800 Series Series User User User Manual
1. DHCP
2. Static IP
3. PPPoE
provided by ISP.
PC PC Port Port
PC PC Port Port
It supports Bridge and router mode on PC port.
1. As Bridge
2. As Router
ATCOM TECHNOLOGY CO., LIMITED
Manual
Manual Manual
Obtain IP address from Router/ DHCP server
Set Static IP:
a) IP Address
b) Subnet Mask
c) Default Gateway
d) Primary DNS
e) Secondary DNS
Connect LAN port to a modem. Set PPPoE username and password
a) User name
b) Password
LAN port and PC port work in bridge mode
LAN port and PC port work in router/NAT mode
a) IP Address—PC port IP address
b) Submit Mask—PC Port submit mask
c) Enable DHCP server: enable/disable DHCP service
www.atcom.cn
