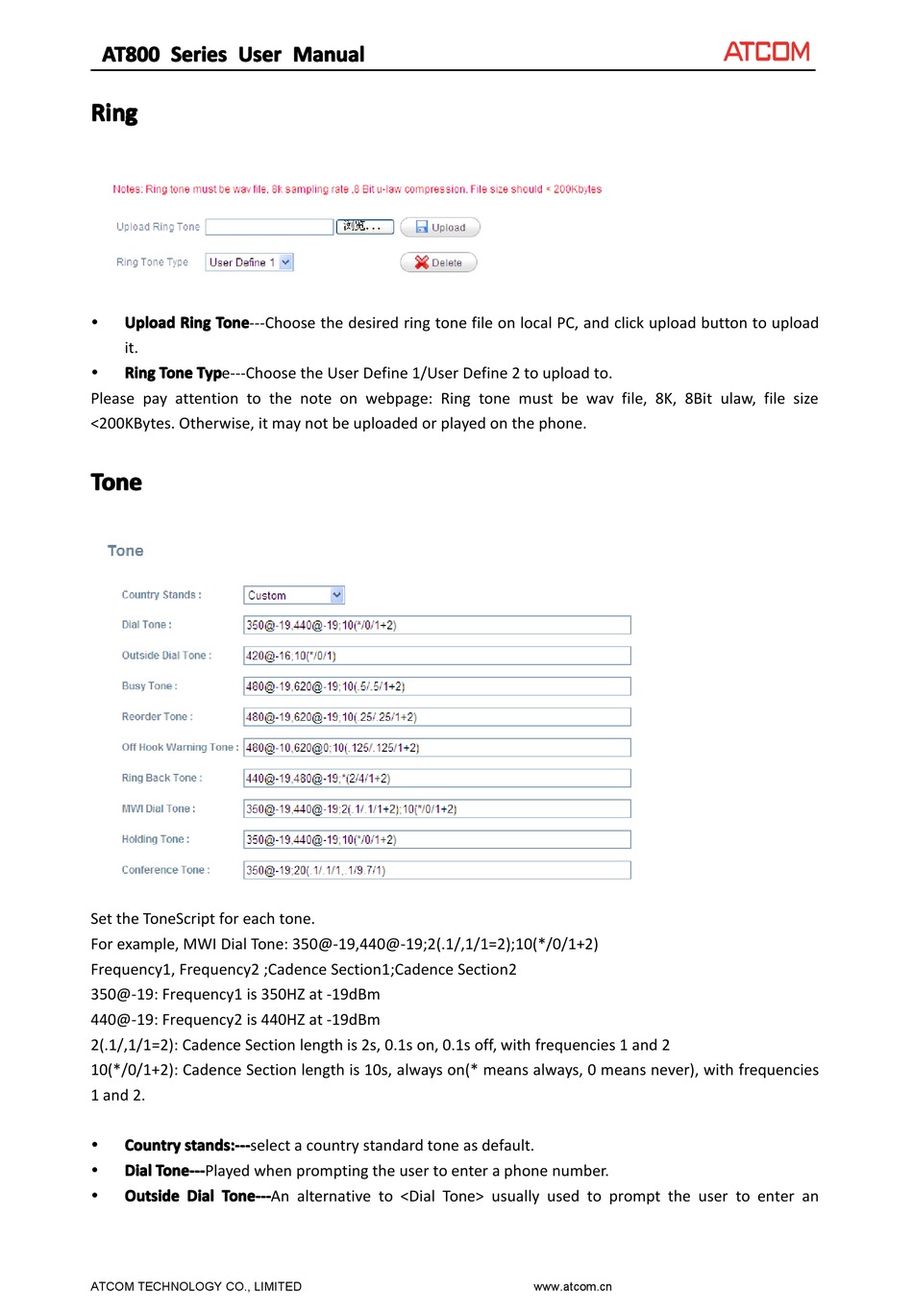

ATCOM AT800DP User Manual page 39

AT800 Series User
AT800 AT800 AT800 Series Series Series User User User Manual
Ring Ring
Ring Ring
� Upload Upload Ring Ring Tone Tone
Upload Upload Ring Ring Tone Tone---Choose the desired ring tone file on local PC, and click upload button to upload
it.
� Ring Ring Tone Tone Typ Typ
Ring Ring Tone Tone Typ Type---Choose the User Define 1/User Define 2 to upload to.
Please pay attention to the note on webpage: Ring tone must be wav file, 8K, 8Bit ulaw, file size
<200KBytes. Otherwise, it may not be uploaded or played on the phone.
Tone Tone
Tone Tone
Set the ToneScript for each tone.
For example, MWI Dial Tone: 350@-19,440@-19;2(.1/,1/1=2);10(*/0/1+2)
Frequency1, Frequency2 ;Cadence Section1;Cadence Section2
350@-19: Frequency1 is 350HZ at -19dBm
440@-19: Frequency2 is 440HZ at -19dBm
2(.1/,1/1=2): Cadence Section length is 2s, 0.1s on, 0.1s off, with frequencies 1 and 2
10(*/0/1+2): Cadence Section length is 10s, always on(* means always, 0 means never), with frequencies
1 and 2.
Country stands: stands:--- --- --- ---select a country standard tone as default.
� Country Country stands: Country stands:
� Dial Dial Dial Tone Dial Tone Tone Tone--- --- --- ---Played when prompting the user to enter a phone number.
� Outside Outside Dial Dial Tone Tone Tone--- --- --- ---An alternative to <Dial Tone> usually used to prompt the user to enter an
Outside Outside Dial Dial Tone
ATCOM TECHNOLOGY CO., LIMITED
Manual
Manual Manual
www.atcom.cn
