H H H H eadset eadset eadset
eadset

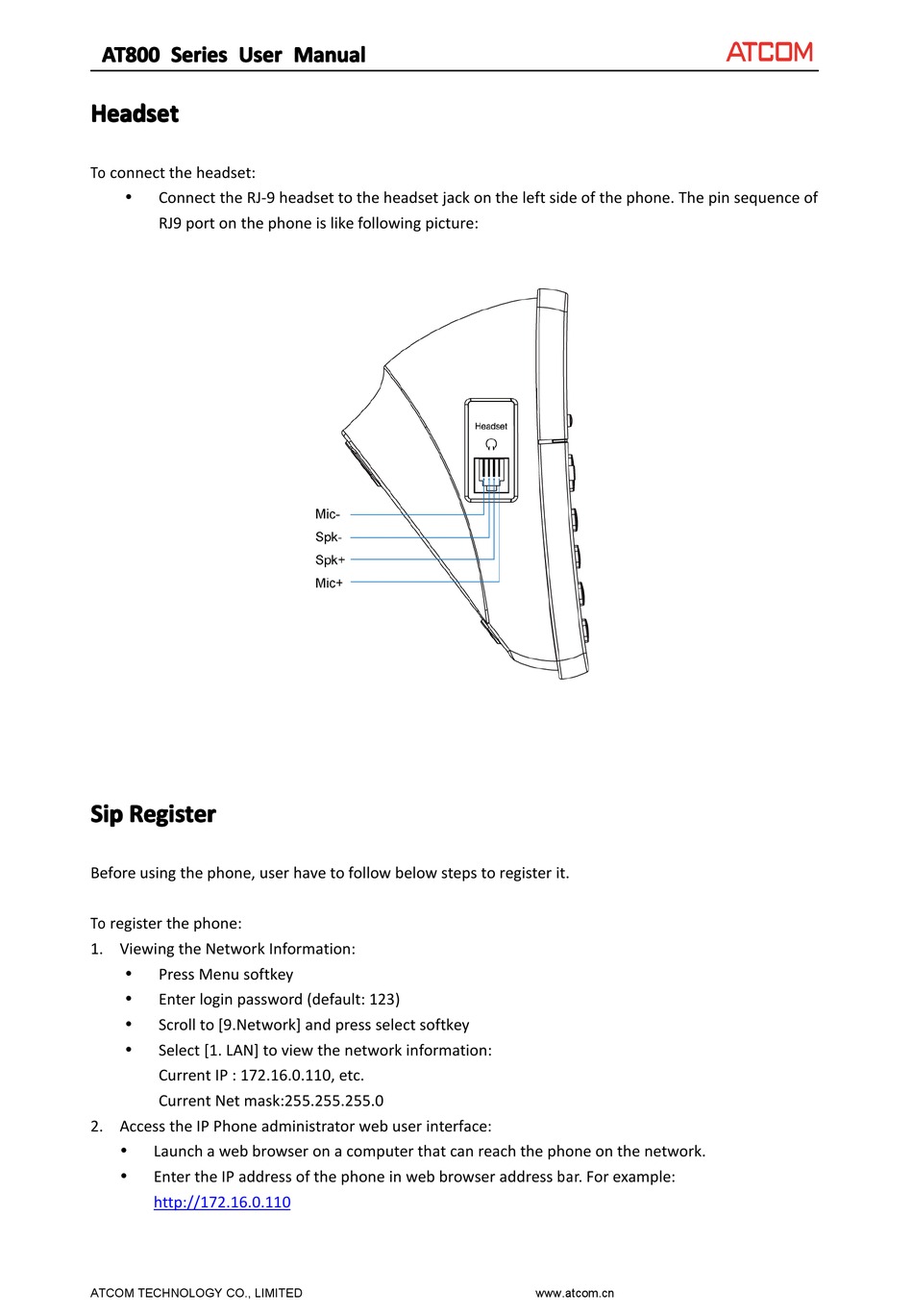

To connect the headset:
� Connect the RJ-9 headset to the headset jack on the left side of the phone. The pin sequence of
RJ9 port on the phone is like following picture:
Sip Sip Register Register
Sip

Sip Register

Register
Before using the phone, user have to follow below steps to register it.
To register the phone:
1. Viewing the Network Information:
� Press Menu softkey
� Enter login password (default: 123)
� Scroll to [9.Network] and press select softkey
� Select [1. LAN] to view the network information:
Current IP : 172.16.0.110, etc.
Current Net mask:255.255.255.0
2. Access the IP Phone administrator web user interface:
� Launch a web browser on a computer that can reach the phone on the network.
� Enter the IP address of the phone in web browser address bar. For example:
http://172.16.0.110
