SCS311 / SCS317
Installation Instructions

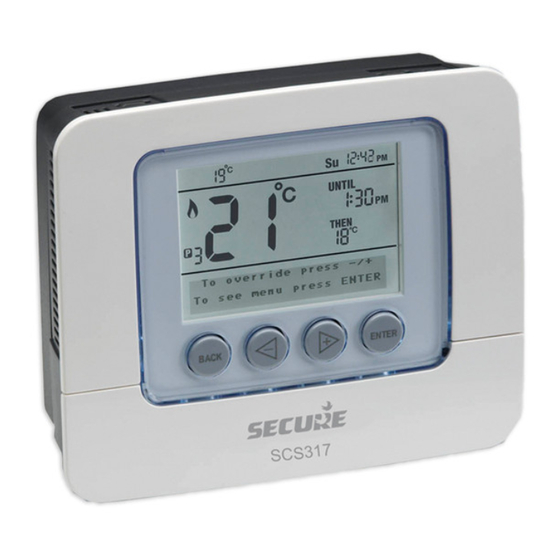

SCS311 or SCS317 Wireless Programmable
Room Thermostat
Programmable room thermostats are widely recognised as one
of the best ways in which to control central heating. The SCS311
& SCS317 programmable room thermostats have a large
display and intuitive user interface, making them easy to set up
and use. The SCS311 & SCS317 use a sophisticated time
proportional integral (TPI) algorithm for accurate temperature
control and energy efficiency. The SCS311 & SCS317 operate
within a wider Z-Wave RF network, as a secondary or inclusion
controller under any 3rd party gateway or other primary
controller. When operating in a network that includes a gateway,
it offers full access to the heating program whilst still maintaining
control of the devices within its heating sub system. The SCS311
& SCS317 use the Wake Up Command Class to synchronise
and exchange data with any 3rd party Gateway or Controller.
Installation and connection should only be carried out by a
suitable qualified person and in accordance with the relevant
wiring regulations.
Warning: Isolate mains supply before commencing installation.
1
Advertisement
Related Manuals for Secure SCS311
Summary of Contents for Secure SCS311
-
Page 1: Installation Instructions
Room Thermostat Programmable room thermostats are widely recognised as one of the best ways in which to control central heating. The SCS311 & SCS317 programmable room thermostats have a large display and intuitive user interface, making them easy to set up and use. - Page 2 TPI Temperature control software Thermostats using TPI (Time Proportional Integral) control algorithms will reduce the temperature swing that normally occurs when using traditional bellows or thermally operated thermostats. As a consequence, a TPI regulating thermostat will maintain the comfort level far more efficiently than any traditional thermostat.
- Page 3 SCS311 and SCS317. Once the SCS311 or SCS317 is successfully included / paired the SCS311 or SCS317 can be installed in its correct location. Avoid installing the SCS311 / SCS317 against or behind any large metal surfaces which could interfere with the radio signals.
- Page 4 Offer the plate to the wall in the position where the SCS311 / SCS317 is to be mounted and mark the fixing positions through the slots in the wall plate. Drill and plug the wall, then secure the plate into position.
-
Page 5: Menu Options
Standby or Holiday mode (Min 5˚C / Max 30˚C) In cold weather the heating will activate if the temperature being measured falls below this temperature setting Lower temperature limit This sets the lowest temperature setting the SCS311 or SCS317 will allow to be programmed Default setting 5˚C... - Page 6 Optimum start This calculates the amount of time the SCS311 or SCS317 may need to switch on in advance of the next target temperature setting in order to meet the requirement Tamper setting...
- Page 7 SCS311 or SCS317 will automatically associate it to Group 2 (switch association group). Note 2: If an associated node to SCS311 or SCS317 is excluded from the network, it will be removed from the Association Group it is stored in.
- Page 8 If the installer does not start the inclusion/exclusion process of the other node within 60s, or the SCS311 or SCS317 does not receive a response within 3 minutes of beginning exclusion with another node, then a failed outcome will be indicated.
- Page 9 Controller Shift the installer have 60s to initiate Learn Mode on the other controller for the controller shift to take place. (The SCS311 and SCS317 will timer out after 3min if a acceptable response is not received) If the operation is successful the SCS311 or SCS317 will become a secondary or inclusion controller depending on the new primary controller's capabilities.
-
Page 10: Installer Settings
Installer Settings There are a number of 'Installer Settings' that should be set on installation. These can be found under the 'SET UP MENU' on page 13 of the user instructions. Clock Format AM/PM or 24 Hour clock display - Default setting AM/PM Daylight saving On or Off - Default setting ON... - Page 11 Wake up (v2) Defines frequency, and to which node, the unit will send Wake up notification. SCS311 or SCS317 remains awake for 10 seconds after the last message, or until Wake up notifications received.
- Page 12 Schedule SET commands will change or update the program held within the SCS311 or SCS317. Parameter Name Value Comments Number of IDs supported 42/6 SCS311 - 6 schedules, 1 day SCS317 - 42 schedules, 7 days Start Time SCS311 - Start...
- Page 13 SCS311 or SCS317 Thermostat operating Reports either call for heat (active) or idle state When SCS311 or SCS317 sends a control message to the switch(es) in Association Group 2 it will send and unsolicited thermostat operating state report to the...
- Page 14 Group 2 - Central heating node controlled by the SCS311 or SCS317 will determine how best to communicate with the device. If thermostat mode Heat Mode is supported the control message will be sent as Thermostat Set HEAT and Thermostat...
- Page 15 Note 1: Unless otherwise stated all command classes are version 1 Note 2: “The Delta T” is the change between temperature readings required for the SCS311 or SCS317 to send temperature reports to the Gateway node in Association Group 1. Setting this to its lowest value, 0.1˚C, will provide more frequent updates but at higher cost to the...
- Page 16 If the display becomes frozen or scrambled simply press both the BACK and ENTER button simultaneously. Using this procedure will restore the SCS311 / SCS317 to the original factory settings, the Time and date will remain correct. BACK...
- Page 17 Specification – SCS311 / SCS317 Power Supply 2 x AA Batteries Contact type Micro-disconnection Wiring configuration Voltage free c/o contacts (SPDT) Temperature differential 0.5°C Temperature accuracy +/- 0.5°C to 21°C Standards EN 60730-2-9 Dimensions (WxHxD) 120mm x 100mm x 26.5mm Weight 0.3kg (approx)
- Page 18 Cewe Instrument AB Box 1006 611 29 Nykoping Tel: +46 8 600 80 60 Email: info@securetogether.eu Web Site: www.securetogether.eu Part Number P85161 Issue 1...
