Secure SRT322 User And Installation Instructions Manual

Battery powered wireless digital electronic room thermostat with receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
SRT322
User and Installation Instructions
Battery Powered Wireless Digital Electronic Room
Thermostat with receiver

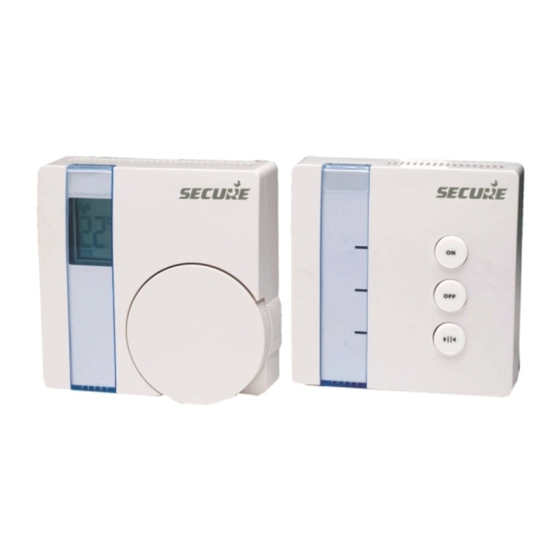

The SRT322 is a wireless electronic battery powered room thermostat that
uses interoperable two-way RF mesh networking technology to provide
optimum comfort with close control of the energy used to heat the home
without the need for additional wiring or unsightly cable runs.
The SRT322 will only operate when 2 x AAA batteries have been fitted and the
thermostat is installed and communicating with the ASR-ZW receiver unit.
INSTALLATION AND CONNECTION OF THE SRT322 SHOULD ONLY BE
CARRIED OUT BY A SUITABLY QUALIFIED PERSON.
