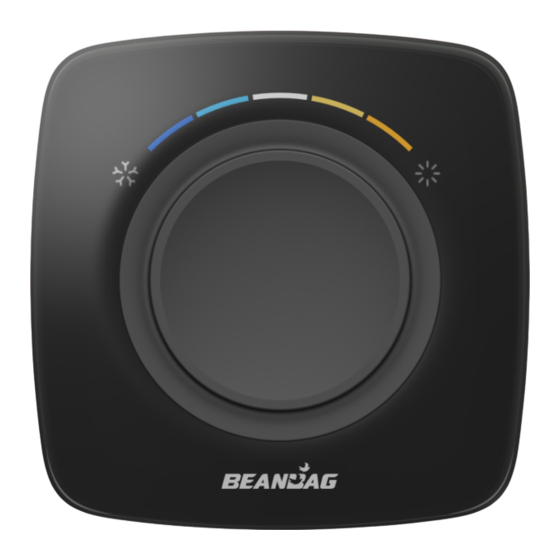

Secure Beanbag 500 Series Quick Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

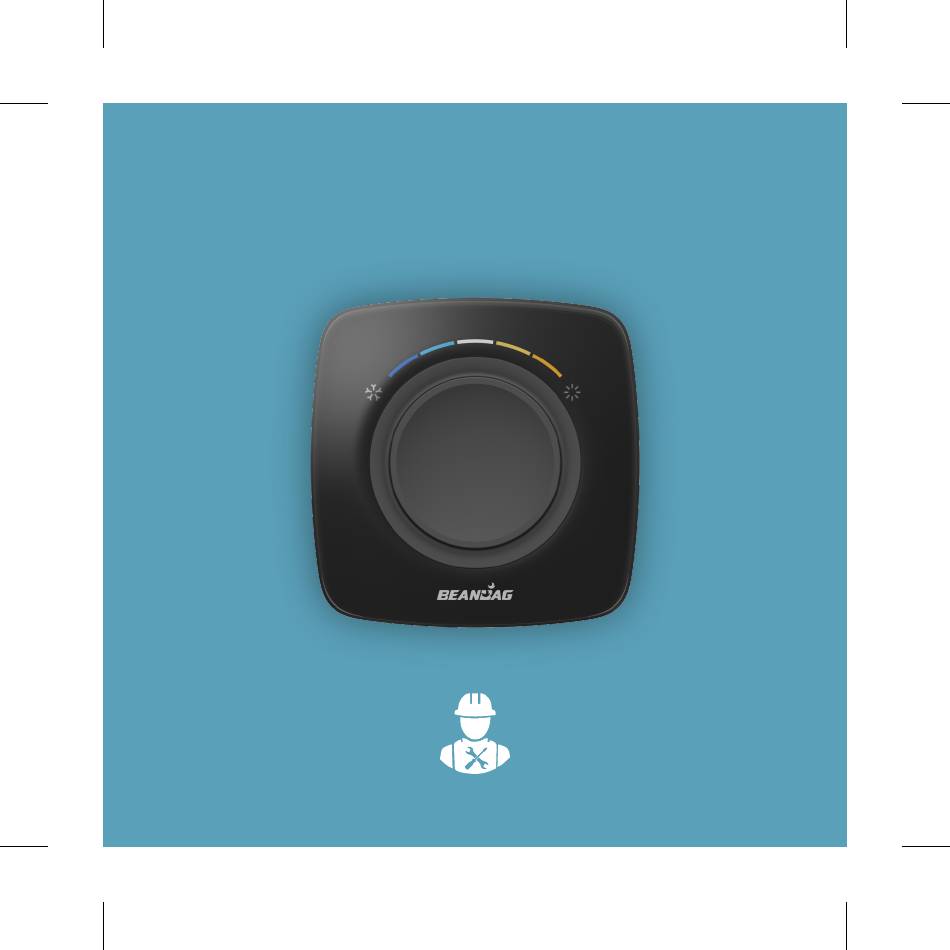

Beanbag Thermostat 500 series
Quick installation guide
Suitable for DX systems such as Split, Window and Cassette type ACs with display on IR remote

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beanbag 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Secure Beanbag 500 Series

Summary of Contents for Secure Beanbag 500 Series

  • Page 1 Beanbag Thermostat 500 series Quick installation guide Suitable for DX systems such as Split, Window and Cassette type ACs with display on IR remote...
  • Page 2 Prerequisites For installation For commissioning Tools / things you may need: To commission the system, you need: Router with internet Flat head Philips head Drill machine screw driver screw driver Smartphone Smartphone version 11.0 and above Lollipop (version 5.0) Wire stripper Plier Hammer and above...
  • Page 3 Prerequisites For network configuration Router specifications Configure a dedicated SSID for Beanbag Cool on router / AP Ÿ Choose an SSID - minimum 5 characters Ÿ Choose a password - minimum 8 characters Ÿ Set the SSID broadcast to Disabled or Hide for enhanced security Ÿ...
  • Page 4 Technical specifications Mechanical 96(H) x 96(W) x 28(D) Dimensions Case material PC FR Weight 104 gms Mounting Key-hole wall mount Power supply 90 -265 V, 50 – 60 Hz Environmental Impulse voltage rating Cat II 2.5 kV Enclosure protection IP30 Pollution degree Operating temperature range 0°C to +50°C...

  • Page 5: Installation

    Installation Disconnect power before installation...
  • Page 6 In the box M4 screws x2 Screw markings Thermostat...
  • Page 7 1. Identify mounting location...
  • Page 8 2. Mark out the mounting position using the screw markings...
  • Page 9 3. Drill the holes | insert the anchors | tighten the screws...
  • Page 10 4. Prepare cable and mount the conduit Click Conduit Cable Note: For safety reasons, we recommend placing the cable in a conduit.
  • Page 11 5. Make connections Ø 1-1.5mm Click Torque 0.4 Nm...
  • Page 12 6. Mount and lock the thermostat Click...
  • Page 13 7. Connect power plug to the cable...
  • Page 14 8. Power On and verify connections AC and Thermostat must be on the same supply source Note: In the un-commissioned state, If the device is suitably connected and powered On, all LEDs will glow steadily.
  • Page 15 9. Seal the conduit...
  • Page 16 Add Beanbag External Temperature Sensor 110 Note: Identify appropriate mounting location for the external temperature sensor.
  • Page 17 Technical specifications Size (mm) 72(H) x 72(W) x 20(D) Battery Two AAA size batteries (included) Up to 5-year battery life Weight 58 grams approx Comms. type Comms. range Up to 10 meters from the Thermostat (Range can vary depending on your home's construction, wireless interference and other factors) Operating...
  • Page 18 Mount and power On...
  • Page 19 3G/4G Commissioning...
  • Page 20 Download the Beanbag Cool mobile application Version 5.0 and above Version 11.0 and above...
  • Page 21 Commissioning Do’s and Don’ts Sign in to the app and follow the instructions to complete the commissioning process. However, please keep in mind the following, before/during the commissioning process: Before commissioning: 1. Ensure the device to be commissioned is on the same Wi-Fi network as that of the mobile. 2.

  • Page 22: User Functions

    User functions Comfort band LEDs Dial Indicators Cool Slightly cool Comfortable (default) Slightly warm Warm Select desired comfort band Desired band set...
  • Page 23 Turn On/O AC locally O state On state...
  • Page 24 Beanbag product variants Variants Description Beanbag thermostat 500, split/window AC, BT5000-000 230V AC, Wi-Fi, BLE Beanbag thermostat 600, FCU, 230V AC, wall mount, BT5100-000 Wi-Fi, BLE, On/O valve, with external BLE sensor Beanbag thermostat 600, FCU, 230V AC, wall mount, Wi-Fi, BLE, On/O valve, energy saver key tag BT5100-010 input, with BLE external sensor...

  • Page 25: Disposal Information

    Disposal information Observe local safety norms while disposing of the product and accessories at the end of their life to ensure that they do not enter the household waste stream and pollute land or water. In addition, ensure that the materials used for wrapping, handling and packaging of commodities are disposed of responsibly.
  • Page 26 Notes...
  • Page 27 Notes...
  • Page 28 Australia sales_australia@securemeters.com Secure Meters Ltd sales_middleeast@securemeters.com Pratapnagar Industrial Area Udaipur 313 003 India, SE Asia, Africa India sales_india@securemeters.com p: + 91 294 2492300 f: +91 294 2492310 www.securemeters.com BGX7 0 1 - 1 7 4 BGX701-174-R03...
