Timer Controlled Wall
Thermostat
Firmware Version : 1.3
Quick Start
A
This is a wireless Actor. For Inclusion and Exclusion press and hold both white buttons on the device
until the LED starts flashing. (green ->Inclusion, red -> Exclusion)
Please refer to the chapters below for detailed information about all aspects of the products usage.
Product description
The STP328 is a battery operated wall controller capable controlling a boiler actuator via a Z-Wave wireless
connection. The device can act both as primary controller or as secondary controller. The controlling and
switching behavior however can not be set wirelessly but with local control buttons only. The device has
multipe timers and is therefore able to execute even complex heating scenarios.

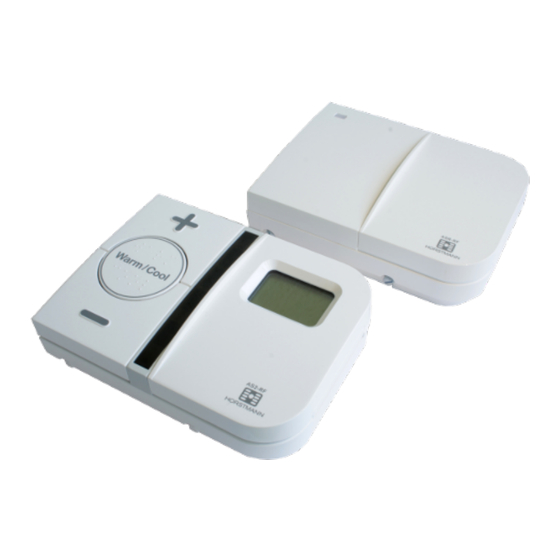

The STP328 is supplied in two parts. The actuator (SEC_SSR302) which is hard wired to the combi or
conventional system boiler and the thermostat which can be used in any normal domestic environment
within a typical 30 metre range without the need for any costly or disruptive wiring.
Installation Guidelines
Thermostat
The backplate of the device is to be used as a mounting plate for wall mounting. Open the backplate by
undoing the screws located on the underside and swing open the control panel. Use the backplate as
pattern and mark the drill holes, drill the holes and mount the backplate. The slots in the backplate will
compensate for any misalignment of the fixings. Reassemble the control panel with the backplate and swing
close it into closed position.
Boiler Actuator
Installation and connection of the receiver should only be carried out by a suitably qualified person.
(c) 2012 Z-Wave Europe GmbH, Goldbachstr. 13, 09337 Hohenstein-Ernstthal, Germany, All rights reserved, www.zwaveeurope.com - pp 1
