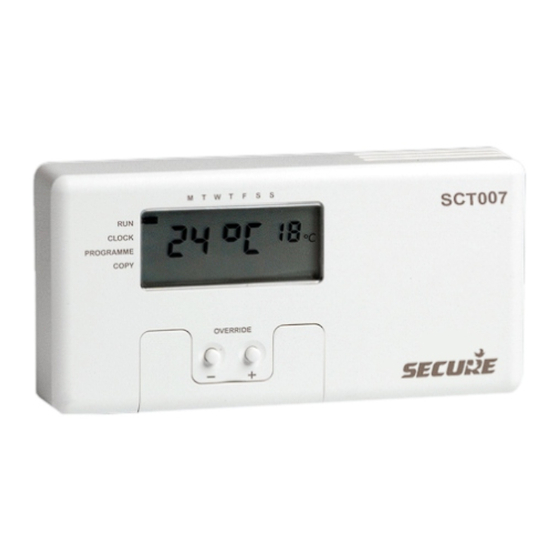

SCT007
INSTALLATION INSTRUCTIONS
7 Day Programmable Room Thermostat
The SCT007 can be programmed to create a
comfortable yet efficient environment in your home
INSTALLATION AND CONNECTION SHOULD ONLY
BE CARRIED OUT BY A SUITABLY QUALIFIED
PERSON AND IN ACCORDANCE WITH THE
CURRENT EDITION OF THE IEE WIRING
REGULATIONS
WARNING: ISOLATE MAINS SUPPLY BEFORE
COMMENCING INSTALLATION
1
Advertisement
Table of Contents
Related Manuals for Secure SCT007
Summary of Contents for Secure SCT007
-
Page 1: Installation Instructions
SCT007 INSTALLATION INSTRUCTIONS 7 Day Programmable Room Thermostat The SCT007 can be programmed to create a comfortable yet efficient environment in your home INSTALLATION AND CONNECTION SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON AND IN ACCORDANCE WITH THE... - Page 2 Choosing allocation for your SCT007 The SCT007 should be mounted on an internal wall approximately 1.5 meters from floor level and should be in a position away from draughts, direct heat and sunlight. Ensure that there will be enough space to the right of the...
-
Page 3: Direct Wall Mounting
To remove, press the release button located on the right hand side of the unit and gently pull the mounting plate away from the SCT007 body. The terminal cover on the mounting plate should now be opened. - Page 4 The terminal cover should now be secure. FITTING THE SCT007 There are many applications for the SCT007. Example circuit diagrams for some typical installations are shown below. These diagrams are schematic and should be used as a guide only.
- Page 5 FITTING THE SCT007 (CONT.) SCT007 Mains Supply COOLING LOAD SCT007 wired to control a cooling load. When necessary the SCT007 should be used in conjunction with a contactor. Programmer CENTRAL WATER HEATING SCT007 ROOM STAT MAINS SUPPLY ROOM STAT STAT...
- Page 6 If replacing an existing room thermostat with an accelerator heater, the neutral wire should be put into terminal 4 of the SCT007. The programmer should be left in situe to control Hot water, with Central heating programmed to be ON constantly with control being taken over by the SCT007.
-
Page 7: General Information
Explain how to operate the unit to the user and hand over the User operating instruction. The SCT007 is not user serviceable except for the replacement of batteries. SPECIFICATION Contact type Micro dis-connection (Voltage free) - Page 8 Cewe Instrument AB Box 1006 611 31 Nyköping Tel: +46 8 600 80 60 Email: info@securetogether.eu Web Site: www.securetogether.eu Part Number P84119 Issue Number 1...
