Installing the Server into a Telco Rack

007-6307-001
To install the chassis into a Telco-type rack, use two L-shaped brackets on either side of the chassis
(four total). First, determine how far follow the server will extend out the front of the rack. Larger
chassis should be positioned to balance the weight between front and back. If a bezel is included
on your server, remove it. Then attach the two front brackets to each side of the chassis, then the
two rear brackets positioned with just enough space to accommodate the width of the telco rack.
Finish by sliding the chassis into the rack and tightening the brackets to the rack.

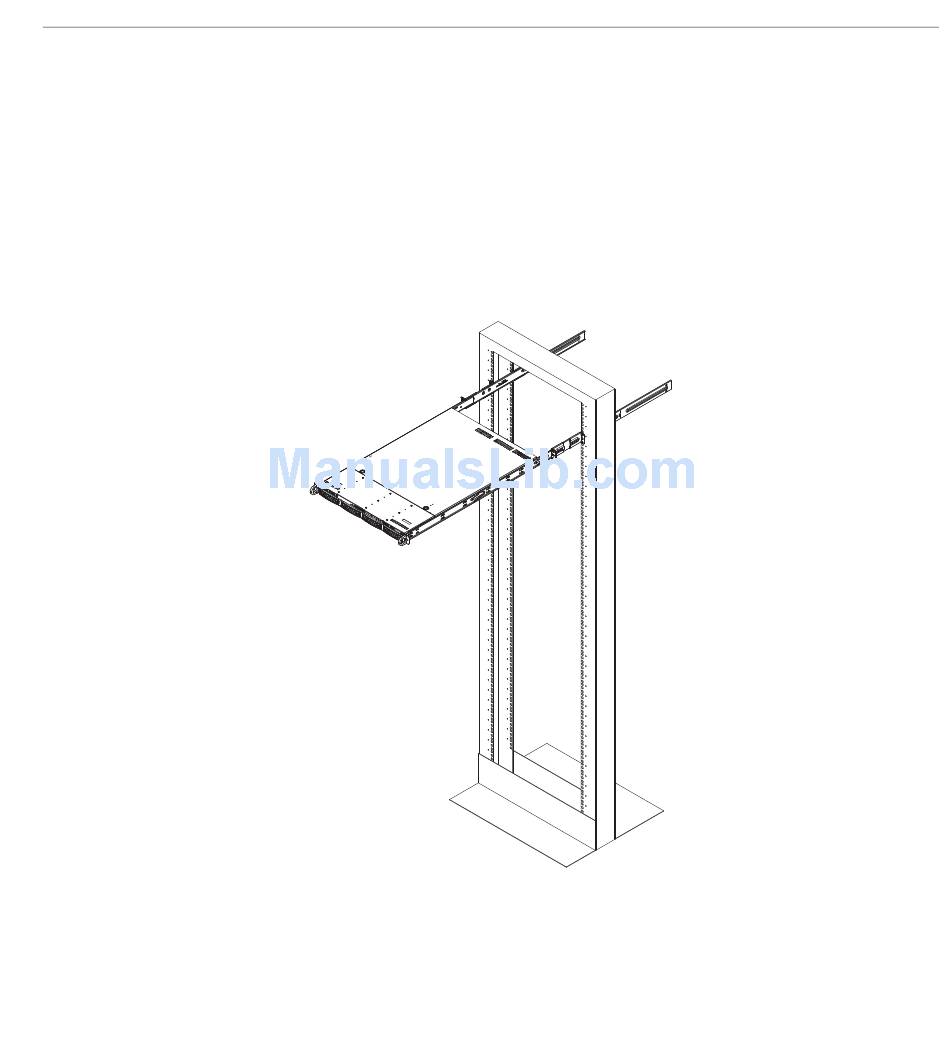

Figure 3-4
Installing the Server into a Telco Rack
