24" TURBO™ Cone & Grill Fan Installation Manual
The 24" Fan is shipped assembled.
Build fan framing out of 2" x 6" (50 x 150 mm) lumber (not supplied). The
required wall opening is provided in the chart below. See Figure 3.
Refer to the planning section (on page 6) for minimum dimension between
fans.
Dimension
(minimum)
24" Fan

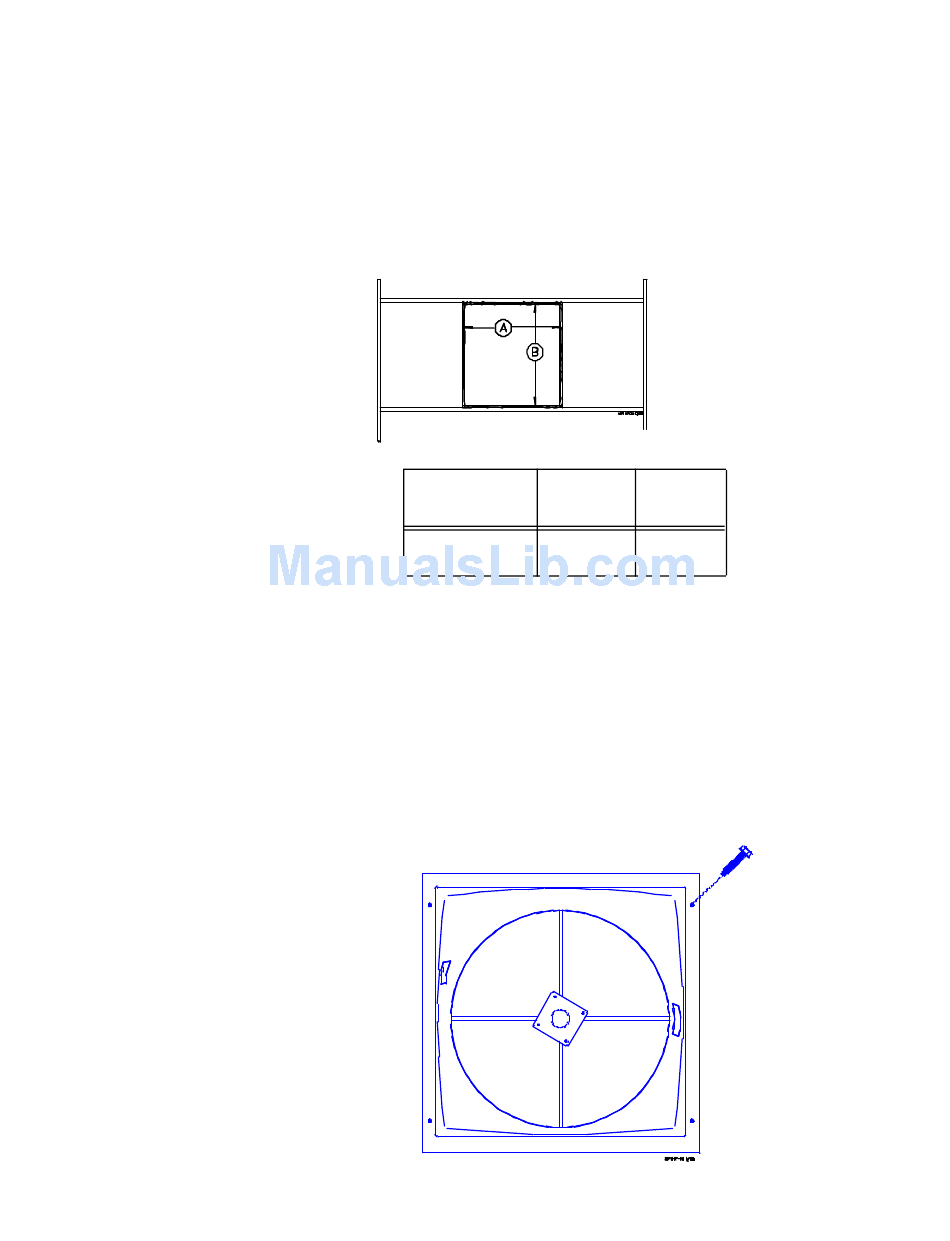

Figure 3. Framing Diagram (front view).
The Hardware Kit, supplied, includes (8) #10 screws to secure the fan to the
framed opening. Install (4) screws at the locations shown in Figure 4.
Locate the screws approximately 1/2" (12 mm) from the outside edge of the
Fan Shroud to avoid interference with the Shutter.
Do not allow the top or sides of the shroud to sag when securing to the wall.
The Shroud Flange should be secured square in the opening.
Figure 4. Fan installation (front view).
• Page 7

Fan Installation

A
28-1/4"
(71.8 cm)
B
29-1/4"
(74.3 cm)
