24" TURBO™ Cone & Grill Fan Installation Manual

Planning the Turbo Fan Installation

Carefully plan the installation. Dimensions are provided for the 2 Turbo Fan
with Cones (Figure 1) and without Cones (Figure 2). Be sure to allow enough
space to install fans without interfering with other fans or equipment.
Note: See page 7 for framed opening size.
B C
27.8" 6.5"
(70.8 cm) (16.5 cm)

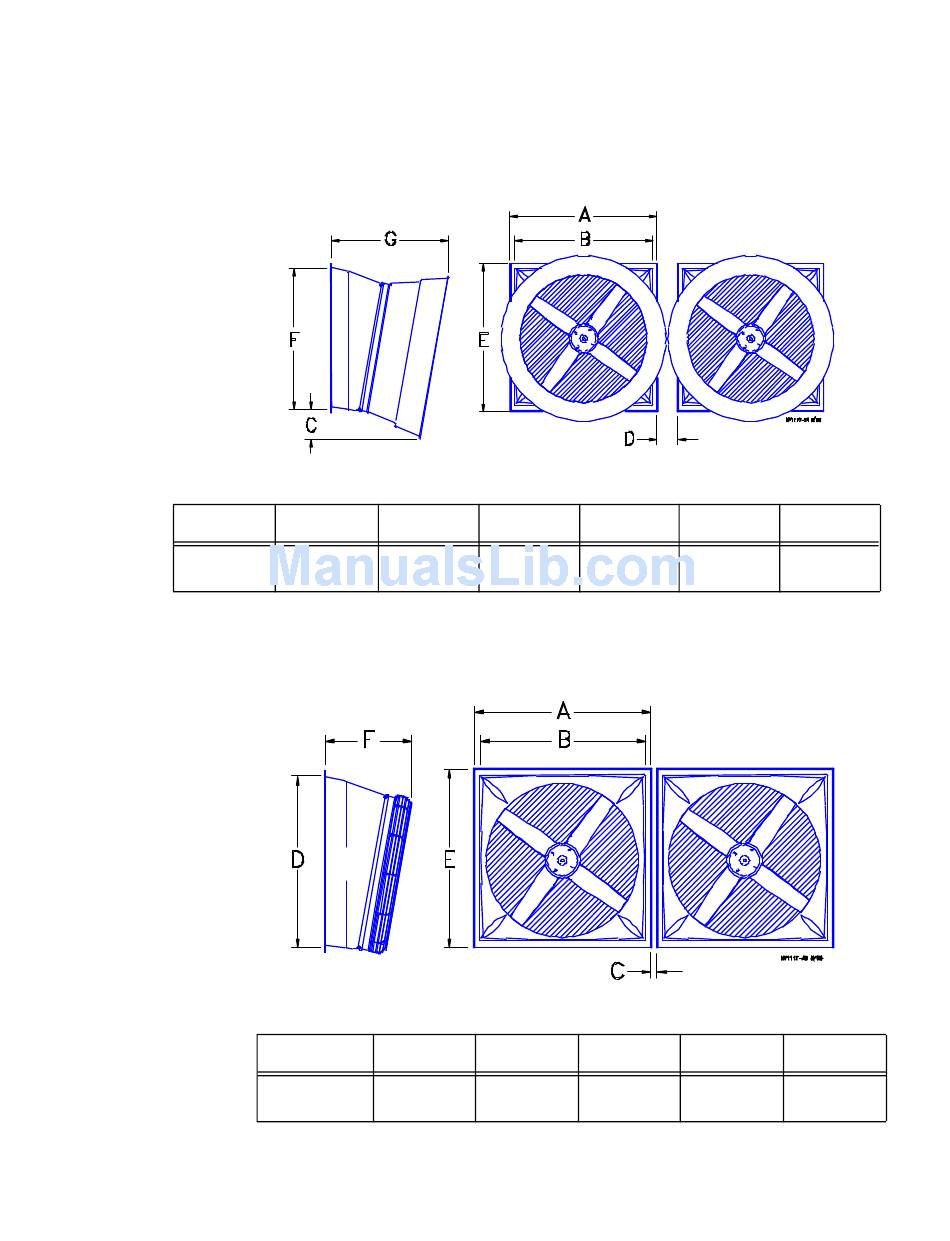

Figure 1. Planning and Layout Diagram with Cones (front view).
A B
31.0" 27.8"
(78.7 cm) (70.8 cm)
Figure 2. Planning and Layout Diagram without Cones (front view).
• Page 6
D E
2.5" 31.5"
(6.4 cm) (80.0 cm)
C D
0" (0 cm) 28.5"
minimum (72.3 cm)
F G
28.5" 32.8"
(72.3 cm) (83.3 cm)
E F
31.5" 25.6"
(80.0 cm) (65.0 cm)
