Chore-Time TURBO Installation Manual page 9

24" TURBO™ Cone & Grill Fan Installation Manual
Installations using Grills only, refer to Figure 7 for Shroud Grill installation.

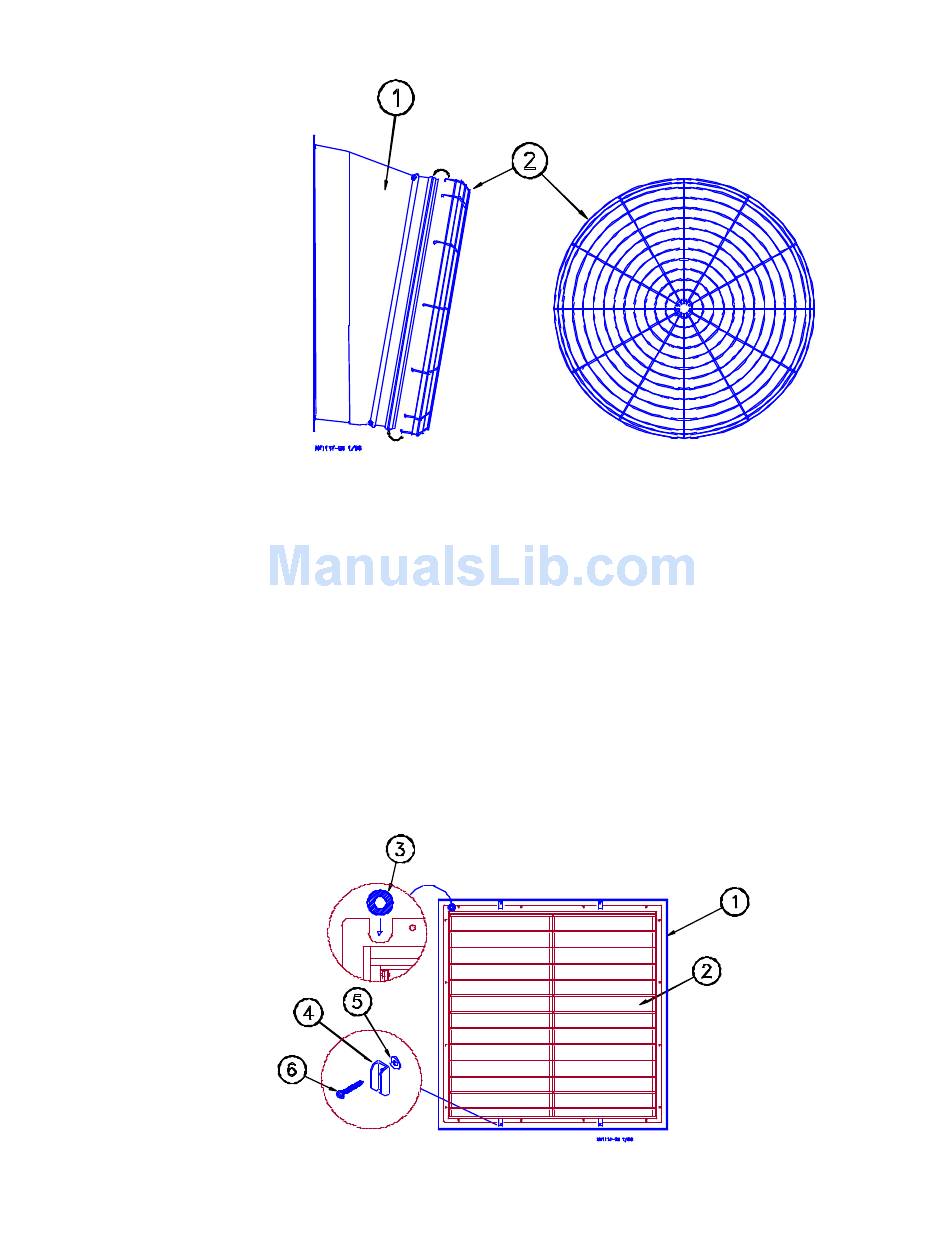

Figure 7. Shroud Grill Installation
Install the bottom (2) Shutter Brackets, as shown in Figure 8.
Position the Shutter, centered in the Fan Shroud, on the Brackets. Check the
Shutter for proper operation...the Shutter must be able to open and close
freely, without obstructions.
Install the remaining Shutter Brackets.
The 24" Fans use (4) Shutter Brackets, two on top, two on bottom.
Note: Make sure that the Shutter can be removed when the Brackets are
rotated 90°.
A slot is provided in the upper left-hand corner of the Shutter to route electrical
conduit/wires or SJO cord through. Install the Grommet, included in the
Hardware Package, in the slot to protect the electrical wire. See Figure 8.
Figure 8. Shutter Installation (front view).
• Page 9
K e y D e s c r i p t i o n
1 F a n S h r o u d
2 S h r o u d G r i l l
K e y
1
2
3
4
5
6
D e s c r i p t i o n
S h r o u d
Shutter
G r o m m e t
S h u t t e r B r a c k e t
N y l o n F l a t W a s h e r
2 " S . S . S c r e w
