24" TURBO™ Cone & Grill Fan Installation Manual
Cones may be installed to improve the performance of the TURBO Fans. If
Cones are not to be installed, proceed to the Grill installation section on page
9 (Figure 7).
Begin by positioning the entire flange of the Cone over the outer edge of the
Fan Shroud. Snap one edge of the cone flange into the groove on the Shroud.
See Figure 5.
Work the remainder of the cone flange into the shroud groove without allowing
any part of the Cone flange to slip off the Shroud.
Note: In cold weather it may be necessary to warm the Cone to room
temperature before installing it on the Shroud.

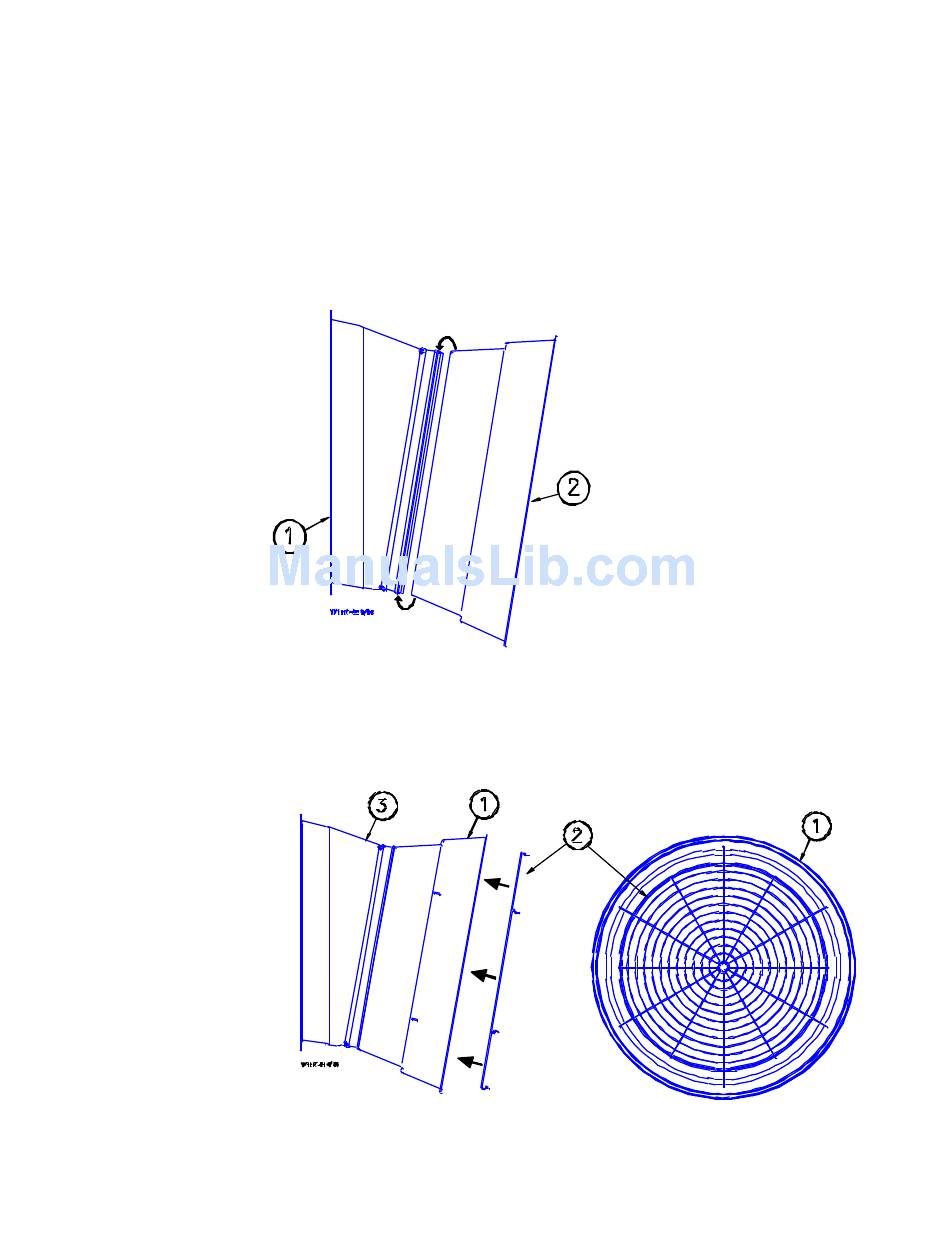

Figure 5. Cone Installation (side view).
Grills must be installed over the Shroud (Figure 7) or inside the Cone (Figure
6) to prevent injury from rotating blades.
Installations using Cones, refer to Figure 6 for Cone Grill installation.
Figure 6. Cone Grill Installation
• Page 8
Key D e s c r i p t i o n
1 F a n S h r o u d
2 C o n e
Key D e s c r i p t i o n
1 C o n e
2 C o n e G r i l l
3 F a n S h r o u d
