2 4 " D i r e c t D r i v e T U R B O Fan Parts List
24" TURBO™ Cone & Grill Fan Installation Manual

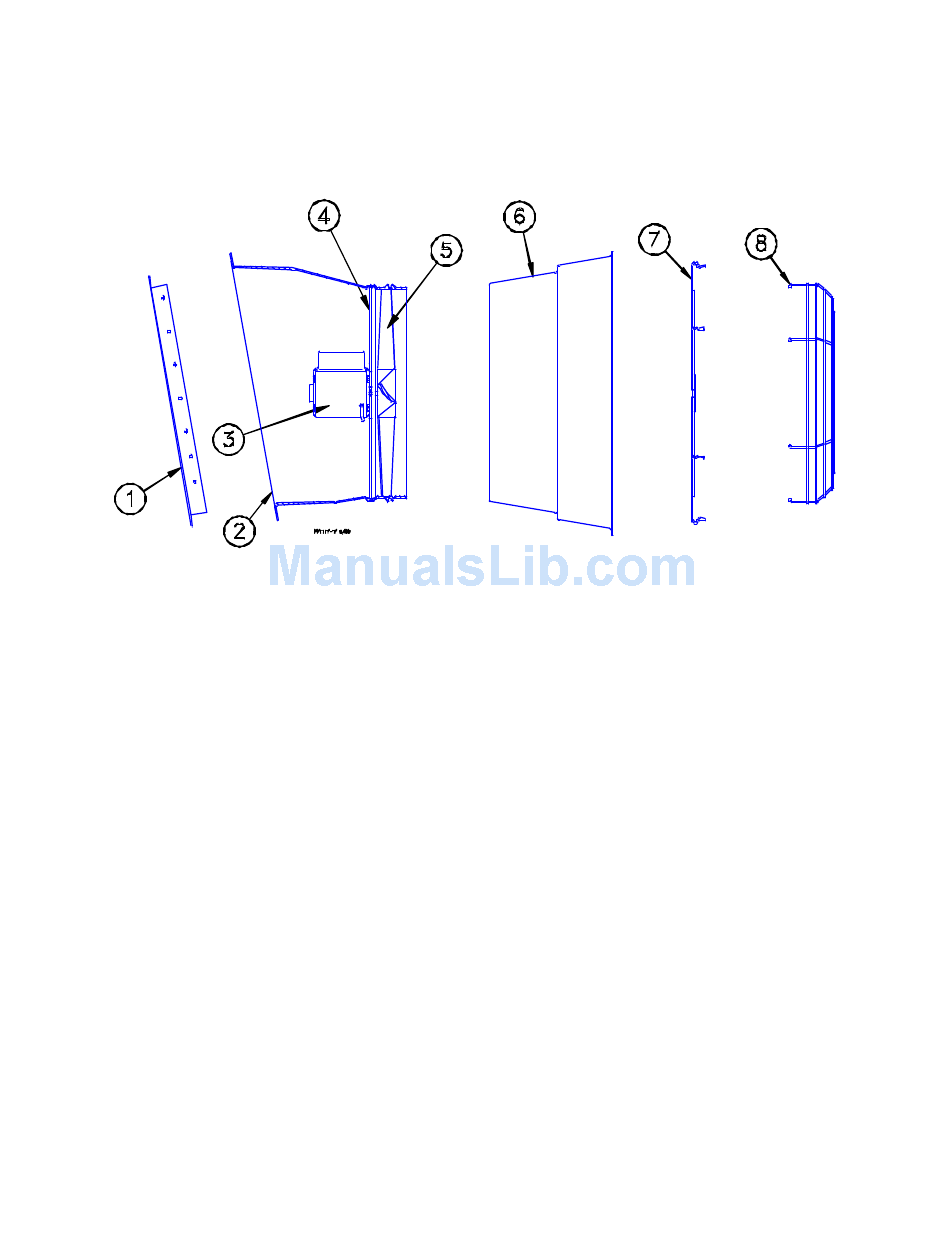

Item Description
1 Fan Shutter (aluminum)
2 Plastic Fan Shroud
3 Motor (1-Phs, 1/3 HP, 60 Hz, 230 V)
4 Motor Mount Weldment
5 Fan Blade (cast aluminum)
6 Fan Cone
7 Cone Grill
8 Shroud Grill
-- Grommet
-- Nylon Washer (for Shutter Clips)
-- Shutter Clips
-- 10-16 x 2" S.S. Hx. Wash. Hd. Screw
Items 2 - 5 may be ordered as an assembly under
Chore-Time Part No. 35680.
Items 2 - 5 and 8 may be ordered as a kit under Chore-Time
Part No. 36821-2420.
Items 1 - 5 and 8 may be ordered as a kit under Chore-Time
Part No. 36821-2421.
Items 2 - 7 may be ordered as a kit under Chore-Time Part
No. 36823-2420.
Items 1 - 7 may be ordered as an assembly under
Chore-Time Part No. 36823-2421.
• Page 11
Part No.
36816
35274
35661
38343
38341
35275
35338
35339
7256
4856
36560
36815
