Flush Mounting – Classic Bricks
1. Cut a wall hole using the template enclosed. Make sure
that all the required cables are available in the hole.
2. Unpack the plastic mounting box. Break out the cable
holes as necessary and make sure that the wall hole is
big enough for the box.
3. Wall up the mounting box making sure that the box is
aligned with the wall surface. Wait until the plaster
(mortar, mounting foam, etc.) sets.
4. Unscrew the front panel from the door intercom.
5. Connect the cables to the terminals or RJ connector as
described in the Electric Connection subsection.

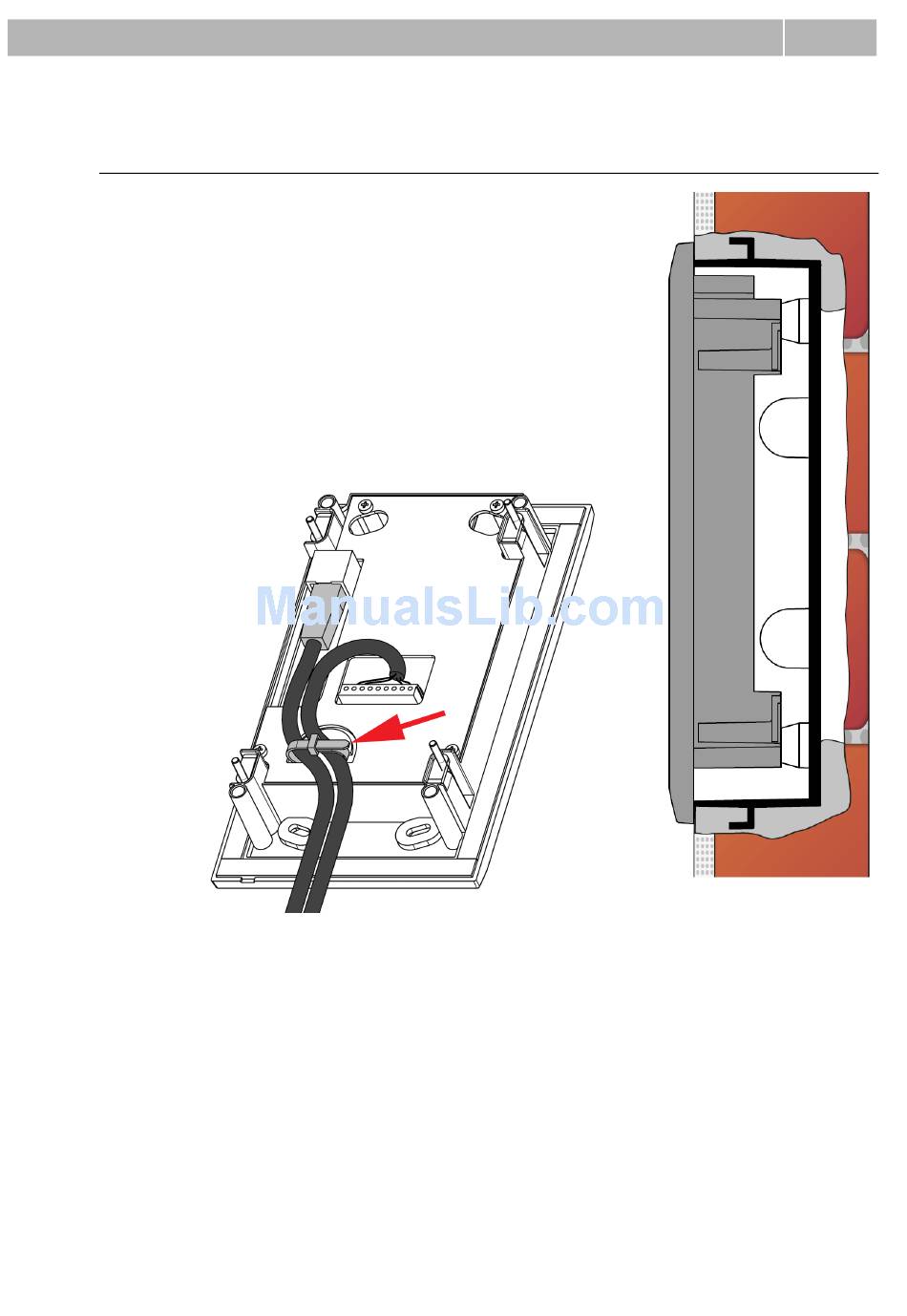

6. You can use the cable tie for connection as shown:
Suggested cable fixation
Mounting completion – after electric installation!
7. Insert the intercom in the mounting box in the wall.
8. Tighten the intercom with the stainless steel screws included in the delivery. As the
screw holes are oval, you can perfect the vertical position before tightening.
9. We do not recommend you to insert the button tags now.
10. Replace the stainless steel front panel fixing it with the stainless steel screws you
unscrewed in step 4 above.
Mechanical Installation
1.2
