GREEN/WHITE
This wire will supply a ( - ) 200mA pulse after the remote start shuts down. This
is typically used to re-lock the vehicle's doors if they unlock upon remote start
shutdown. It can also be used to pulse a door pin-switch wire to prevent the
vehicle's accessories from remaining on after remote start shutdown.
4
BLACK/YELLOW
Locate the vehicle's second starter (crank) wire at the ignition switch. (if equipped)
Verification: This wire registers voltage only in the start (crank) position of
the ignition switch.

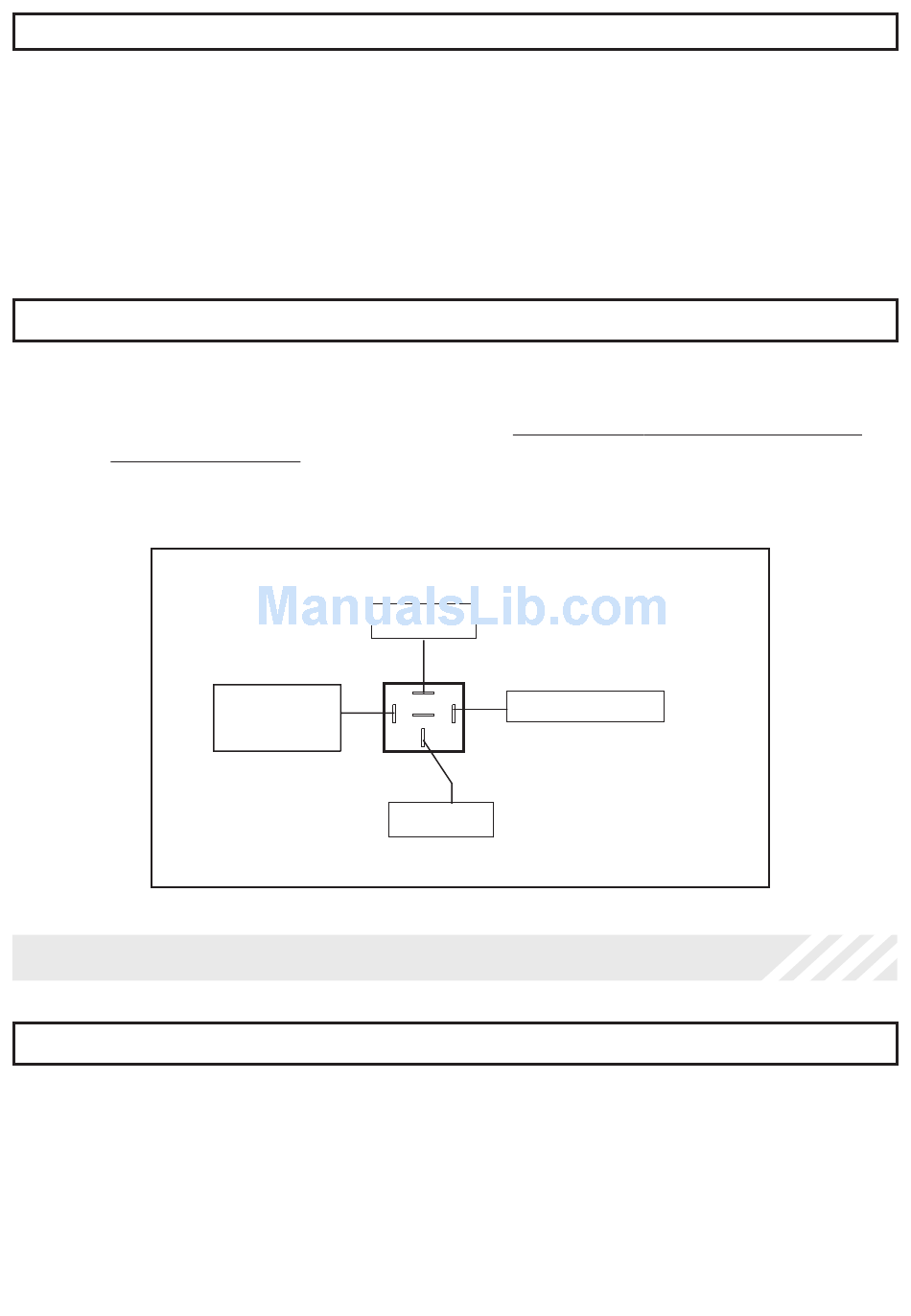

Connect the BLACK/YELLOW wire as shown in the diagram below. Use an SPDT
relay (not supplied).
2 Pin Lock Output Harness
1
BLUE
The door unlock output wire provides an output only while the remote start feature
is active.
10
F us ed +12 Volt
B attery S ource
J ump To P UR P LE
S tarter O utput
86
W ire From T he
C ontrol Module
To Vehicle's 2nd
PULSE AFTER SHUTDOWN ( - )
PULSE DURING CRANK ( - )
87
B LAC K /Y E LLOW P uls e
87a
During C rank W ire
85
30
S tarter W ire
UNLOCK ( - )
