5.8.2

Intermediate hose package connection

Note the polarity of the welding current!
Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity.
In this case, the welding current lead should be connected to the "-" welding current
socket, and the workpiece lead should be connected to the "+" welding current socket.
•
Observe the information from the electrode manufacturer!
Item Symbol
1
2
3
4
5
•
Insert the end of the hose package through the strain relief of the hose package and lock by turning to
the right.
•
Insert the plug of the welding current lead into the welding current connection socket and lock in place
by turning to the right.
•
Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
099-005320-EW501
22.05.2014
Description 0
Wire feed unit
Intermediate hose package
7-pole connection socket (digital)
Wire feed unit connection
Connection socket, "+" welding current
•
Standard MIG/MAG welding (intermediate hose package)
Connection socket, "-" welding current
Connection for welding current plug from intermediate hose package
•
MIG/MAG flux cored wire welding
•
TIG welding

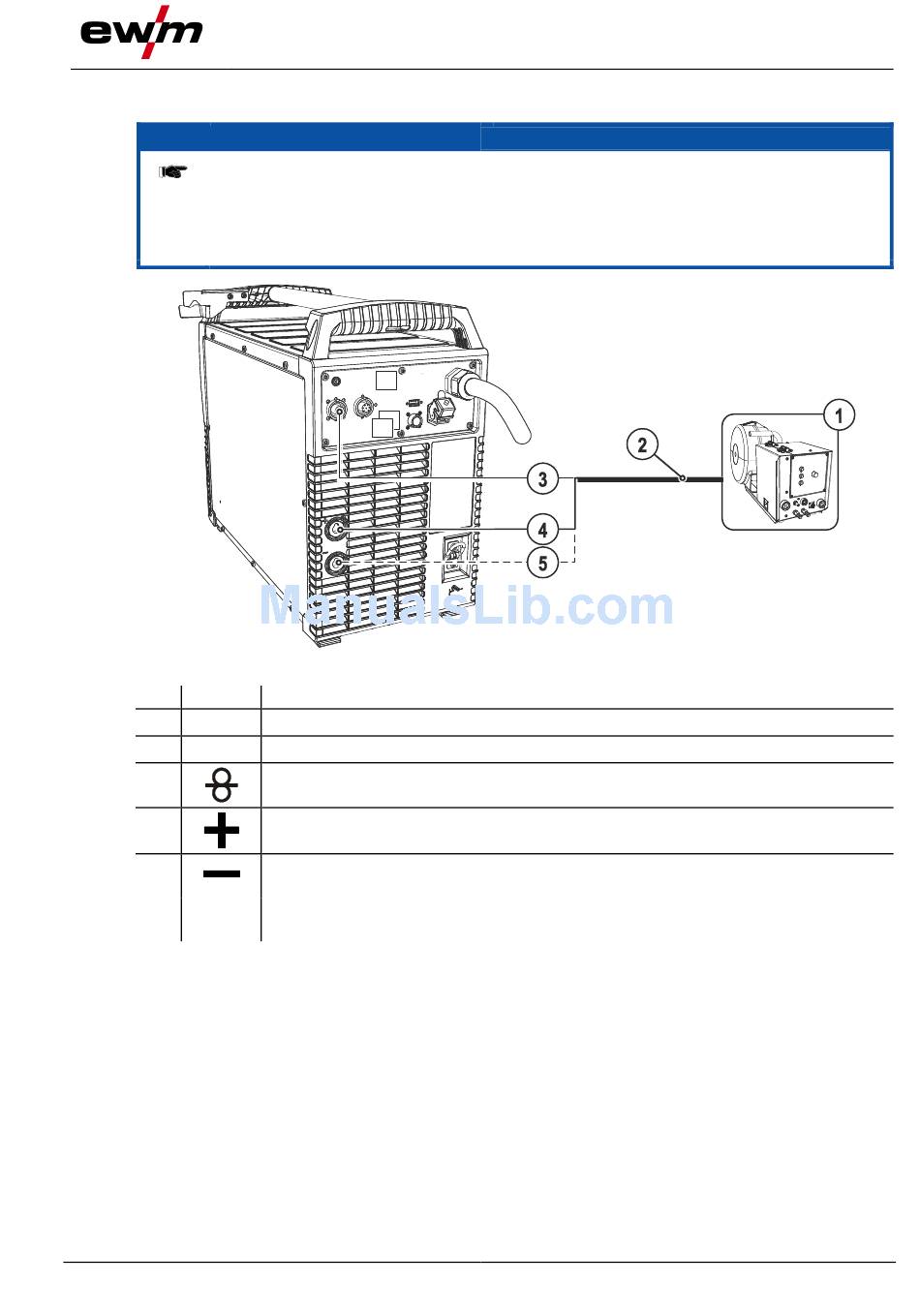

Connecting the intermediate hose package to the power source
NOTE
Figure 5-7
Design and function
27
