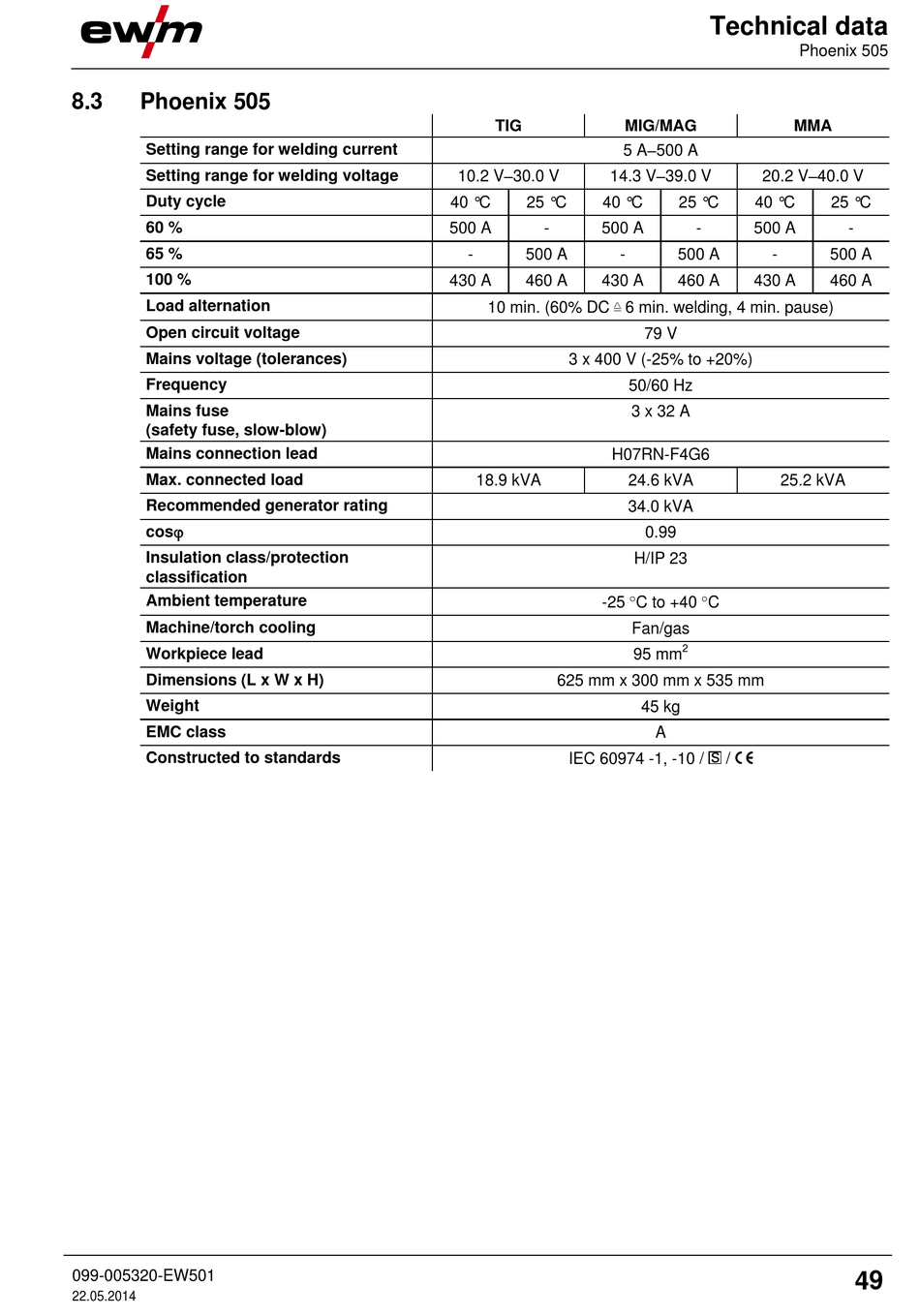

Phoenix 505

Setting range for welding current
Setting range for welding voltage
Duty cycle
60 %
65 %
100 %
Load alternation
Open circuit voltage
Mains voltage (tolerances)
Frequency
Mains fuse
(safety fuse, slow-blow)
Mains connection lead
Max. connected load
Recommended generator rating
cos
Insulation class/protection
classification
Ambient temperature
Machine/torch cooling
Workpiece lead
Dimensions (L x W x H)
Weight
EMC class
Constructed to standards
099-005320-EW501
22.05.2014
TIG
10.2 V–30.0 V 14.3 V–39.0 V
40 °C 25 °C 40 °C
500 A - 500 A
- 500 A -
430 A 460 A 430 A

10 min. (60% DC
3 x 400 V (-25% to +20%)
H07RN-F4G6
18.9 kVA
-25 C to +40 C
625 mm x 300 mm x 535 mm
IEC 60974 -1, -10 /
Technical data
MIG/MAG MMA
5 A–500 A
20.2 V–40.0 V
25 °C 40 °C
- 500 A
500 A -
460 A 430 A
6 min. welding, 4 min. pause)
79 V
50/60 Hz
3 x 32 A
24.6 kVA 25.2 kVA
34.0 kVA
0.99
H/IP 23
Fan/gas
2
95 mm
45 kg
A
/
Phoenix 505
25 °C
-
500 A
460 A
