5.11

MIG/MAG welding

5.11.1 Connection for workpiece lead

Note the polarity of the welding current!
Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity.
In this case, the welding current lead should be connected to the "-" welding current
socket, and the workpiece lead should be connected to the "+" welding current socket.
•
Observe the information from the electrode manufacturer!
Item Symbol
1
2
3
•
Insert the plug on the workpiece lead into the "-" welding current connection socket and lock.
099-005320-EW501
22.05.2014
Description 0
Workpiece
"-" welding current connection socket
•
MIG/MAG welding:
Connection socket, "+" welding current
•
MIG/MAG cored wire welding:
Design and function
NOTE

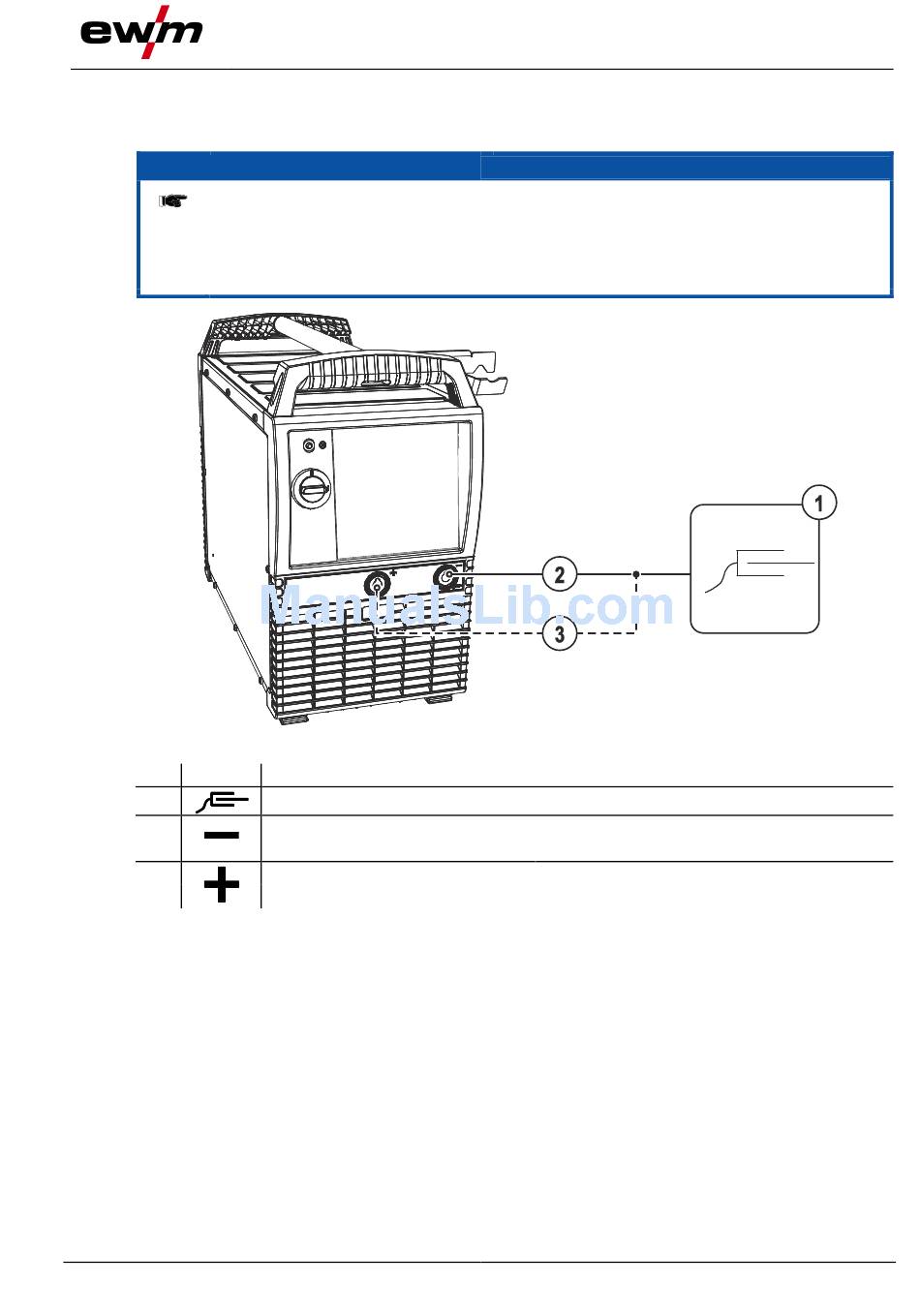

Figure 5-10
Workpiece connection
Workpiece connection
MIG/MAG welding
