Summary of Contents for Eiki LC-XN200

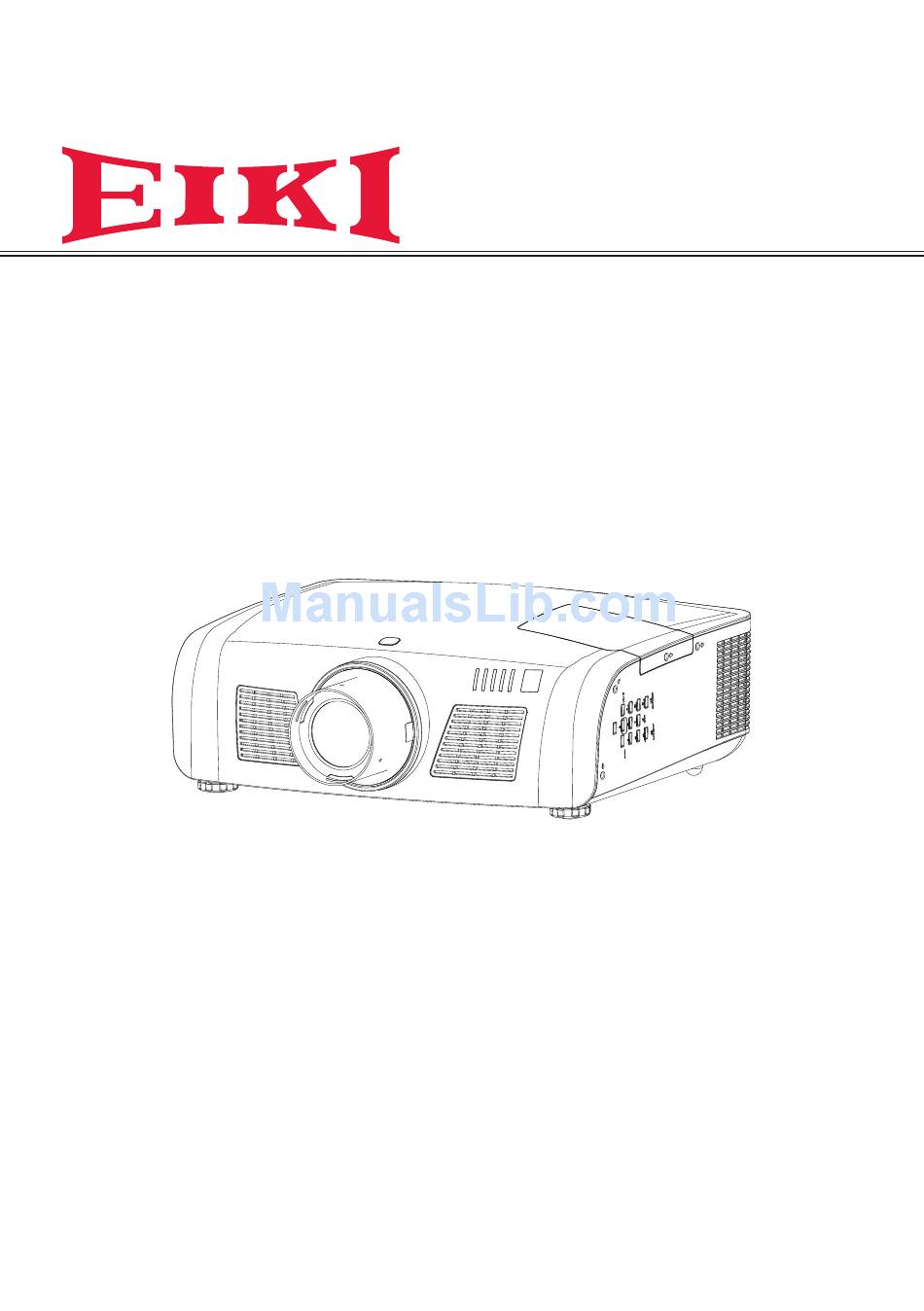

- Page 1 OWNER'S MANUAL LC-XN200 LC-WXN200 LC-XN200L* LC-WXN200L* *Projection lens is optional.
-
Page 2: Features And Design
Features and Design This Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. Simple Computer System Setting LAN Network Function The projector has the Multi-scan system to This projector is loaded with the wired and... -
Page 3: Table Of Contents
Contents Features and Design Computer input Contents Input select(Digital:HDMI/DVI/Network/ Safety Instruction Image Viewer/USB Autorun ) Air circulation Computer system select Installing the projector properly Auto PC adjustment Moving the projector Manual adjustment via PC Compliance Image Select Accessories Image adjust Part names and functions Screen size adjust Front... -
Page 4: Safety Instruction
Safety Instruction Please read this manual completely before Safety precautions installing and operating the projector. The projector provides many convenient features Caution: • The projector must be grounded. and functions. Proper operation may enable you • Do not expose the projector to to fully utilize the features and keep it in good raindrops or high humidity to avoid condition. - Page 5 Safety Instruction All the safety and operating instructions should be Do not install the projector near the ventilation duct of read before the product is operated. air-conditioning equipment. Read all of the instructions given here and retain them This projector should be operated only from the type for later use.
-
Page 6: Air Circulation
Safety Instruction Air circulation Installing the projector properly Vents in the cabinet are provided for ventilation. Be sure to use the projector properly in the To ensure reliable operation of the product and specified position. Improper positioning may to protect it from overheating, these openings reduce the lamp lifetime, and even cause must not be blocked or covered. -
Page 7: Safety Guide
Safety Guide Moving the projector When moving the projector, cover the lens cap and retract the adjustable feet to prevent Note: damage to the lens and cabinet. Put it into a carton with the lens facing upwards if the The lens of the projector is electric. projector is not in use for a long period. -
Page 8: Compliance
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : LC-XN200, LC-WXN200,LC-XN200L,LC-WXN200L Trade Name : EIKI Responsible party : EIKI International, Inc. -
Page 9: Accessories
Accessories Remote control with batteries Owner's Manual(CD) AC Power cord (AA or LR6) US Type x1 Euro Type x1 VGA cable Quick start guide Rubber Cap WiFi Dongle Zigbee Antenna Zigbee Dongle Rubber gasket... -
Page 10: Part Names And Functions
Part names and functions Front ① Lens release button ① ④ ② ⑤ ② Remote control receiver ③ Control panel ④ Indicators ⑤ Lamp cover ⑥ Projection lens ⑦ Dust cap (Prevent the internal element from dust when projector lens is not installed) ⑥... -
Page 11: Rear Terminals
Part names and functions Rear Terminals ① ② ③ ④ ⑥ ⑭ ⑬ ⑫ ⑪ ⑩ ⑤ ⑨ ⑧ ⑦ ① DVI-D ⑩ RS-232C Connect the DVI digital output signal to this When using RS-232C serial commands to control terminal. or operate the projector, connect the serial cable to this terminal. -
Page 12: Side Control Panel
Part names and functions Side control panel Indicators ① ⑩ ② ⑪ ⑦ ③ ⑫ ④ ⑧ ⑬ ⑭ ⑤ ⑨ AUTO SETUP ⑥ ① UP/DOWN/LEFT(VOL-)/RIGHT(VOL+) ⑨ ON/STAND-BY - Select item or adjust data in screen menu. Turn on or off the projector. - Select the image display area in digital zoom + mode. -
Page 13: Remote Control
Part names and functions Remote Control ② ① ④ DVI Select “DVI” as input source. ⑤ VGA ⑤ Select “VGA IN 1” or “VGA IN 2” as input source. ⑥ ③ -VGA IN 2 can not be selected ⑦ when using the VGA IN 2/ VGA OUT ④... - Page 14 Part names and functions Remote Control ⑲ ZOOM Enter image size adjust mode. ⑳ BLANK ⑮ ⑯ Temporarily close the image on the screen. ㉑ FREEZE Freeze the project image. ⑱ ㉒ SCREEN ⑰ ⑲ Select screen mode. ㉑ ㉒ ⑳...
-
Page 15: Install Remote Control Batteries
Part names and functions Install remote control batteries ② Install new batteries ③ Replace the ① Open the battery into the compartment. compartment lid. compartment lid. Two AA batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment. -
Page 16: Installation
● The brightness in a room has a great influence on image quality. It is recommended to limit the ambient lighting in order to get the best image. ● All measurements are approximate and may vary from the actual sizes. LC-XN200: 4:3 : (Diagonal:Inch) 17.62m(19.10m) -
Page 17: Lens Installation
Installation Lens installation Follow the instructions below to install the lens upon replacing or using the optional lens. For the specification of optional lens, contact your dealer. Removing the lens Lens release button 1 Shift the lens to the center with the lens shift function.(Page 28) 2 Turn off the projector, and unplug the AC power cord. -
Page 18: Lens Shift Adjustment
Installation Lens shift adjustment Projection lens can be moved from side to side and up to down. This function makes the positioning of images easy on the screen. The display position can be shifted upward up The display position can be shifted downward to 50% elevation of the display. -
Page 19: Connecting To Computer(Digital And Analog Rgb)
Installation Connecting to computer(Digital and analog RGB) Cables used for connection: ● VGA cable ● Serial crossover cable* ● DVI cable* ● BNC cable* ● HDMI cable* (*=Cables not supplied with the projector) VGA input/output VGA output RS232 output DVI output HDMI output RGBHV signal Serial... -
Page 20: Connecting To Video Equipment (Video, S-Video)
Installation Connecting to video equipment (Video, S-Video) Cables used for connection ● Video cable * ● RCA cable * ● BNC cable * (*=Cables not supplied with the projector) Composite video output Component video output S-video output S-Video cable cable cable Component video input Composite video input... -
Page 21: Connecting To Usb Device (Usb-A, Usb-B)
Installation Connecting to USB device (USB-A, USB-B) Connect the wireless network adapter to USB –A port Cables used for connection ● USB-A cable * ● USB-B cable * (*=Cables not supplied with the projector) USB-A output USB-B cable USB-A device or wireless network adapter USB-B input... -
Page 22: Connecting To Audio Equipment
Installation Connecting to audio equipment Cables used for connection: ● Audio cable* (*=Cables are not supplied with the projector) Audio output Audio cable (stereo) Audio input Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables. -
Page 23: Connecting The Ac Power Cord
Installation Connecting the AC power cord This projector uses nominal input voltages of 100–240V AC and it automatically applies to different input voltages. It is designed to work with a single-phase power system having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. -
Page 24: Basic Operation
Basic operation Turn on the projector 1.Complete peripheral connections (with a computer, VCR,etc.) before turning on the projector. 2. Connect the projector’s AC power cord into AC outlet. The POWER indicator turns red. 3. Press the POWER button on side control or on the remote control. -
Page 25: Turn Off The Projector
Basic operation Turn off the projector 1. Press the POWER button on side control or on the remote control, and “Power off?” appears on the screen. Power off ? 2. Then, press the POWER button again in 4 seconds. The POWER indicator starts to flash red, and the cooling fans keep running (You can select the level of fans’... -
Page 26: How To Operate The On-Screen Menu
Basic operation How to operate the on-screen menu The projector can be adjusted or set via the Side control on-screen menu, each main menu can be SELECT divided into several levels of submenus, and submenus are also divided into several levels of secondary submenus. -
Page 27: Menu Bar
Basic operation Menu bar Main menu Sub menu PC adjust ① Auto PC adj. ② Fine sync Total dots ③ Horizontal ④ Vertical Clamp ⑤ Display area H ⑥ Display area V Reset ⑦ Mode free Store ⑧ ⑨ Exit Move Next Next... -
Page 28: Auto Setup
Basic operation Auto setup This function is available just by pressing Side control FOCUS ZOOM the AUTO SETUP button on the side control or AUTO button on the remote control. The system then automatically performs various LENS SHIFT settings in the setup menu, including Input search and Auto PC adjust. -
Page 29: Keystone Correction
Basic operation Keystone correction If a projected image has keystone distortion, follow the steps below to manually correct the keystone distortion. KEYSTONE Press KEYSTONE button on the remote control. The keystone dialog box appears. Correct keystone distortion with buttons. Keystone adjustment can be stored. Horizontal / vertical keystone correction: Reduce the upper Reduce the lower... -
Page 30: Sound Adjust
Basic operation Sound adjust Side Control Panel Direct operation Volume Press the VOL +/- button on the side control panel VOL +/- button or on the remote control to adjust the volume. Remote control AUTO SETUP VOL +/- button Menu operation Sound menu 1 Press MENU button on the remote control to display the on screen menu. -
Page 31: Remote Control Operation
Basic operation Remote control operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the on-screen menu. FOCUS Remote control Press FOCUS button on the remote control to adjust the focus of the image. - Page 32 Basic operation BLANK Blank Press BLANK button to black out the image. To restore to normal, press the BLANK button again. The screen changes each time you press the “Blank” disappears after 4 seconds if there is button as follows: no other button operation.
-
Page 33: Input Select(Analog:vga In 1/Vga In 2/Rgbhv)
Computer input Input select(Analog:VGA IN 1/VGA IN 2/RGBHV) Direct operation Side control - Press INPUT button on the side panel to INPUT select VGA IN 1, VGA IN 2 or RGBHV. - Press VGA or RGBHV button directly on the remote control. -
Page 34: Input Select(Digital:hdmi/Dvi/Network/Image Viewer/Usb Autorun )
Computer input Input select(Digital:HDMI/DVI/Network/Image Viewer/USB Autorun ) Direct operation Side control - Press INPUT button on control panel or INPUT remote control to select HDMI, DVI, Network, Image Viewer or USB Autorun . - Press HDMI or DVI button on the remote Remote control control to select HDMI or DVI. - Page 35 Computer input When input source is from USB flash device connected to USB-A terminal, please Image Viewer select Image Viewer to project the images stored in USB flash device. When inserting USB flash device into USB-A terminal, the device icon will appear on the screen.
-
Page 36: Computer System Select
Computer input Computer system select The projector automatically tunes to various types of computers with its function of Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting. One of the following messages may appear when: VGA system menu When the projector cannot recognize... -
Page 37: Auto Pc Adjustment
Computer input Auto PC adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical to conform to your computer. Menu operation Auto PC adjustment 1 Press MENU button on side control panel PC adjust menu or remote control to display the on screen menu. -
Page 38: Manual Adjustment Via Pc
Computer input Manual adjustment via PC Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment is provided for you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted, which allows you to recall the setting for a specific computer. -
Page 39: Image Select
Computer input Image Select Direct operation Remote control Press IMAGE button on the remote control to select your required image quality. Menu operation IMAGE 1. Press MENU button to display the screen menu. Press to select the Image select icon and press OK button. 2. -
Page 40: Image Adjust
Computer input Image adjust 1 Press MENU button to display the screen Image adjust menu menu, press to select image adjust icon Image adjust and press OK button. Contrast Brightness Color temp. 2 Press to select the setting item, then press OK button, adjust dialogue box Green appears, press to set the value. -
Page 41: Screen Size Adjust
Computer input Screen size adjust The screen size can be reset to the value as you desire. Direct operation Remote control Press SCREEN button on the remote control to select your required screen quality. Menu operation 1 Press MENU button to display the screen menu. - Page 42 Computer input Digital zoom + After you select the digital zoom +, the on- screen menu will disappear, while the information on digital zoom + appears. You can press SELECT button on the side control panel or OK button on the remote control to zoom in the image size, and press ▲▼◄►to move the image horizontally and vertically.
-
Page 43: Input Select (Component, S-Video, Video )
Video input Input select (Component, S-video, Video ) Side control panel Direct operation Press INPUT button on the side control panel INPUT or press Component, Video or S-video button on the remote to select Component,Video or S-video. Remote control AUTO SETUP VIDEO S-VIDEO COMPONENT... -
Page 44: Video System Select
Video input Video system select 1 Press MENU button on the remote control to display the screen menu. Press button to select Input icon, then press OK button. 2 Press button to select Component, Video or S-video, and then press OK button. -
Page 45: Image Select
Video input Image Select Direct operation Remote control Press IMAGE button on the remote control to select your required image quality. IMAGE Menu operation 1. Press MENU button to display the screen menu. Press to select the Image Select icon and press OK button. 2. -
Page 46: Image Adjust
Video input Image adjust 1 Press MENU button to display the screen Image adjust menu menu, press to select image adjust icon Image adjust and press OK button. Contrast Brightness Color 2 Press to select the item and press OK Tint button, adjust dialogue box appears. -
Page 47: Screen Size Adjust
Video input Screen size adjust The screen size can be reset as you desire. Remote control 1 Press MENU button to display the screen menu. Press button to select screen icon and then press OK button. 2 Press to select the item you desire and then press OK button. -
Page 48: Setting
Setting Setting The projector has Setup menu that allows you to set the other various function described as follows. 1 Press MENU button to display the screen Setting menu menu. Press button to select Setting Setting icon and then press OK button. Language English 2 Press ... - Page 49 Setting OSD setting OSD setting menu This item is used to set the position, translucent Setting or background color of the sreen menu. OSD setting Menu position Translucent Background Color Menu position This function enables you to change the position for displaying the screen menu. Select Menu position, and press Select button.
- Page 50 Setting Keystone Keystone menu This function is used to reset the keystone Setting correction after the AC power cord is Keystone unplugged. Press to select the items Keystone Store H/V Keystone below: Corner Keystone Store....Store the keystone correction even when the AC power cord is unplugged.
- Page 51 Setting Logo (Logo and Logo PIN code settings) This function allows you to customize the screen logo with Logo select, Logo PIN code lock and Logo PIN code change functions. LOGO menu Setting Logo Logo select Default Logo PIN code lock Logo PIN code change Logo select This function decides on the starting-up...
- Page 52 Setting Ceiling This function is used to project the image from a ceiling-mounted projector. Press button on the remote control to select the item you desire. On..The image will be top/bottom and left/ right reversed. Auto..The projector automatically identifies its vertical or inverse state.
- Page 53 Setting Power management Power management menu For reducing power consumption as well Setting as maintaining the lamp life, the Power Power management management function turns off the projection Ready lamp when the projector is not operated for a Shut down certain period.
-
Page 54: Color
Setting Closed Caption Allows the subtitle to be displayed for the audio contents or other information. If the input source contains closed caption, you can enable this function and change the channel. Closed caption menu Closed caption Press to select OFF, CC1, CC2, CC3 or Setting CC4. - Page 55 Setting Security (Key lock and PIN code lock) Security menu This function allows you to use the Key lock and PIN code lock function to set the security for the Setting projector operation. Security Key lock Key lock PIN code lock PIN code change T h i s f u n c t i o n l o c k s t h e s i d e c o n t r o l a n d remote control buttons to prevent operation by...
- Page 56 Setting Cooling fast This function provides the following options in the cooling fans’ operation after turning off the projector. Off..Normal operation. On ..Faster and louder than Normal, cooling time is shorter. High land Enable to control the fan through the Setup menu. You can select the running speed of the fan according to the altitude of the location where the projector is installed.
-
Page 57: Information
Information Remote control code The projector is assigned 10 different remote control codes (Code 0-9). The remote control code should be the same one from the projector and the remote control. As setting the remote control as Code 7 to operate the projector, the remote control code on the projector also must be switched to Code 7. -
Page 58: Maintenance And Cleaning
Maintenance and cleaning WARNING TEMP indicator The WARNING TEMP indicator shows the state of the function which protects the projector. Check the state of the WARNING TEMP indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING Indicator TEMP indicator is blinking red. -
Page 59: Cleaning The Air Filter
Yes and reset the filter. Replacement Filter Type ORDER REPLACEMENT FILTER Replacement filter can be ordered through your dealer. When ordering a filter, give the following information to the dealer. Model No. of your projector: LC-XN200, LC-WXN200,LC-XN200L, LC-WXN200L. -
Page 60: Lens Cover
Maintenance and cleaning Lens cover When moving the projector or the projector is not under use for a long time, please put on the lens cover. Clean the projector lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the... -
Page 61: Replace The Lamp
Maintenance and cleaning Replace the lamp Indicator When the projection lamp of the projector Lamp icon reaches its end of life,the Lamp replacement When the projection icon appears on the screen and LAMP lamp of the projector indicator lights yellow. Replace the lamp with reaches its end of life, LAMP indicator a new one of the same type promptly. -
Page 62: Resetting The Lamp Counter
Maintenance and cleaning Resetting the Lamp Counter Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP REPLACE indicator stops lighting and the Lamp replacement icon disappears. 1 Press the MENU button to display the Setting On-Screen Menu. -
Page 63: Replacement Lamp Type
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No. of your projector: LC-XN200, LC-WXN200,LC-XN200L, LC-WXN200L LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. -
Page 64: Appendix
Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. - Make sure you have properly connected the projector to peripheral equipment. - Make sure all equipment is connected to the AC outlet and the power is turned on. - If the projector does not project an image when it is connected to a PC, restart the PC. - Page 65 Appendix Problems – Solutions Abnormal color - Check the input signal, color system, video system or PC system mode. - Make sure the blackboard(green) is not selected in the item “Image select”. Some information can’t be seen - Check the function of display. in the operation.
-
Page 66: Indicator And Projector State
Appendix Indicator and projector state Check the indicator to know about the state of projector. Indicator LAMP WARNING WARNING State of projector POWER LAMP REPLACE TEMP FILTER RED/GREEN GREEN YELLOW In power-off state (AC power cord not inserted). In normal working state. In standby state. -
Page 67: Compatible Computer Specifications
Appendix Compatible computer specifications This projector can receive all analog computer formats that DCLK less than 160MHz and digital computer formats that DCLK less than 140MHz. Detailed resolution and corresponding field frequency are listed in the following table. Field Field Input Signal Input... -
Page 68: Menu Tree
Appendix Menu Tree HDMI Input/VGA Input//Component Input/S-video Input/Video Input/ RGBHV Input/Network Input/Image Viewer Input/USB Autorun Input Sound Volume 0-24 HDMI Input On/Off Mute VGA IN 1 VGA IN 2* * VGA IN 2 can't be Component selected when using S-video the VGA IN 2/VGA OUT terminal as VGA OUT. -
Page 69: Sharpness
Appendix Component Input/S-video Input/Video Input System System Auto Auto (Component) (Video/S-video) 1080i 1035i SECAM NTSC 720p NTSC 4.43 575p PAL-M 480p PAL-N 575i 480i Screen Normal Image select Dynamic Full Normal Wide Cinema Custom Aspect Blackboard (Green) Scale H Red/Blue/Yellow/Green Colorboard Scale V User Image... - Page 70 Appendix HDMI Input/VGA Input/Component Input/S-video Input/Video Input/ RGBHV Input/Network Input/Image Viewer Input/USB Autorun Input Network Setting Network setting Language 20 languages provided On/Off DHCP OSD setting Menu position On/Off Translucent IP address Background Color Subnet On/Off Auto setup Input search Gateway On/Off Auto PC adj.
-
Page 71: Technical Specifications
Net Weight 10.6Kg (with Lens) / 9.69Kg (without Lens) Adjustable foot 5˚ LCD resolution LCD system 0.79" TFT, active matrix, 3-panel (LC-XN200, LC-XN200L) 0.75" TFT active matrix, 3-panel (LC-WXN200, LC-WXN200L) LCD resolution 1024X768 (LC-XN200, LC-XN200L) /1280X800(LC-WXN200, LC-WXN200L) Compatible signals Color standard PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N... - Page 72 Appendix Short Lens Short Zoom Lens Standard Lens Long Zoom Lens Long Zoom Lens Part No. AH-24721 AH-24711 AH-24741 AH-24771 AH-24781 Code LNS-W21 LNS-W20 LNS-S20 LNS-T20 LNS-T21 Power or Manual Fixed Power zoom Power zoom Power zoom Power zoom Iris (F) 1.8-2.3 1.74-2.37 1.82-2.34...
-
Page 73: Configurations Of Terminals
Appendix Configurations of terminals VGA IN 1/VGA IN 2/VGA OUT (Analog) Terminal: Analog RGB (D-sub 15 pin) Red (Input/Output) ----- Green (Input/Output) Ground (field synchronizing) Blue (Input/Output) Ground ----- DDC data Horizontal synchronizing Ground (line synchronizing) (compound sync.) Input/output Ground (red) Vertical synchronizing Input/output Ground (green) DDC Clock... -
Page 74: Content Of Hazardous Substances And Elements
Appendix Content of hazardous substances and elements Hazardous substances and elements Name of parts Cr6+ PBDE Plastic parts ○ ○ ○ ○ ○ ○ Metal parts ○ ○ ○ ○ ○ ○ Body Optical parts × × ○ ○ ○ ○... -
Page 75: Pin Code Memorandum
Appendix PIN code memorandum Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. Factory default PIN code 111* PIN code lock Factory default PIN code 111* Locking startup-animation PIN code... -
Page 76: Network Control Instructions
Network Control Instructions LAN control Function : PC controls projector via LAN. Preparation: 1. Equipments: PC, projector, LAN cables 2. Connection procedures: Connect the projector to routers or switches of the LAN by direct or cross cable. If it fails to connect PC and projector by parallel cable, please switch to cross cable as suggested. - Page 77 Network Control Instructions 4 Check IP address Enter network menu and select network information. Press OK button to check IP address. 5 Input the IP address into the address bar. Format: http:// IP address/. (If wireless network is used, please open the wireless connecting in computer, find the SSID displayed in "Network information", then input the IP address obtained from "Network information"...
- Page 78 Network Control Instructions Projector status and control: For the current view state and control of the projector. E-mail setting: Configure your email, so that the projector failure, to send a notification email. Security setting: The user can modify the login password.
-
Page 79: Wireless Lan Control [Projectorme]
Network Control Instructions Wireless LAN control [ProjectorMe] Function: Project PC images on the screen using wireless network. Wieless netwok setup: 1. Inset the supplied WIFI dongle into the USB-A port. 2. Please find "Networe Display" and click "connect". - Page 80 Network Control Instructions ProjectorMe installation procedure: 1. Type the Wireless IP address of the projector in the address bar of the web browser. (Please find the IP address from the Network information in the OSD.) Note: ProjectorMe only works on wireless network. 2.
- Page 81 Network Control Instructions 5. A message "Do you want to allow the following progam to make changes to this computer?" wil apear. Click "Yes". Then click "Next". 6. Click "I Agree". 7. Click "Next". 8. Click "Next".
- Page 82 Network Control Instructions 9. Fill the name and password in the blank area, select the language, then click "Next". 10. Click "Install" and wait till the installation has been done. 11. Click "Finish" to reboot the PC. (End of insallation procedure)
- Page 83 Network Control Instructions Operation procedure: 1. Select "Network" as the input source on the projector. 2. Double-click "ProjectorMe" to launch the program. 3. Click "OK". 4. A message "Do you want to allow the following program to make changes to this computer?" will appear.
- Page 84 Network Control Instructions 8. Click "All", and then click "OK' to project the PC image on the screen. Note: If fail to connect, please disable the firewall settings and try again. 9. Click the cross button in the to right corner, then click "OK" to quit the program. (End of operation pocedure)
- Page 85 Network Control Instructions Icons in the tool bar ① ⑥ ② ③ ④ ⑤ ① Projector Search. ② Play / Pause Play or pause the selected image. ③ Choose the capture mode Set the capture mode from "FullScreen", "FixedSize" or "Alterable". ④...
-
Page 86: Zigbee Networking Instructions
ZIGBEE Networking Instructions ZIGBEE Networking Function : Control the projector, KeyStone, LenzShift, Blending. Preparation: Equipments: PC 1 pcs, projector 1 pcs, ZIGBEE module 1 pcs, ZIGBEE antenna 1 pcs. Computer configuration ■Note: For the first networking, you have to complete the PC configuration before power-on the projector. - Page 87 ZIGBEE Networking Instructions 4. Check COM port, click "My Computer", and click right button to select "Manage" as shown below: Open "Device Manager" to view "Port" item. A line of "Silicon Labs CP210x USB to UART Bridge (COM5)" appears. The COM5 is the port we are going to use. 5.
- Page 88 ZIGBEE Networking Instructions Enter any number from "1-200" in "Main Device ID", for example 5, as shown below. Click "Write ID". Click "Networking. Next, click "Y", as shown below:...
- Page 89 ZIGBEE Networking Instructions 6. Power on the projector, press remote control Network Network setting or side control to find “Zigbee Setting” and Network information press “OK” to enter. Zigbee setting Exit Back Move Next Next Network Zigbee setting Zigbee mode PAN ID Join Zigbee network Exit...
- Page 90 ZIGBEE Networking Instructions After joining the network, a code will appear under "ID" item under the PC window, "28351" as shown below: 7. After successful networking, double click "28351" to perform such operations as "Standard, KeyStone, LenzShift and Blending", as shown below: 28351 Standard: ...
- Page 91 ZIGBEE Networking Instructions LenzShift: Control the projector lens shift upwards /downwards/leftwards and rightwards. Lens focus +/- adjust. Lens zoom +/- adjust. 28351 28351 28351 28351 28351 28351 28351 28351 28351 Note: ● Lens Shift (slowly). Lens Shift (quickly).
- Page 92 ZIGBEE Networking Instructions Blending: This function is used to set the items for screen blending. Preparation: Equipments: PC 1 pcs, the same model projector 2(n) pcs, ZIGBEE module 1 pcs, ZIGBEE antenna 2(n) pcs. 28351 Pattern HxV: Indicates the number of projectors on Position H and Position V. For example: 2 projectors on Position H and 1 projector on Position V.
- Page 93 ZIGBEE Networking Instructions Gamma: It indicates the brightness and line fuzziness of the integration band. The value ranges from 0 to 7 subject to adjustment. The recommended value is 4. R/G/B: It indicates that the brightness of R, G and B may be adjusted. The value ranges from 0 to 1023. The greater the value is, the brighter it will be.
- Page 94 ZIGBEE Networking Instructions 2 Double click "28531" in "ID" column, a image appears as shown below. Select "Blending" → "Set Splicing Number" select "2 projectors on Position H and 1 projector on Position V" → "Set Local Position No" choose to "1" → Check "Welding line" to "on"→Set "Width of H-integration" to 300(the default value of horizontal integration band width is 300, and the default value of vertical integration band width is 200.
- Page 95 ZIGBEE Networking Instructions 4. After the above operations completed, both projectors display a integration band frame, as shown below: 5. Regard the center of the projection screen as standard. Adjust the central integration line between these two projectors to the center line of such projection screen, as shown below: Red line refers to center of the projection screen Center fusion line Center line of the projection screen...
- Page 96 ZIGBEE Networking Instructions 6. Adjust the lens up/down/left/right, focus and zoom under “LenzShift” , as well as KeyStone and corner under “KeyStone” of the two projectors to achieve a integration band registration of two projectors, as shown below: 7. Click "Welding line" to "off" → "Save and refresh basic fusion data" as shown below. 28351 42852...
- Page 97 ZIGBEE Networking Instructions 8. Input signal and you may see the effect after blending by two projectors, as shown below: Note: After successful networking, there is no need to reset while use the projector after power is cut off. You only need to open file "projectorWLAN.exe". How to disconnect ZIGBEE.
- Page 98 U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel: 800-563-3454 (705)-527-4084 U.S.A. Fax: 800-567-4069 (705)-527-4087 Tel: 800-242-3454 (949)-457-0200 E-Mail: canada@eiki.com...
